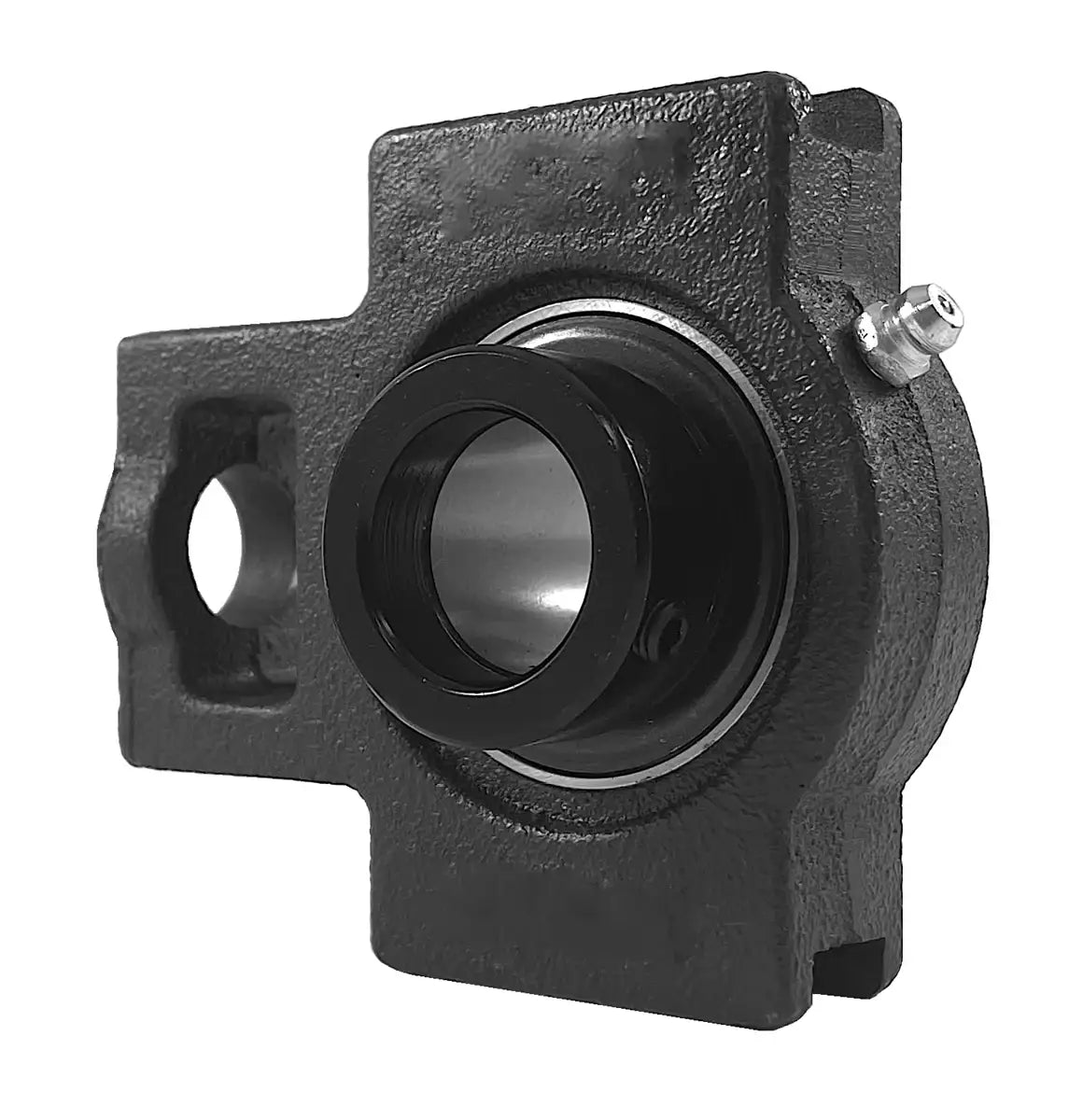

HCST209 Bearing | 45mm Eccentric Locking Take-Up Bearing

HCST209 bearing is a 45mm bore normal-duty take-up bearing that utilizes an eccentric locking collar to secure to a 45mm shaft. HCST209 take-up bearings are designed for take-up frames, which creates an assembly that maintains and adjusts tension for conveyor and drive systems. Our superior HCST209 bearing with a 45mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our HCST209 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Our HCST209 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our HCST209 bearings, and we will be happy to assist you!

HCST209 Take-Up Bearing Dimensions

• Part #: HCST209
• Shaft Diameter (d): 45mm
• Dimension (O): 19.0mm
• Dimension (G): 16.0mm
• Dimension (P): 83.0mm
• Dimension (Q): 49.0mm
• Dimension (S): 29.0mm
• Dimension (B): 83.0mm
• Dimension (K): 17.5mm
• Dimension (E): 101.6mm
• Dimension (A): 117.0mm
• Dimension (W): 144.0mm
• Dimension (J): 49.0mm
• Dimension (L): 35.0mm
• Dimension (H): 87.0mm
• Dimension (Bi): 56.3mm
• Dimension (N): 21.4mm
• Dimension (M): 21.4mm
• Dynamic Load Rating (kN): 31.85
• Static Load Rating (kN): 20.80
• Bearing Insert: HC 209
• Housing Number: ST 209
• Weight (kg): 2.6
