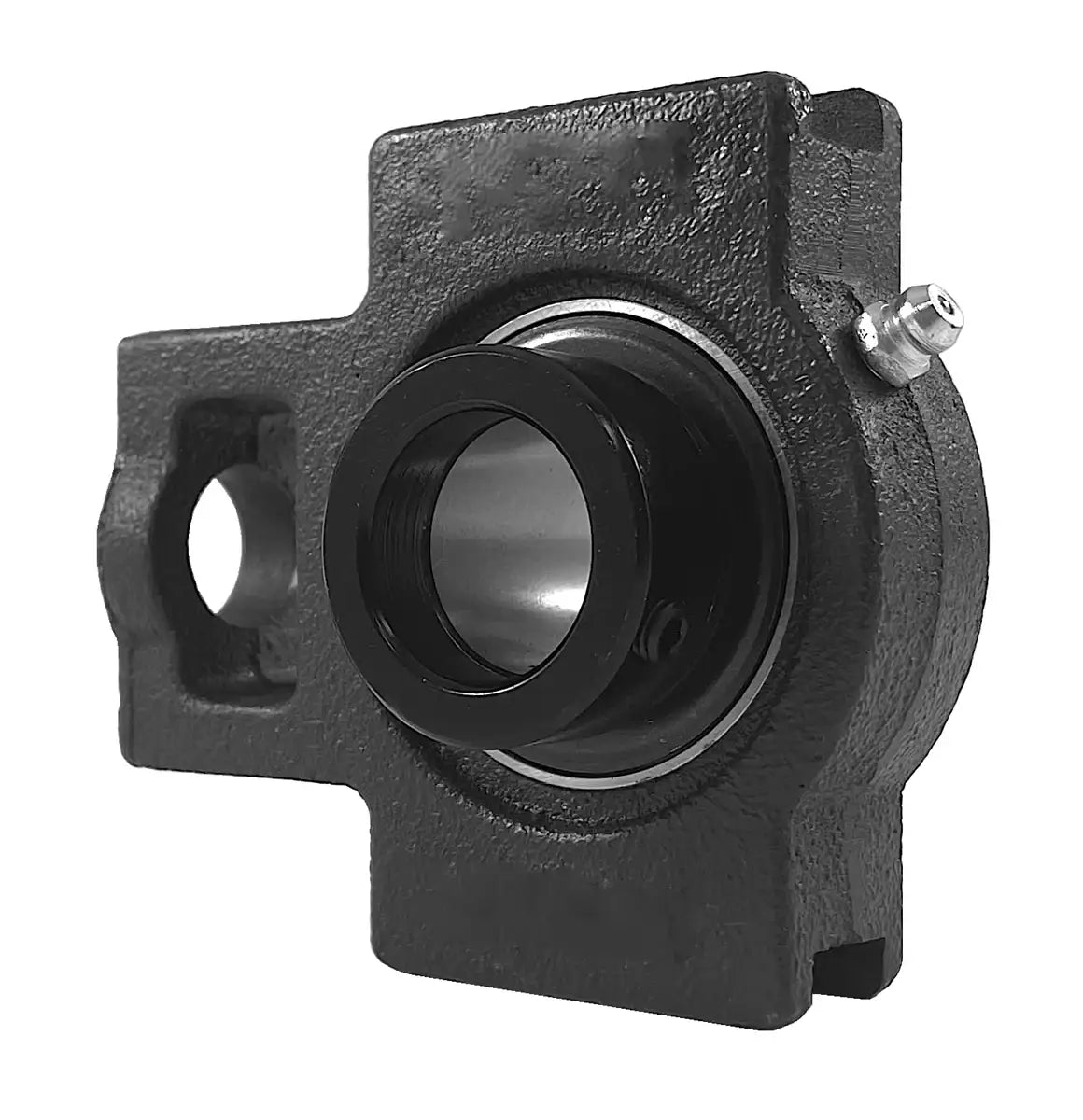

HCST205-16 Bearing | 1" Eccentric Locking Take-Up Bearing

HCST205-16 bearing is a 1" bore normal-duty take-up bearing that utilizes an eccentric locking collar to secure to a 1" shaft. HCST205-16 take-up bearings are designed for take-up frames, which creates an assembly that maintains and adjusts tension for conveyor and drive systems. Our superior HCST205-16 bearing with a 1" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our HCST205-16 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Our HCST205-16 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our HCST205-16 bearings, and we will be happy to assist you!

HCST205-16 Take-Up Bearing Dimensions

• Part #: HCST205-16
• Shaft Diameter (d): 1"
• Dimension (O): 0.63"
• Dimension (G): 0.39"
• Dimension (P): 2.00"
• Dimension (Q): 1.25"
• Dimension (S): 0.75"
• Dimension (B): 2.00"
• Dimension (K): 0.53"
• Dimension (E): 3.00"
• Dimension (A): 3.50"
• Dimension (W): 3.84"
• Dimension (J): 1.25"
• Dimension (L): 0.94"
• Dimension (H): 2.44"
• Dimension (Bi): 1.7480"
• Dimension (N): 0.6850"
• Dimension (M): 0.6890"
• Dynamic Load Rating (LBS): 3,155
• Static Load Rating (LBS): 1,810
• Bearing Insert: HC 205-16
• Housing Number: ST 205
• Weight (LBS): 2.0
