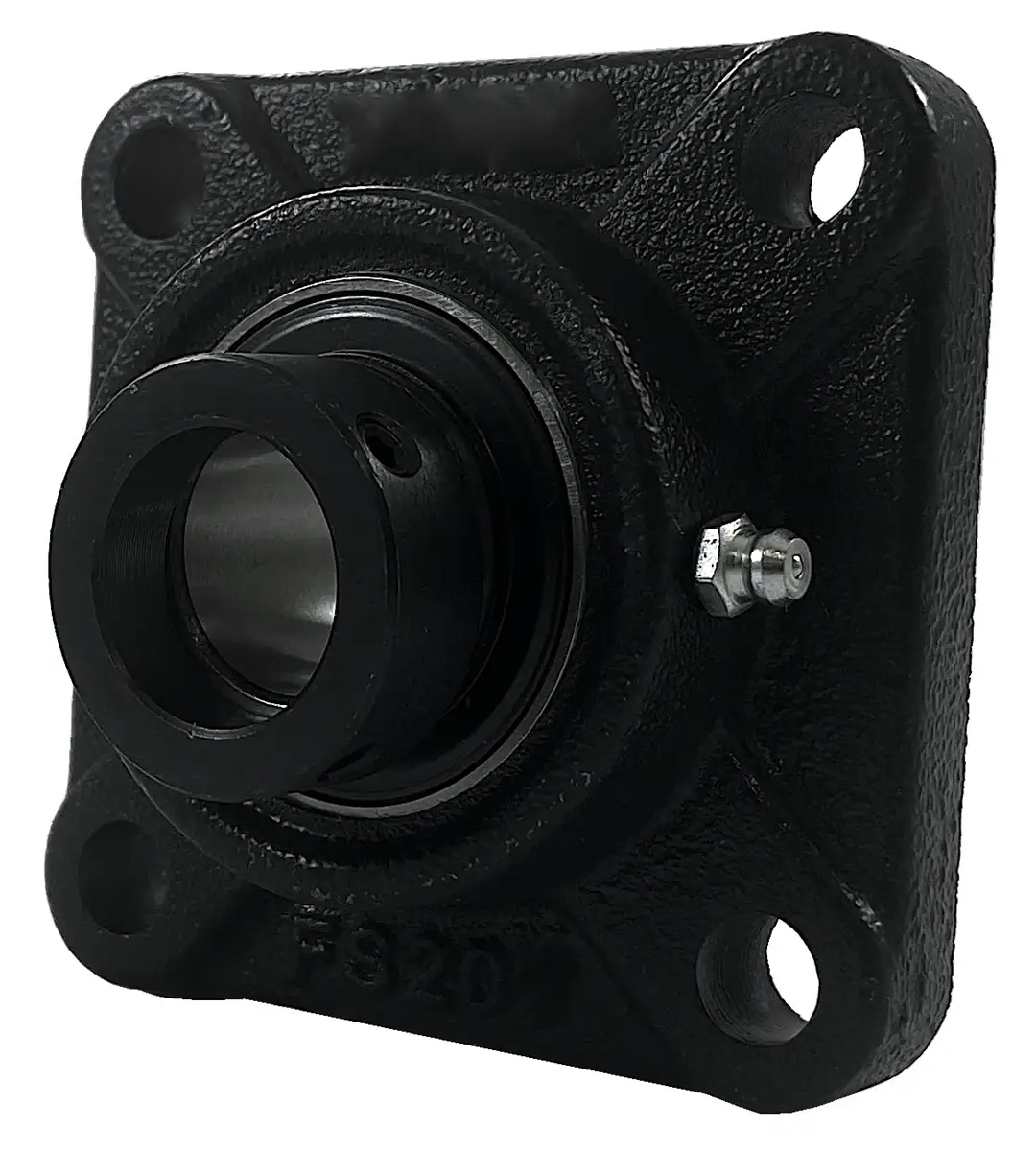

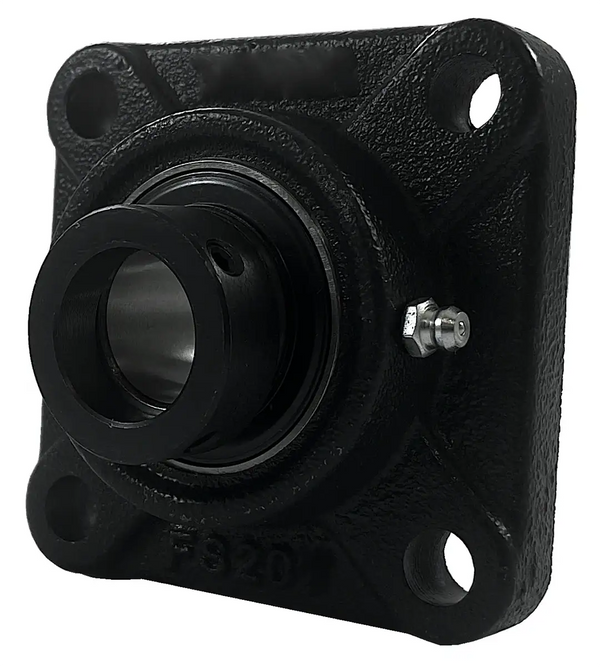

HCFS209-27 Bearing | 1-11/16" 4-Bolt Eccentric Locking Bearing

HCFS209-27 bearing is a 1-11/16" bore four-bolt normal-duty flange bearing that utilizes an eccentric locking device to secure to a 1-11/16" shaft. HCFS209-27 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and poses great stability and rigidity due to the four mounting positions. Our superior HCFS209-27 bearing with a 1-11/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our HCFS209-27 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCFS209-27 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our HCFS209-27 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our HCFS209-27 bearings, and we will be happy to assist you!

HCFS209-27 Bearing Dimensions

• Part #: HCFS 209-27
• Shaft Diameter (d): 1-11/16"
• Dimension (A): 5.31"
• Dimension (E): 4.125"
• Dimension (I): 0.94"
• Dimension (G): 0.71"
• Dimension (L): 1.57"
• Dimension (S): 0.63"
• Dimension (Z): 2.31"
• Dimension (Bi): 2.217"
• Dimension (N): 0.843"
• Dimension (M): 0.843"
• Bolt Used: 1/2
• Dynamic Load Rating (LBS): 7,160
• Static Load Rating (LBS): 4,676
• Bearing Insert: HC 209-27
• Housing Number: FS 209
• Weight (LBS): 5.3
