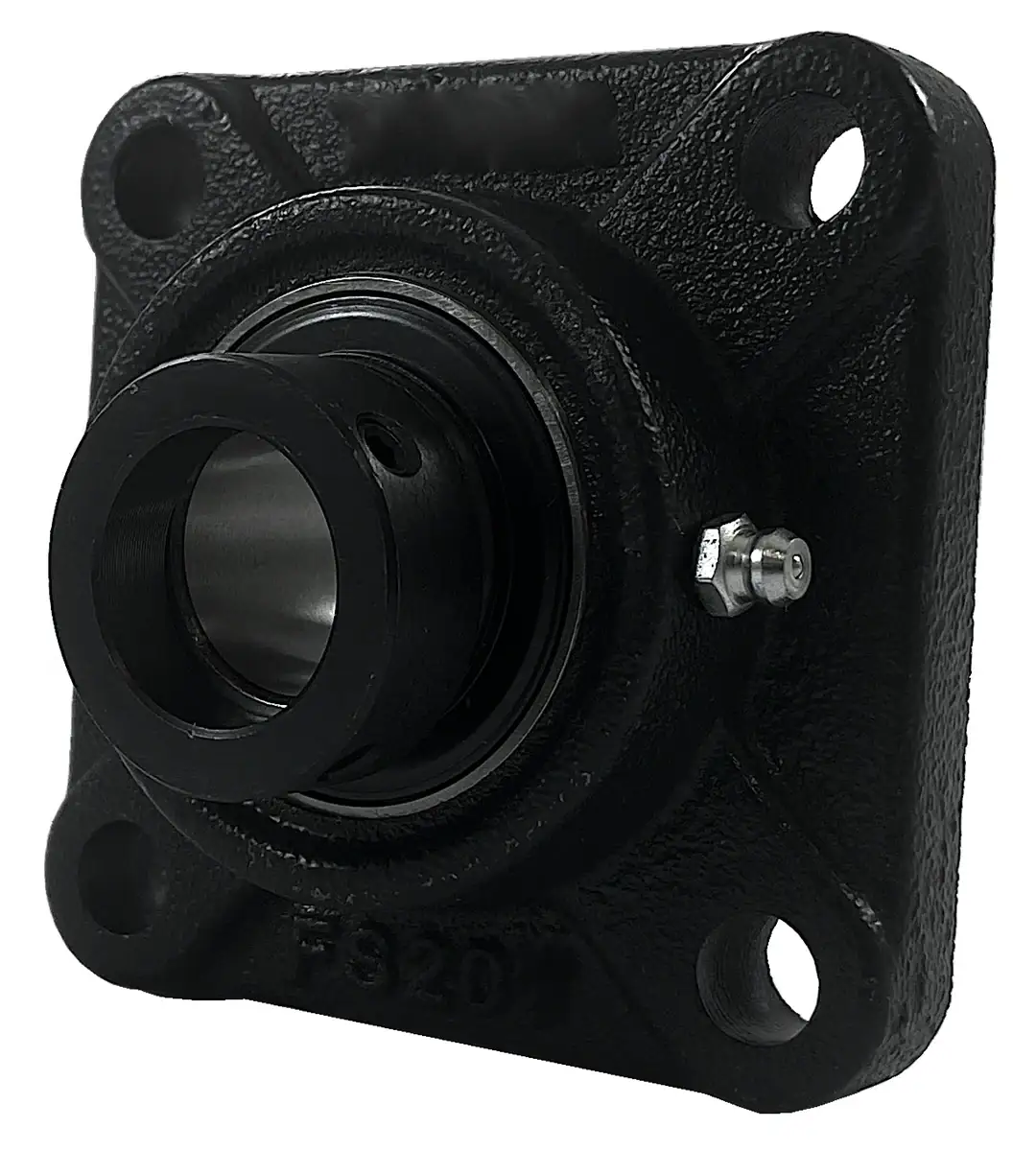

HCFS208-24 bearing is a 1-1/2" bore four-bolt normal-duty flange bearing that utilizes an eccentric locking device to secure to a 1-1/2" shaft. HCFS208-24 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and poses great stability and rigidity due to the four mounting positions. Our superior HCFS208-24 bearing with a 1-1/2" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our HCFS208-24 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCFS208-24 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our HCFS208-24 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our HCFS208-24 bearings, and we will be happy to assist you!

HCFS208-24 Bearing Dimensions

• Part #: HCFS 208-24
• Shaft Diameter (d): 1-1/2"
• Dimension (A): 5.06"
• Dimension (E): 4.000"
• Dimension (I): 0.94"
• Dimension (G): 0.69"
• Dimension (L): 1.54"
• Dimension (S): 0.55"
• Dimension (Z): 2.31"
• Dimension (Bi): 2.2165"
• Dimension (N): 0.8425"
• Dimension (M): 0.8425"
• Bolt Used: 1/2
• Dynamic Load Rating (LBS): 6,634
• Static Load Rating (LBS): 4,079
• Bearing Insert: HC 208-24
• Housing Number: FS 208
• Weight (LBS): 3.7
