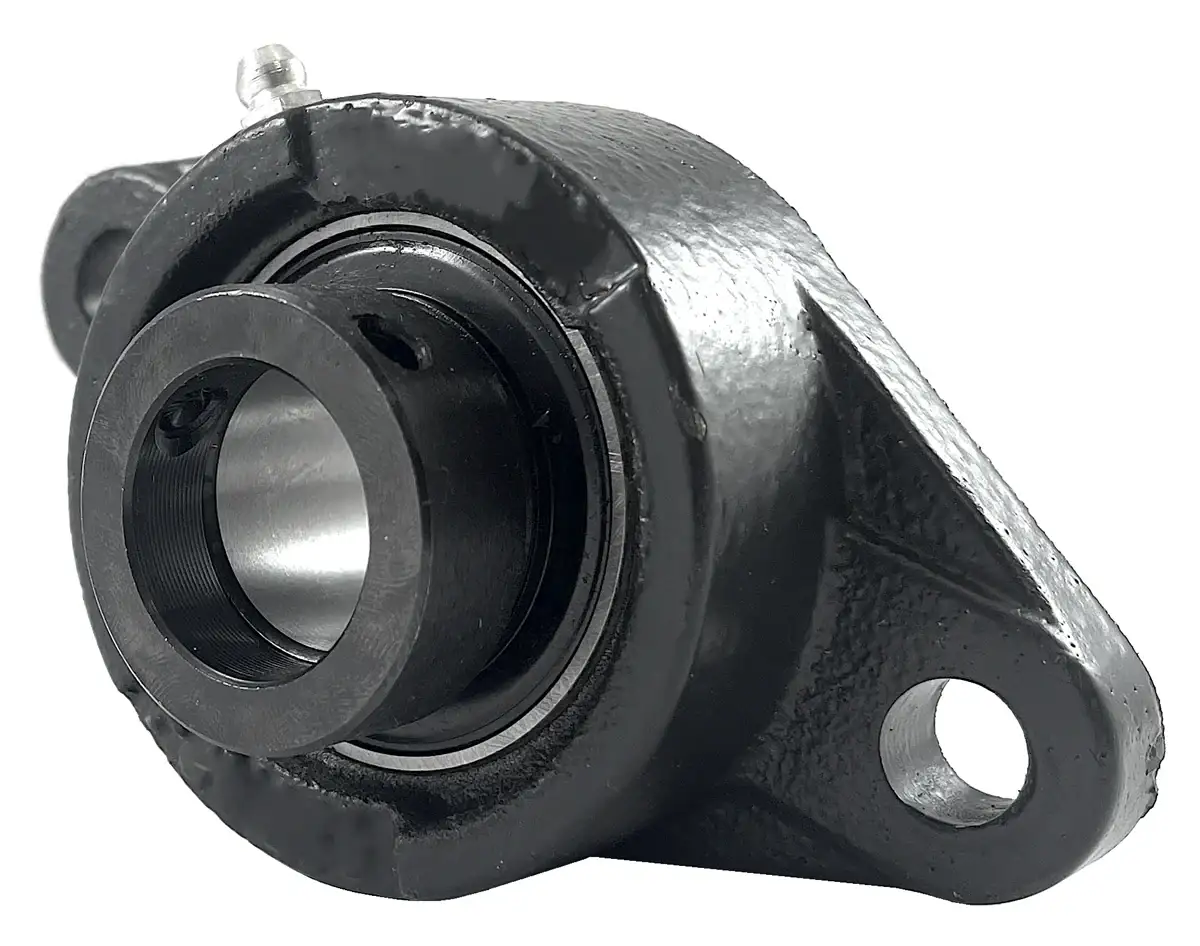

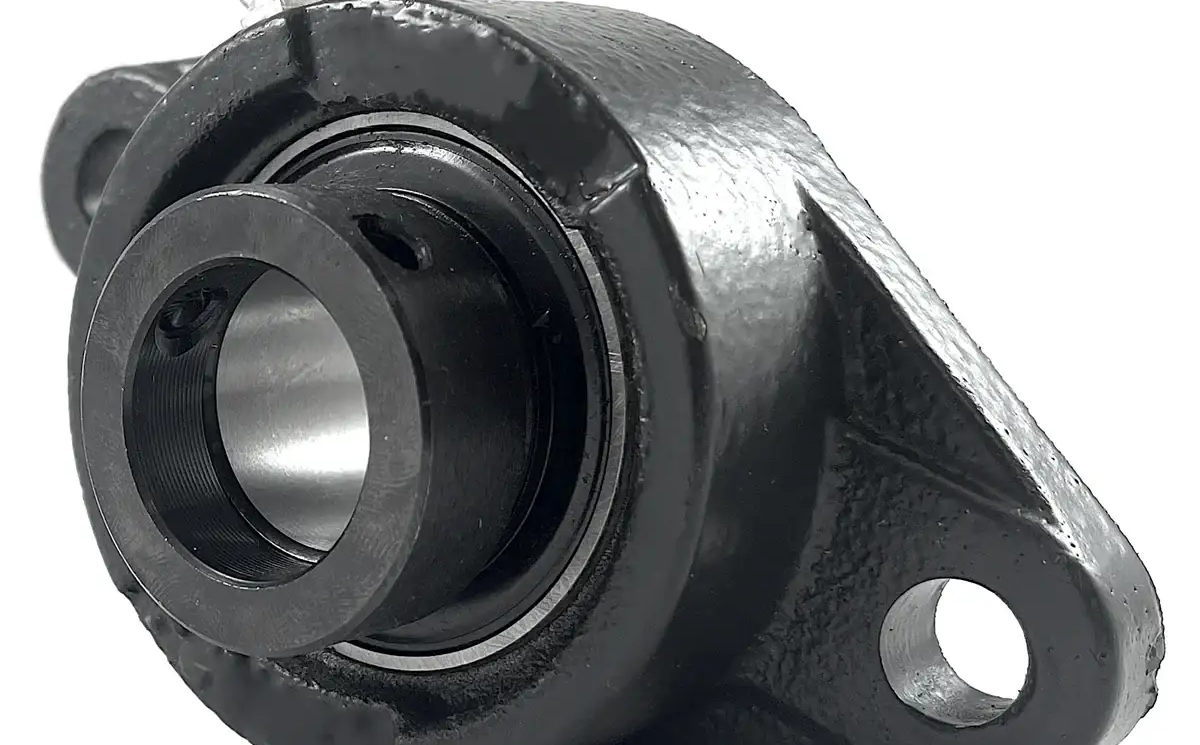

HCFJT206-18 Bearing | 1-1/8" 2-Bolt Eccentric Locking Bearing

HCFJT206-18 bearing is a 1-1/8" bore two-bolt normal-duty flange bearing that utilizes an eccentric locking collar device to secure to a 1-1/8" shaft. HCFJT206-18 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior HCFJT206-18 bearing with a 1-1/8" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our HCFJT206-18 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCFJT206-18 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our HCFJT206-18 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our HCFJT206-18 bearings, and we will be happy to assist you!

HCFJT206-18 Bearing Dimensions

• Part #: HCFJT 206-18
• Shaft Diameter (d): 1-1/8"
• Dimension (A): 5.56"
• Dimension (E): 4.94"
• Dimension (I): 0.81"
• Dimension (G): 0.50"
• Dimension (L): 1.38"
• Dimension (S): 0.47"
• Dimension (B): 3.25"
• Dimension (Z): 2.00"
• Dimension (Bi): 1.9055"
• Dimension (N): 0.7205"
• Dimension (M): 0.7165"
• Bolt Used: 3/8
• Dynamic Load Rating (LBS): 4,377
• Static Load Rating (LBS): 2,569
• Bearing Insert: HC 206-18
• Housing Number: FJT 206
• Weight (LBS): 2.2
