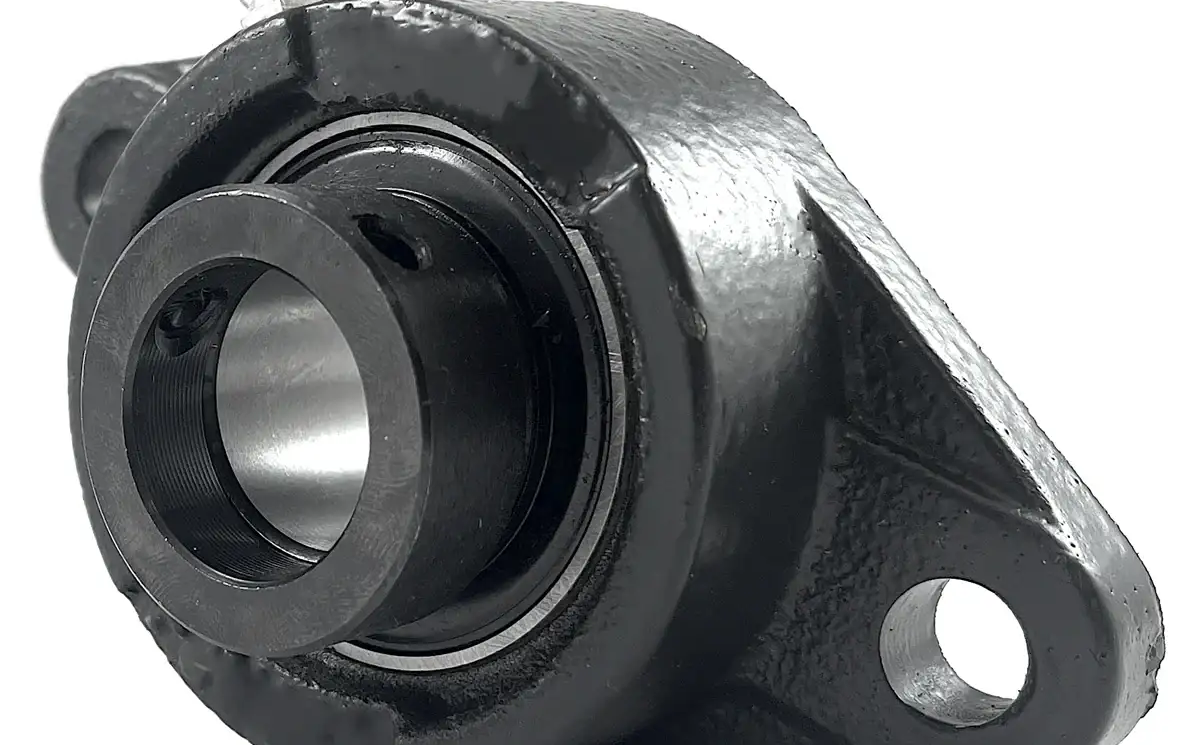

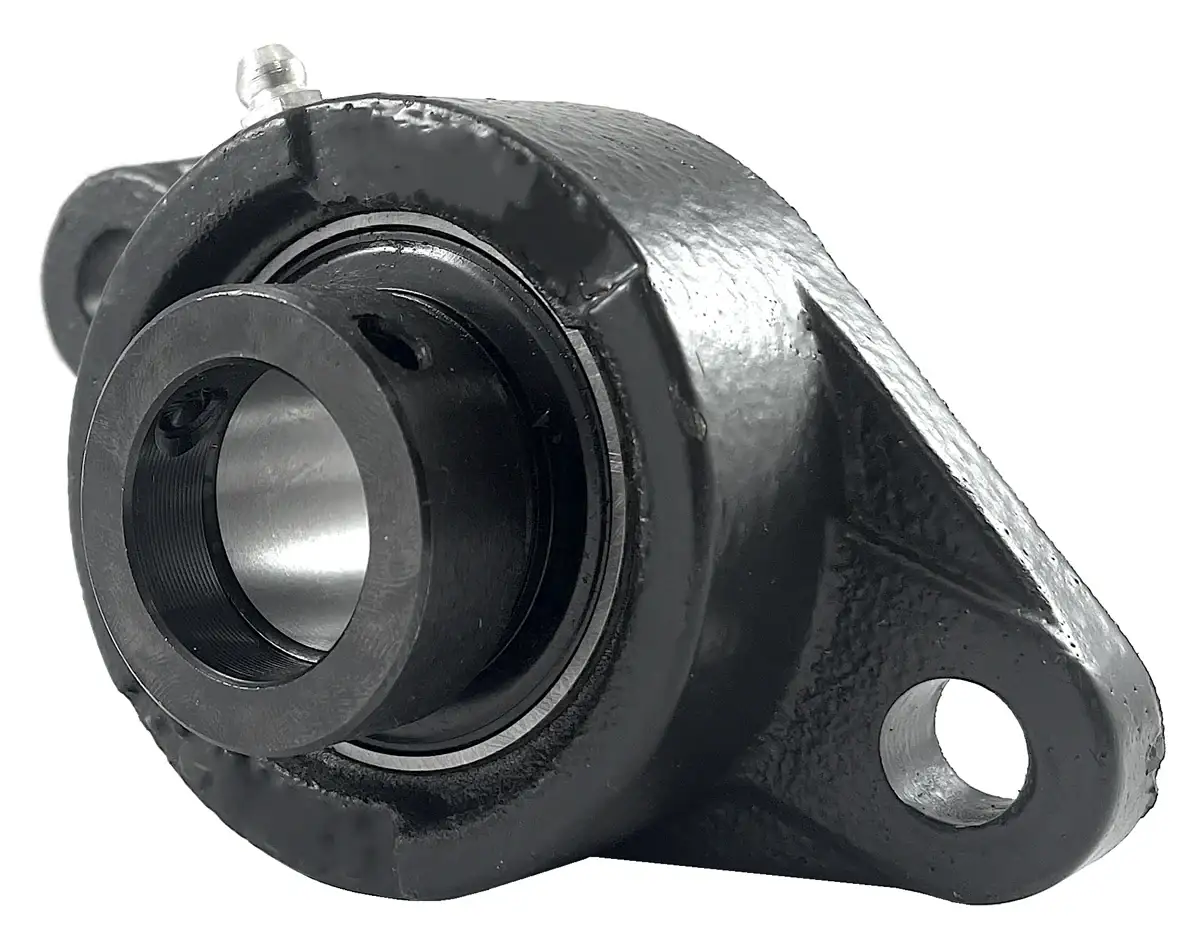

HCFJT205-14 Bearing | 7/8" 2-Bolt Eccentric Locking Bearing

HCFJT205-14 bearing is a 7/8" bore two-bolt normal-duty flange bearing that utilizes an eccentric locking collar device to secure to a 7/8" shaft. HCFJT205-14 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior HCFJT205-14 bearing with a 7/8" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our HCFJT205-14 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCFJT205-14 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our HCFJT205-14 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our HCFJT205-14 bearings, and we will be happy to assist you!

HCFJT205-14 Bearing Dimensions

• Part #: HCFJT 205-14
• Shaft Diameter (d): 7/8"
• Dimension (A): 4.88"
• Dimension (E): 3.891"
• Dimension (I): 0.75"
• Dimension (G): 0.50"
• Dimension (L): 1.31"
• Dimension (S): 0.47"
• Dimension (B): 2.75"
• Dimension (Z): 1.81"
• Dimension (Bi): 1.7480"
• Dimension (N): 0.6850"
• Dimension (M): 0.6890"
• Bolt Used: 3/8
• Dynamic Load Rating (LBS): 3,155
• Static Load Rating (LBS): 1,810

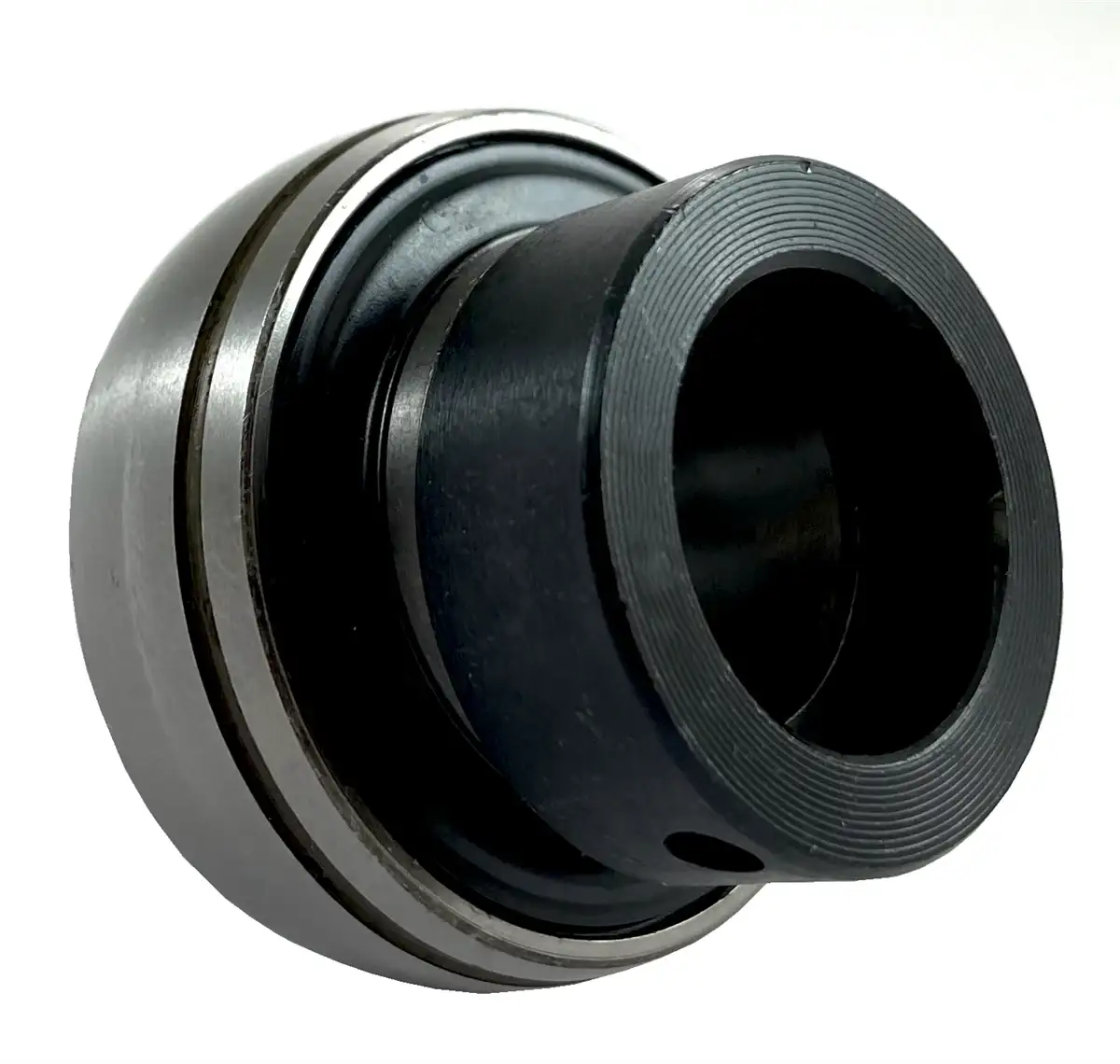

• Bearing Insert: HC 205-14
• Housing Number: FJT 205
• Weight (LBS): 1.5
