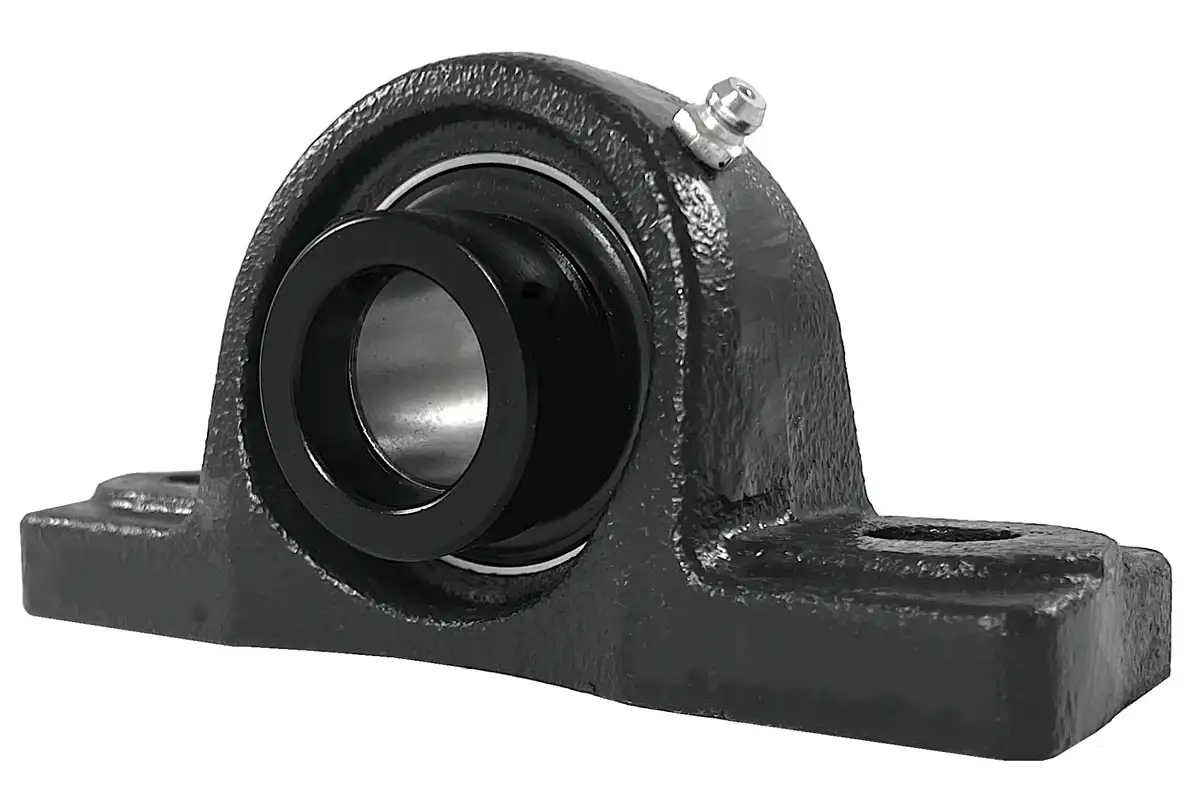

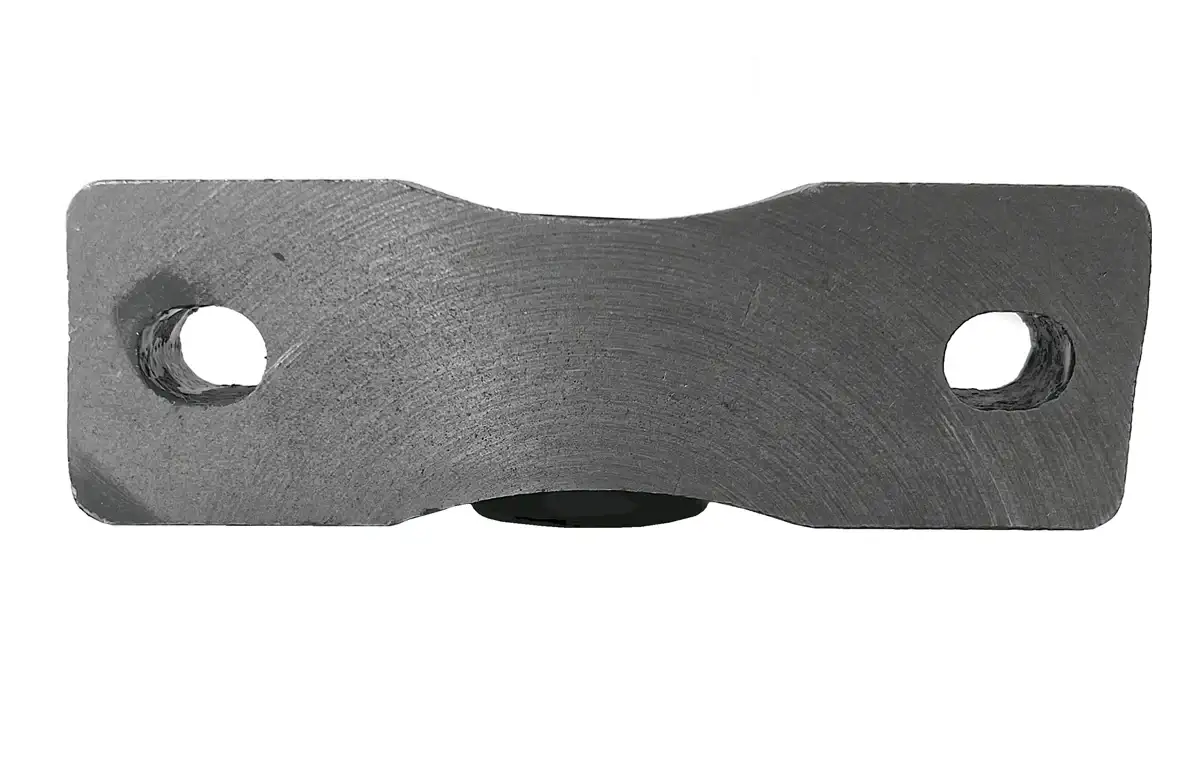

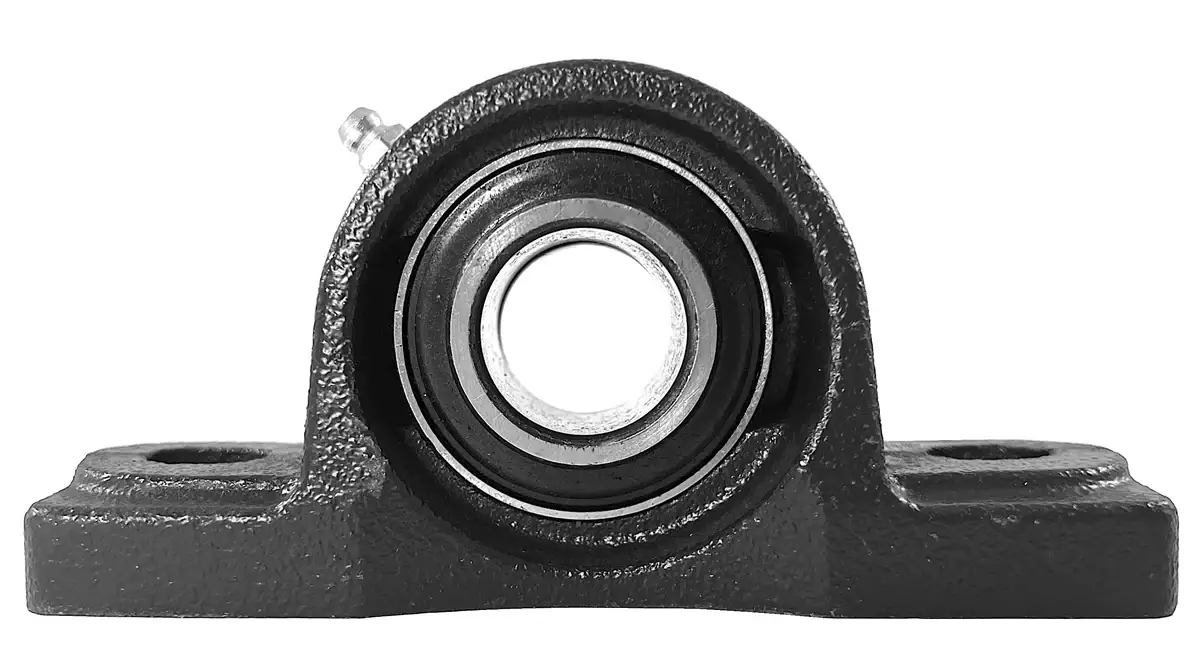

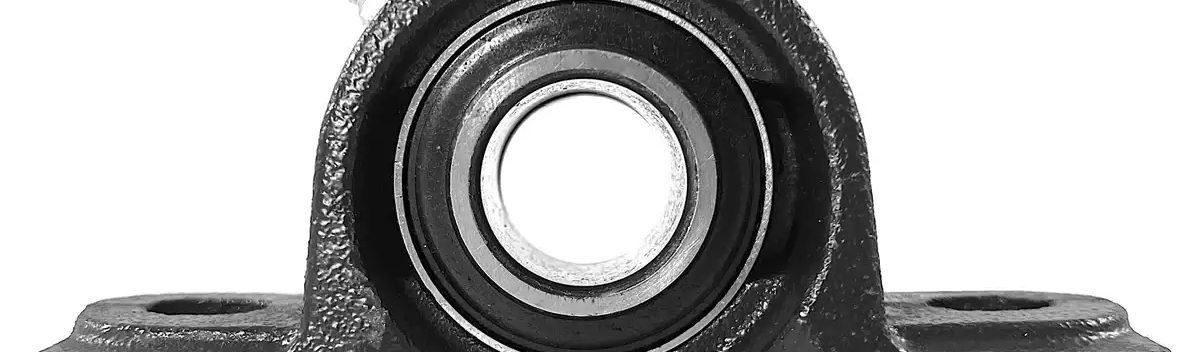

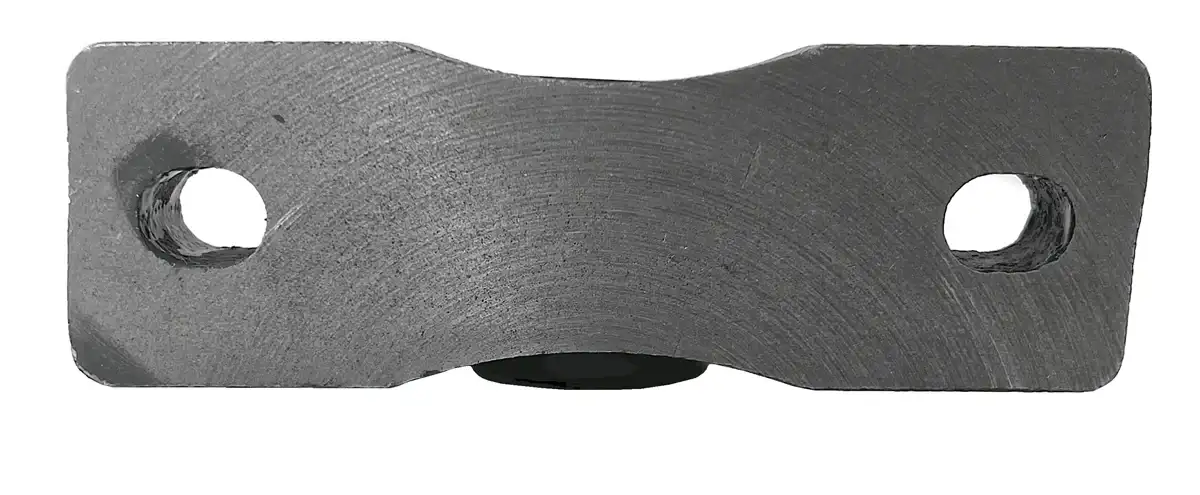

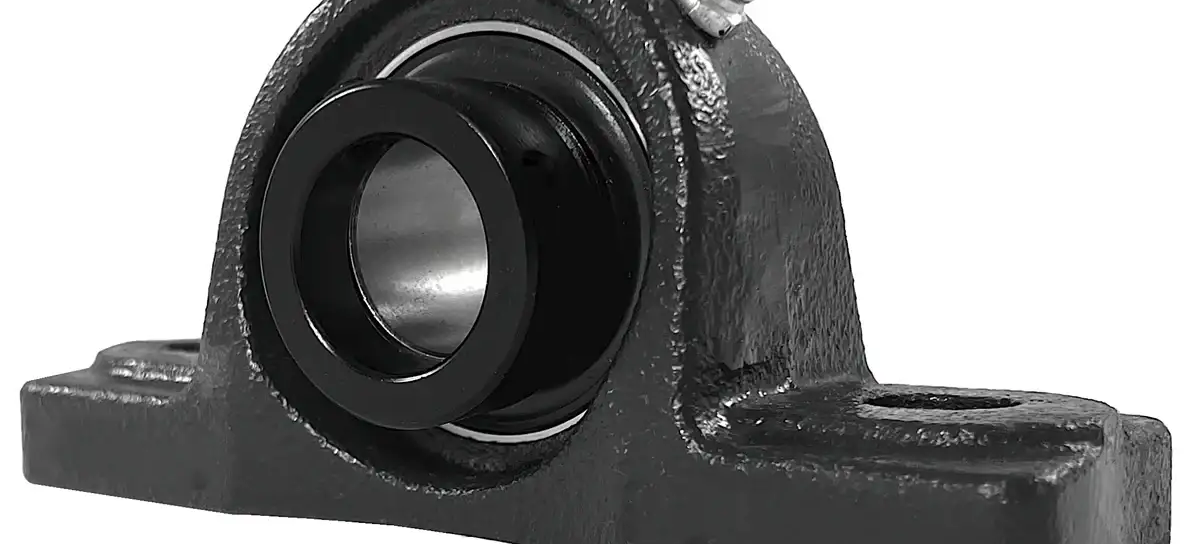

HCAK209-27 bearing is a two-bolt normal duty pillow block bearing with a 1-11/16" bore. It utilizes an eccentric locking collar for securing the beating to a 1-11/16" shaft and features a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Our HCAK209-27 bearings are engineered and manufactured to provide long-lasting performance and durability with added features such as a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCAK209-27 pillow block bearings are utilized in various applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Additionally, this HCAK209-27 bearing is directly interchangeable with other brands. Contact our customer support team for further information or to get a quote on our HCAK209-27 bearings, and we will be happy to assist you!

HCAK209-27 Bearing Dimensions

• Part #: HCAK 209-27
• Shaft Diameter (d): 1-11/16"
• Dimension (H): 2.063"
• Dimension (A): 7.50"
• Dimension (E): 5.75"
• Dimension (B): 2.13"
• Dimension (S2): 0.75"
• Dimension (S1): 0.59"
• Dimension (G): 0.81"
• Dimension (W): 4.19"
• Dimension (Bi): 2.2165"
• Dimension (N): 0.8425"
• Dimension (M): 0.8425"
• Bolt Used: 1/2
• Dynamic Load Rating (LBS): 7,160
• Static Load Rating (LBS): 4,676
• Bearing Insert: HC 209-27
• Housing Number: AK 209
• Weight (LBS): 5.6
