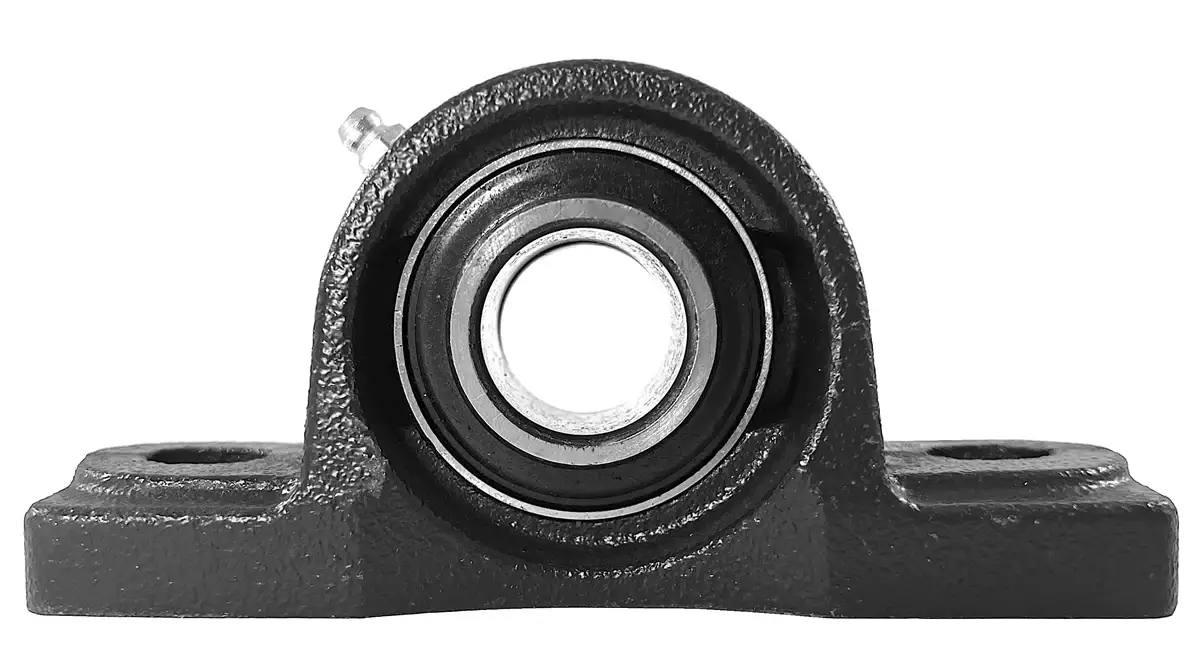

HCAK206-19 Bearing | 1-3/16" 2-Bolt Eccentric Locking Bearing

HCAK206-19 bearing is a two-bolt normal duty pillow block bearing with a 1-3/16" bore. It utilizes an eccentric locking collar for securing the beating to a 1-3/16" shaft and features a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Our HCAK206-19 bearings are engineered and manufactured to provide long-lasting performance and durability with added features such as a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCAK206-19 pillow block bearings are utilized in various applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Additionally, this HCAK206-19 bearing is directly interchangeable with other brands. Contact our customer support team for further information or to get a quote on our HCAK206-19 bearings, and we will be happy to assist you!

HCAK206-19 Bearing Dimensions

• Part #: HCAK 206-19
• Shaft Diameter (d): 1-3/16"
• Dimension (H): 1.563"
• Dimension (A): 6.31"
• Dimension (E): 4.75"
• Dimension (B): 1.88"
• Dimension (S2): 0.75"
• Dimension (S1): 0.59"
• Dimension (G): 0.67"
• Dimension (W): 3.16"
• Dimension (Bi): 1.9055"
• Dimension (N): 0.7165"
• Dimension (M): 0.7205"
• Bolt Used: 1/2
• Dynamic Load Rating (LBS): 4,377
• Static Load Rating (LBS): 2,569
• Bearing Insert: HC 206-19
• Housing Number: AK 206
• Weight (LBS): 2.9
