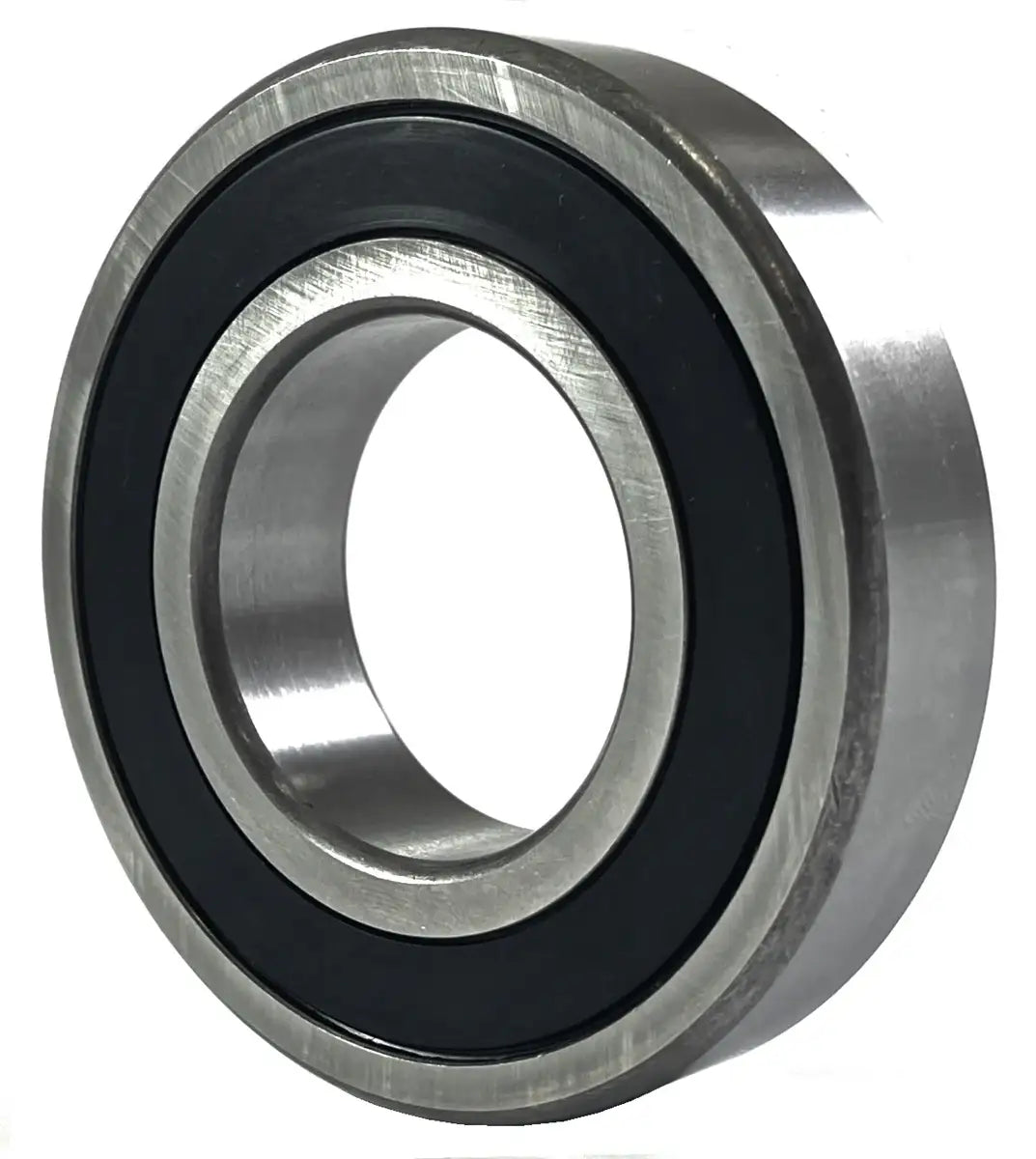

R4-2RS Ball Bearing | R4-2RS Bearing - 1/4"x5/8"x0.196"

This R4-2RS ball bearing is a high-precision premium quality sealed deep groove 1/4"x5/8"x0.196" ball bearing made to ABEC 3 precision standards from AXIS. What sets this R4-2RS bearing apart from others is the ABEC 3 precision standard that this bearing is made to, the grade 10-balls used, and the superb electric motor quality rating (EMQ). ABEC 3 means that the bearing has a micron deviation from a nominal of 20.000mm of -8 micrometers. The standard ABEC 1 precision standard that almost all ball bearings are made to today has a deviation of -10 micrometers. In simple terms, the more precision a bearing is, the better it will perform in any given application. The grade 10 balls within this bearing are typically only found within ABEC 5 or higher bearings because of their more true roundness and precision. The balls within a bearing share the load capacity, which also increases the working life versus the standard grade 25 balls used in other brands. The electric motor quality rating means that the bearing must operate at an extremely low noise level with minimal to no vibration. To achieve this, the R4-2RS bearing features raceways that are precision honed to a superb finish.

More specifically, R4-2RS ball bearings are found in a wide range of industrial and automation applications. They are designed to reduce rotational friction and support loads. The load is spread evenly across the grade 10 balls, and as the inner bearing race rotates, so do the balls. The seals located on each side of the ball bearing keep the bearing lubricant in while keeping unwanted contents out. For additional information or to get a quote on a inch series R4-2RS bearing, contact our customer support team, and we will be happy to assist you!

R4-2RS Ball Bearing Dimensions

• Bearing Size: R4-2RS
• Dimension (d): 1/4"
• Dimension (D): 5/8"
• Dimension (B): 0.196"
• Dynamic Load Rating: 360 LBS
• Static Load Rating: 150 LBS
• Limiting Speed (Grease): 21600 RPM
• Limiting Speed (OIL): 36000 RPM
• Weight: 0.009 LBS
