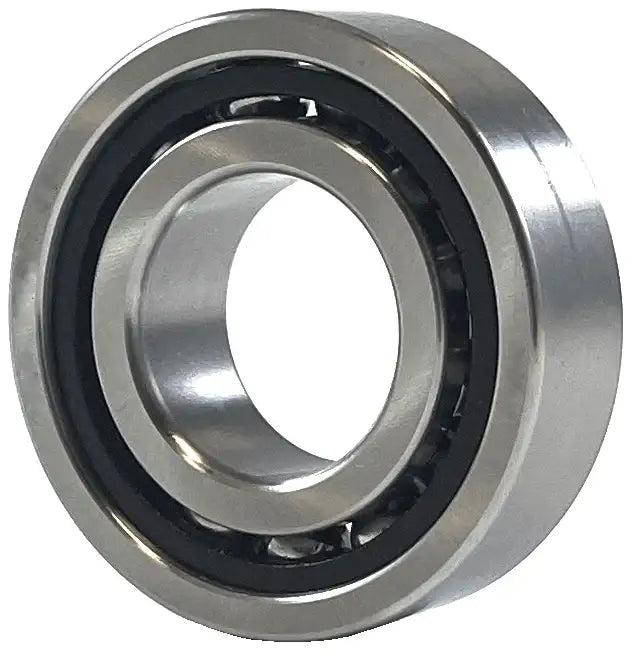

7909 CT.P4.UL Spindle Bearing - 45x68x12 Spindle Bearing

7909 CT.P4.UL spindle bearing is manufactured by AXIS to extremely precise ABEC 7 precision tolerances for maximum precision when in operation. This 45x68x12 7909 CT.P4.UL spindle bearing utilizes top-grades of materials as well as proprietary engineering and manufacturing techniques to provide the best spindle bearing on the market. Additional configurations for spindle bearings include duplex, triplex, and quadplex pairs to meet the application requirements. The purpose of a spindle bearing is to enhance and streamline spindle movement to ensure optimal machine speed and accuracy, this AXIS 7909 CT.P4.UL spindle bearing executes this purpose with the utmost accuracy and precision. Common applications for spindle bearings include; machine tools, medical equipment, aerospace, textile applications, and more. To get a quote or for additional information contact our customer support team and we will be happy to assist you.

7909 CT.P4.UL Spindle Bearing Dimensions

• Bearing Size: 7909 CT.P4.UL
• Dimension (d): 45mm
• Dimension (D): 68mm
• Dimension (B): 12mm
• Dynamic Load Rating: 3305 LBS
• Static Load Rating: 2832 LBS
• Limiting Speed (Grease): 19000 RPM
• Limiting Speed (OIL): 32000 RPM
