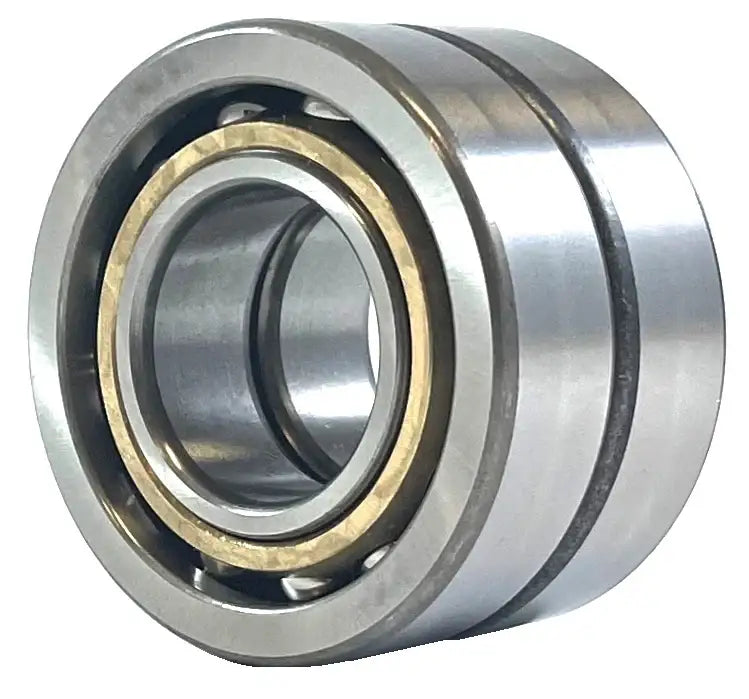

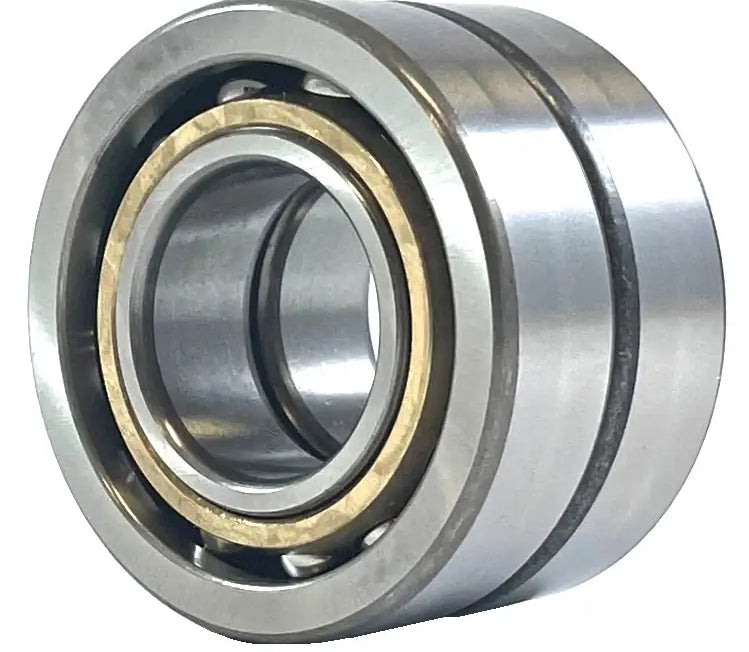

7301B Bearing | 7301-BUA Duplex Bearing - 12x37x24
This 7301-BUA Duplex bearing is a high-precision 45-degree 17x47x14 bearing manufactured to ABEC 7 precision standards by AXIS. The contact angle on this type of bearing is the angle between the radial plane and a line that joins the two contact points between the inner and outer race. The higher the degree of the angle, the more increased the single-directional thrust capacity of the bearing. The AXIS 7301-BUA Duplex bearing separates itself from other brands by using high-quality metals, a bronze cage, and the superior ABEC 7 precision rating they are manufactured to. The more precise a bearing is, the better it performs in any given application. 7301-BUA Duplex bearings are typically found in applications such as agriculture, chemical facilities, utilities, and a range of general industrial applications. For additional information or to get a quote, please contact our customer support team and we will be happy to assist you!
7301-BUA Duplex Bearing Dimensions

- Bearing Size: 7301-BUA
- Dimension (d): 12mm
- Dimension (D): 37mm
- Dimension (B): 24mm
- Dynamic Load Rating: 3780 LBS
- Static Load Rating: 2200 LBS
- Limiting Speed (Grease): 15000 RPM
- Limiting Speed (OIL): 22000 RPM
- Bearing Size: 7301-BUA
- Dimension (d): 12mm
- Dimension (D): 37mm
- Dimension (B): 24mm
- Dynamic Load Rating: 3780 LBS
- Static Load Rating: 2200 LBS
- Limiting Speed (Grease): 15000 RPM
- Limiting Speed (OIL): 22000 RPM
