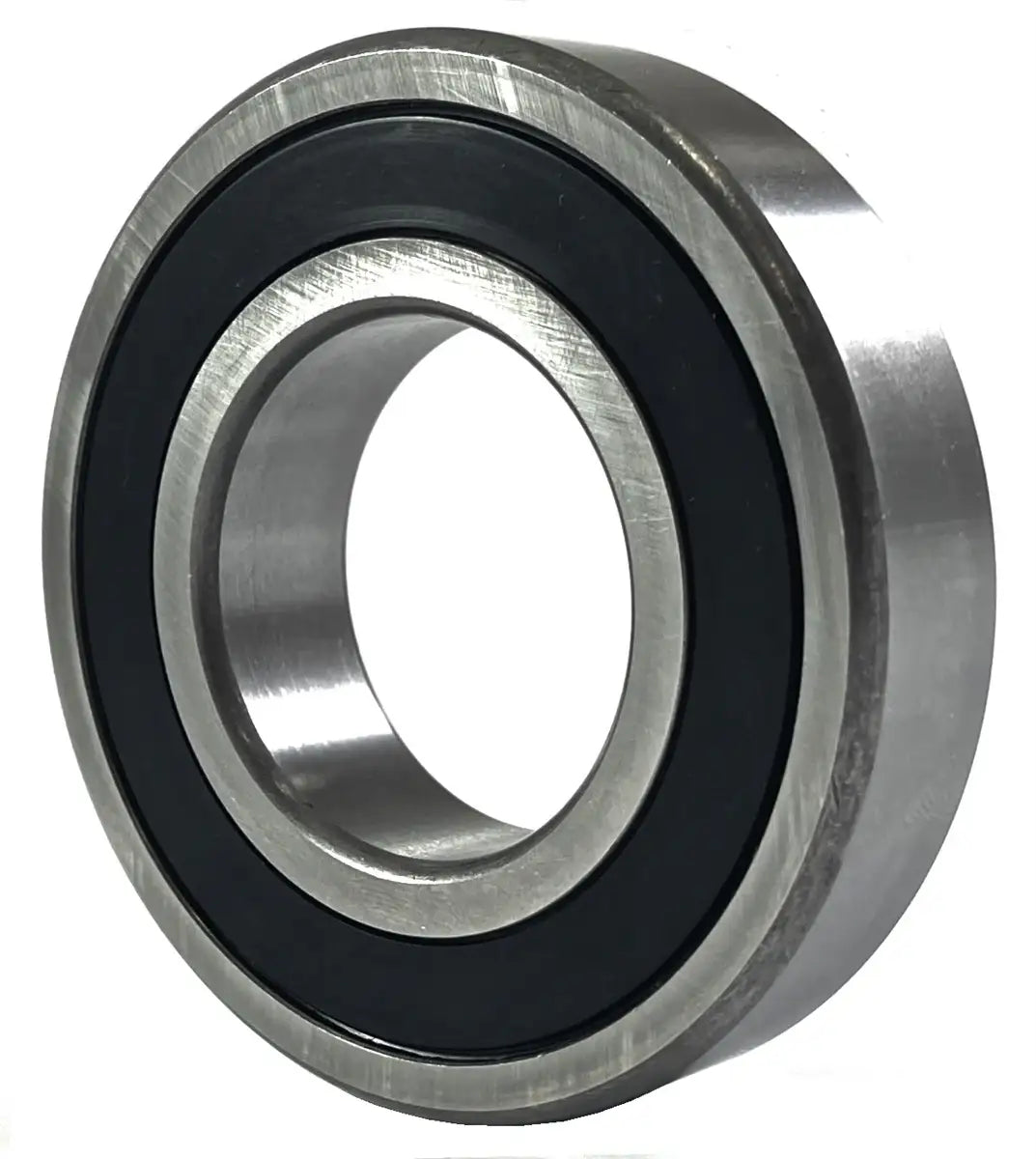

603-2RS Bearing | AXIS 603-2RS Miniature Ball Bearing - 3x9x3

This 603-2RS Bearing is a high-precision premium sealed on both sides miniature ball bearing made to ABEC 3 precision standards from AXIS. What sets this 603-2RS bearing apart from others is the ABEC 3 precision standard that this bearing is made to, the grade 10-balls used, and the superb electric motor quality rating (EMQ). ABEC 3 means that the bearing has a micron deviation from a nominal of 20.000mm of -8 micrometers. The standard ABEC 1 precision standard that almost all ball bearings are made to today has a deviation of -10 micrometers. In simple terms, the more precision a bearing is, the better it will perform in any given application, especially when pertaining to a miniature bearing. The grade 10 balls within this bearing are typically only found within ABEC 5 or higher bearings because of their more true roundness and precision. The balls within a bearing share the load capacity, so this also increases the working life versus the standard grade 25 balls used in other brands. The electric motor quality rating means that the bearing must operate at an extremely low noise level with minimal to no vibration. To achieve this, the 603-2RS bearing features raceways that are precision honed to a superb finish.

More specifically, 603-2RS miniature bearings are found within a broad range of industrial and scientific applications such as medical and industrial handpieces, flow meters, fuel controls, gyros, synchros, servos, motors, cryogenic coolers, pulmonary assist devices, and more. The seals located on each size of the ball bearing keep the bearing lubricant in while keeping unwanted contents out. For additional information or to get a quote on a 603-2RS miniature ball bearing, contact our customer support team, and we will be happy to assist you!

603-2RS Miniature Bearing Dimensions

• Bearing Size: 603-2RS
• Dimension (d): 3mm
• Dimension (D): 9mm
• Dimension (B): 3mm
• Dynamic Load Rating: 100 LBS
• Static Load Rating: 50 LBS
• Grease Limiting Speed: 42000 RPM
• Oil Limiting Speed: 67000 RPM
• Weight: 0.002 LBS
