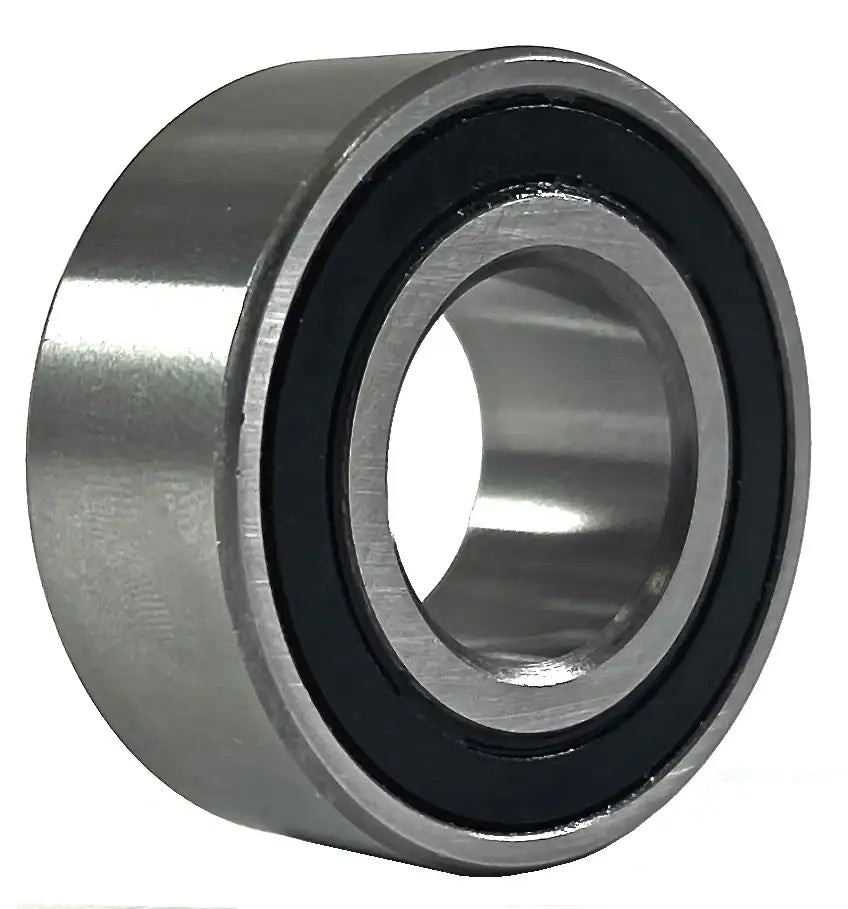

5315-2RS Bearing | AXIS 5315-2RS Ball Bearing - 75x160x2-11/16"

This 5315-2RS Bearing is a high-precision premium double-sealed double-row angular contact ball bearing made to ABEC 3 precision standards from AXIS. What sets this 5315-2RS bearing apart from others is the ABEC 3 precision standard that this bearing is made to, the grade 10-balls used, and the superb electric motor quality rating (EMQ). ABEC 3 means that the bearing itself has a micron deviation from a nominal of 20.000mm of -8 micrometers. The standard ABEC 1 precision standard that almost all ball bearings are made to today has a deviation of -10 micrometers. In simple terms, the more precision a bearing is, the better it will perform in any given application. The grade 10 balls within this bearing are typically only found within ABEC 5 or higher bearings because of their more true roundness and precision. The balls within a bearing share the load capacity, so this also increases the working life versus the standard grade 25 balls used in other brands. The electric motor quality rating means that the bearing must operate at an extremely low noise level with minimal to no vibration. To achieve this, the 5315-2RS bearing features raceways that are precision honed to a superb finish.

More specifically, 5315-2RS double row sealed ball bearings possess higher radial and axial load capacities in either direction when compared to single-row ball bearings, they are found within a broad range of industrial and agricultural applications. The seals that are located on both sides of the bearing prevent unwanted debris from entering the bearing and also hold in the bearing grease. For additional information or to get a quote on a 5315-2RS ball bearing contact our customer support team and we will be happy to assist you!

5315-2RS Bearing Dimensions

• Bearing Size: 5315-2RS
• Dimension (d): 75mm
• Dimension (D): 160mm
• Dimension (B): 2-11/16"
• Dynamic Load: 37768 LBS
• Static Load: 31698 LBS
• Limiting Speed (2RS): 2080 RPM
• Weight: 10.81 LBS
