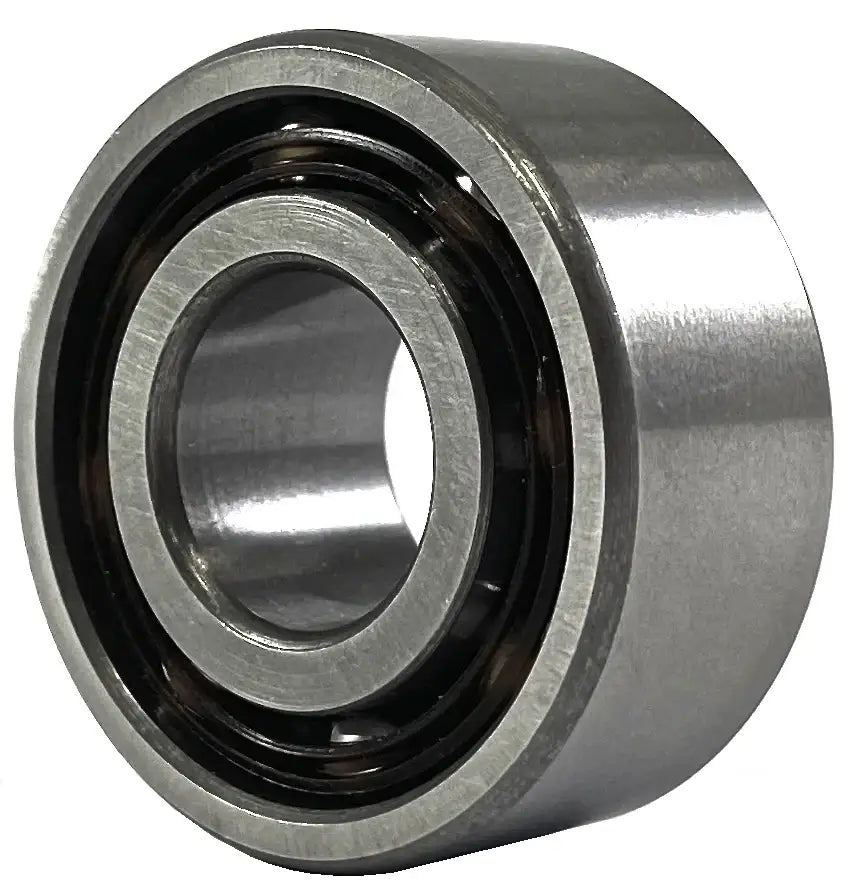

5207 Bearing | AXIS 5207 Ball Bearing - 35x72x1-1/16"

This 5207 Bearing is a high-precision premium double-row angular contact ball bearing made to ABEC 3 precision standards from AXIS. What sets this 5207 bearing apart from others is the ABEC 3 precision standard that this bearing is made to, the grade 10-balls used, and the superb electric motor quality rating (EMQ). ABEC 3 means that the bearing itself has a micron deviation from a nominal of 20.000mm of -8 micrometers. The standard ABEC 1 precision standard that almost all ball bearings are made to today has a deviation of -10 micrometers. In simple terms, the more precision a bearing is, the better it will perform in any given application. The grade 10 balls within this bearing are typically only found within ABEC 5 or higher bearings because of their more true roundness and precision. The balls within a bearing share the load capacity, so this also increases the working life versus the standard grade 25 balls used in other brands. The electric motor quality rating means that the bearing must operate at an extremely low noise level with minimal to no vibration. To achieve this, the 5207 bearing features raceways that are precision honed to a superb finish.

More specifically, 5207 double row ball bearings possess higher radial and axial load capacities in either direction when compared to single-row ball bearings, they are found within a broad range of industrial and agricultural applications. For additional information or to get a quote on a 5207 ball bearing contact our customer support team and we will be happy to assist you!

5207 Bearing Dimensions

• Bearing Size: 5207
• Dimension (d): 35mm
• Dimension (D): 72mm
• Dimension (B): 1-1/16"
• Dynamic Load: 8543 LBS
• Static Load: 6250 LBS
• Limiting Speed (Open): 9000 RPM
• Weight: 1.07 LBS
