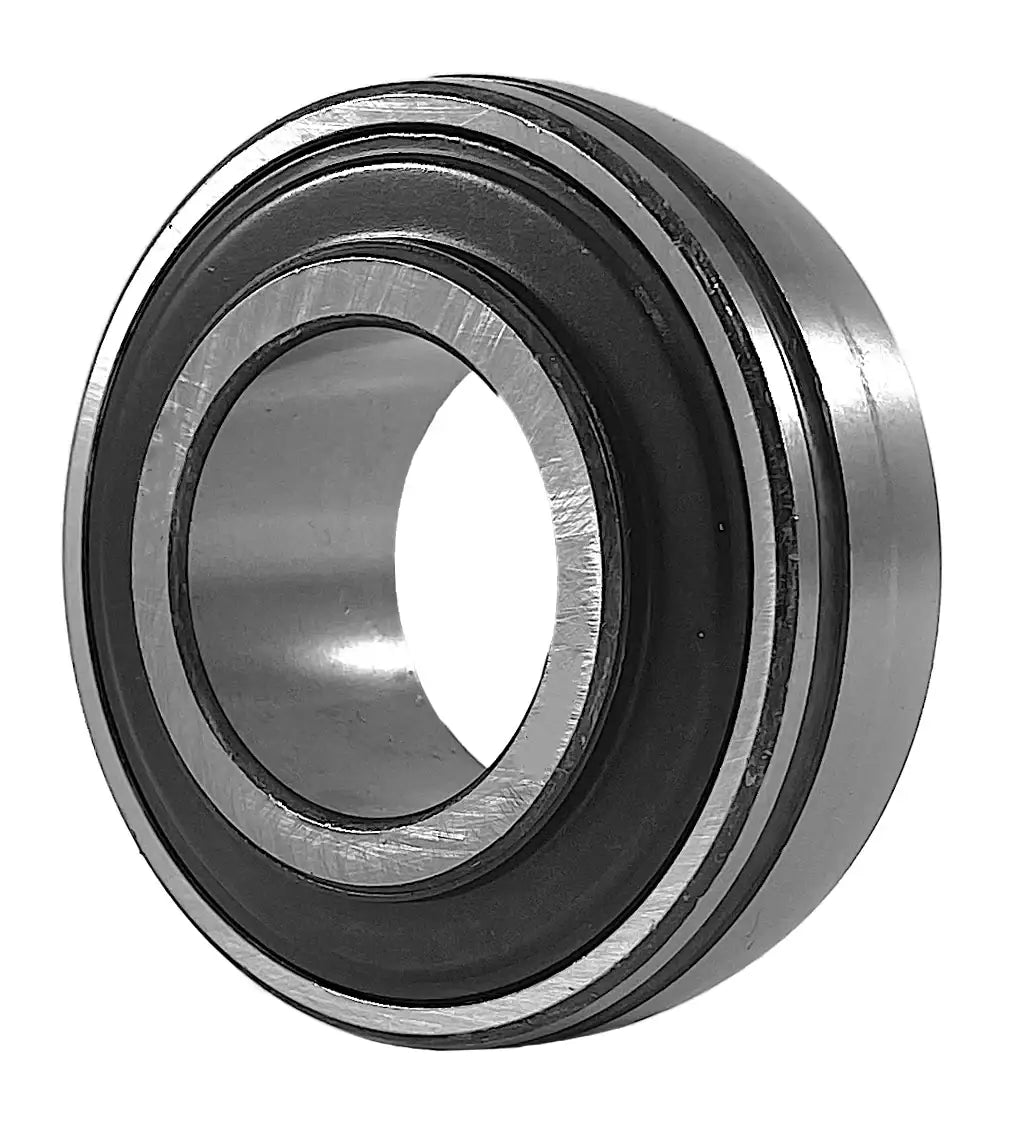

UK217-75 Insert Bearing | 75mm Tapered Adapter Insert Bearing
Note:
Custom Cut to Length Chain Also Available
SKU: 2278-UK-217-75-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
UK217-75 Insert Bearing | 75mm Tapered Adapter Insert Bearing Features
UK217-75 Insert Bearing | 75mm Tapered Adapter Insert Bearing Specifications
UK217-75 bearing is a normal-duty ball bearing insert with a tapered adapter sleeve made to C3 precision standards with a 75mm bore. Our UK217-75 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UK217-75 bearing with tapered adapter sleeve is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UK217-75 bearings, contact our customer service and, we will be happy to assist you!
UK217-75 Bearing Dimensions
- Part #: UK 217
- Shaft Diameter (d): 75mm
- Dimension (d): 85.0mm
- Dimension (D): 150.0mm
- Dimension (Bi): 46.0mm
- Dimension (Be): 35.0mm
- Dimension (T): 11.1mm
- Dynamic Load Rating (kN): 83.16
- Static Load Rating (kN): 64.54
- Fits Housing Size: 218 / X17
- Weight (kg): 3.4
- Part #: UK 217
- Shaft Diameter (d): 75mm
- Dimension (d): 85.0mm
- Dimension (D): 150.0mm
- Dimension (Bi): 46.0mm
- Dimension (Be): 35.0mm
- Dimension (T): 11.1mm
- Dynamic Load Rating (kN): 83.16
- Static Load Rating (kN): 64.54
- Fits Housing Size: 218 / X17
- Weight (kg): 3.4
