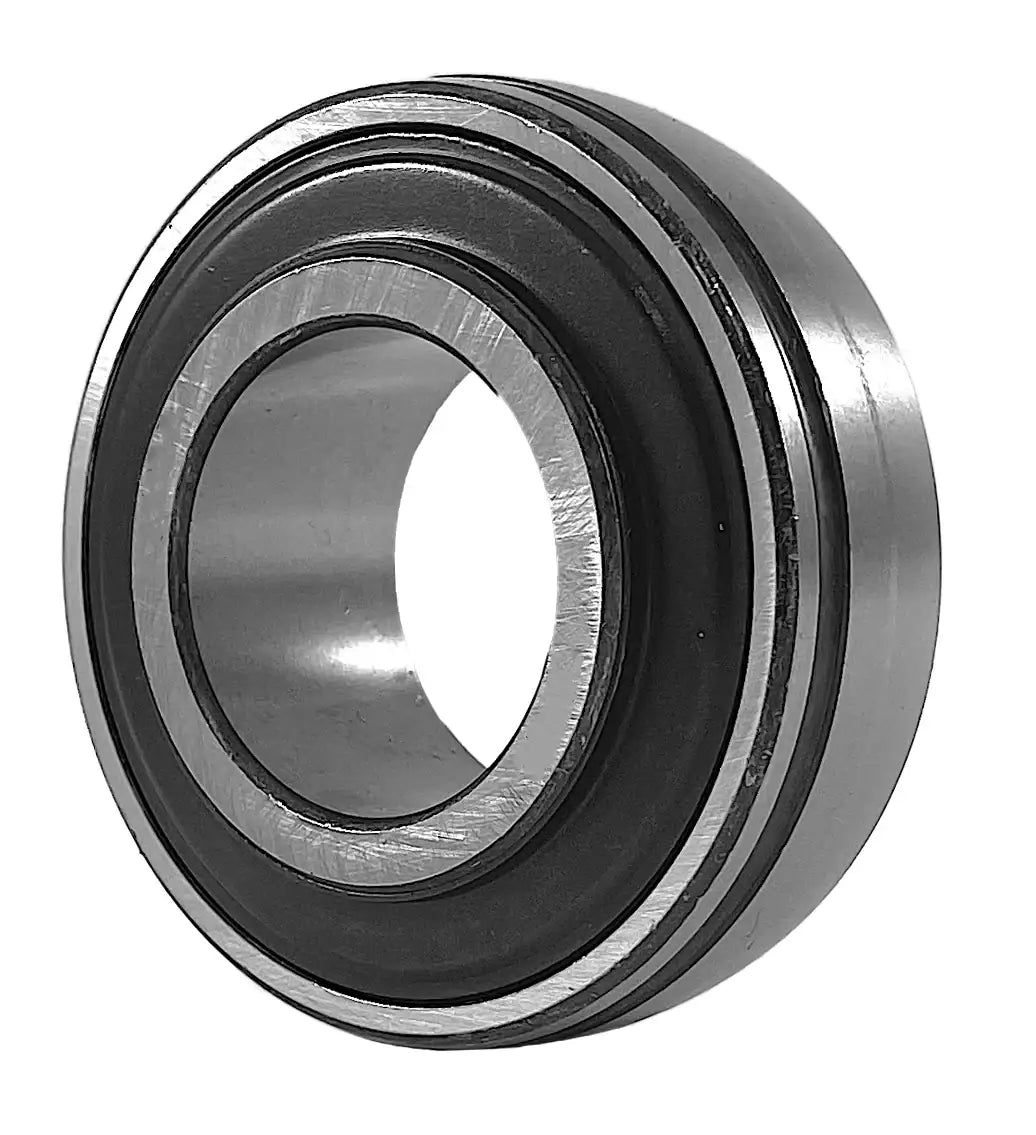

UK206-25 Insert Bearing | 25mm Tapered Adapter Insert Bearing
Note:
Custom Cut to Length Chain Also Available
SKU: 2278-UK-206-25-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
UK206-25 Insert Bearing | 25mm Tapered Adapter Insert Bearing Features
UK206-25 Insert Bearing | 25mm Tapered Adapter Insert Bearing Specifications
UK206-25 bearing is a normal-duty ball bearing insert with a tapered adapter sleeve made to C3 precision standards with a 25mm bore. Our UK206-25 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UK206-25 bearing with tapered adapter sleeve is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UK206-25 bearings, contact our customer service and, we will be happy to assist you!
UK206-25 Bearing Dimensions
- Part #: UK 206
- Shaft Diameter (d): 25mm
- Dimension (d): 30.0mm
- Dimension (D): 62.0mm
- Dimension (Bi): 26.0mm
- Dimension (Be): 19.0mm
- Dimension (T): 5.3mm
- Dynamic Load Rating (kN): 19.47
- Static Load Rating (kN): 11.43
- Fits Housing Size: 207 / X06
- Weight (kg): 0.3
- Part #: UK 206
- Shaft Diameter (d): 25mm
- Dimension (d): 30.0mm
- Dimension (D): 62.0mm
- Dimension (Bi): 26.0mm
- Dimension (Be): 19.0mm
- Dimension (T): 5.3mm
- Dynamic Load Rating (kN): 19.47
- Static Load Rating (kN): 11.43
- Fits Housing Size: 207 / X06
- Weight (kg): 0.3
