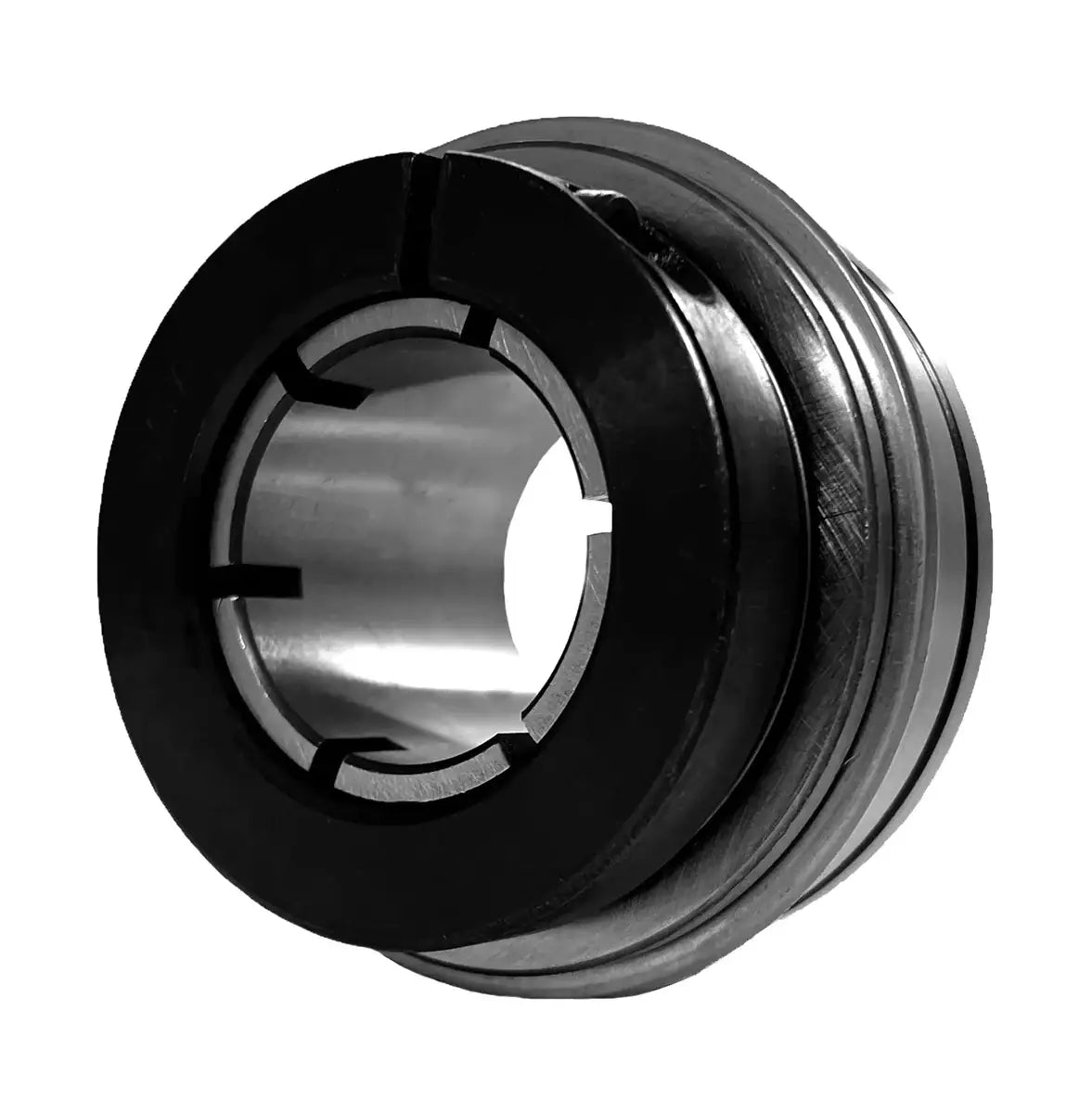

UER209 Insert Bearing | 45mm Insert Bearing With Snap Ring

UER209 bearing is a normal-duty ball bearing insert with a snap ring made to C3 precision standards and utilizes a Tru-Loc devise to secure to a 45mm shaft. Our UER209 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UER209 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UER209 bearings, contact our customer service and, we will be happy to assist you!

UER209 Bearing Dimensions

• Part #: UER 209
• Shaft Diameter (d): 45mm
• Setscrew Used: M5 x 0.8
• Dimension (D): 85.0mm
• Dimension (Bi): 50.2mm
• Dimension (Be): 27.8mm
• Dimension (N): 19.0mm
• Dimension (M): 30.2mm
• Dimension (W): 74.0mm
• Dimension (K): 11.0mm
• Dimension (A): 1.7mm
• Dimension (AN): 3.2mm
• Dimension (Y): 91.6mm
• Dimension (T): 7.5mm
• Dynamic Load Rating (kN): 31.85
• Static Load Rating (kN): 20.80
• Weight (kg): 0.8
