UER206 Insert Bearing | 30mm Insert Bearing With Snap Ring

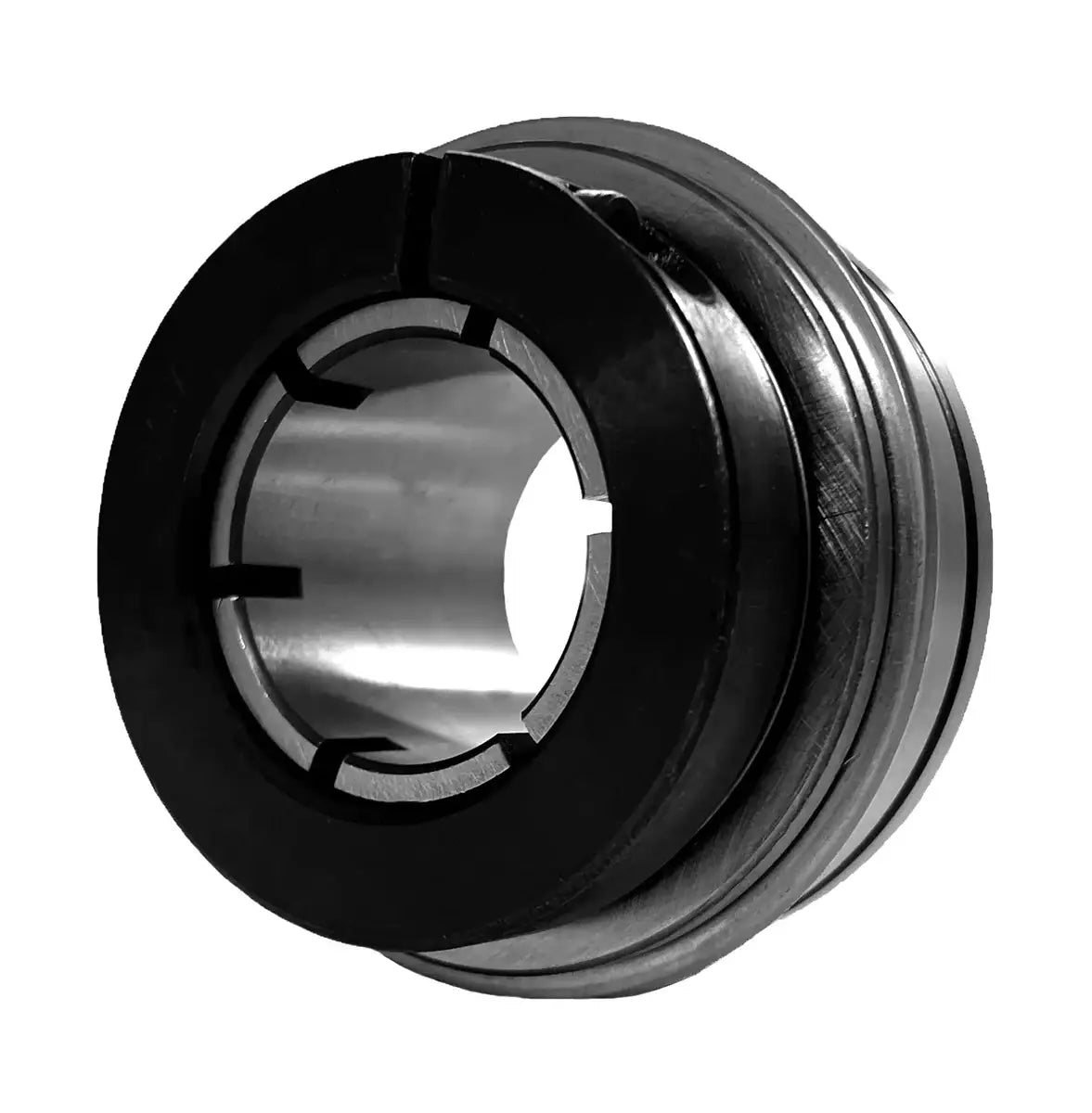

UER206 bearing is a normal-duty ball bearing insert with a snap ring made to C3 precision standards and utilizes a Tru-Loc devise to secure to a 30mm shaft. Our UER206 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UER206 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UER206 bearings, contact our customer service and, we will be happy to assist you!

UER206 Bearing Dimensions

• Part #: UER 206
• Shaft Diameter (d): 30mm
• Setscrew Used: M4 x 0.7
• Dimension (D): 62.0mm
• Dimension (Bi): 39.8mm
• Dimension (Be): 22.2mm
• Dimension (N): 15.9mm
• Dimension (M): 22.2mm
• Dimension (W): 55.5mm
• Dimension (K): 9.5mm
• Dimension (A): 1.7mm
• Dimension (AN): 3.2mm
• Dimension (Y): 67.7mm
• Dimension (T): 5.5mm
• Dynamic Load Rating (kN): 19.47
• Static Load Rating (kN): 11.43
• Weight (kg): 0.3
