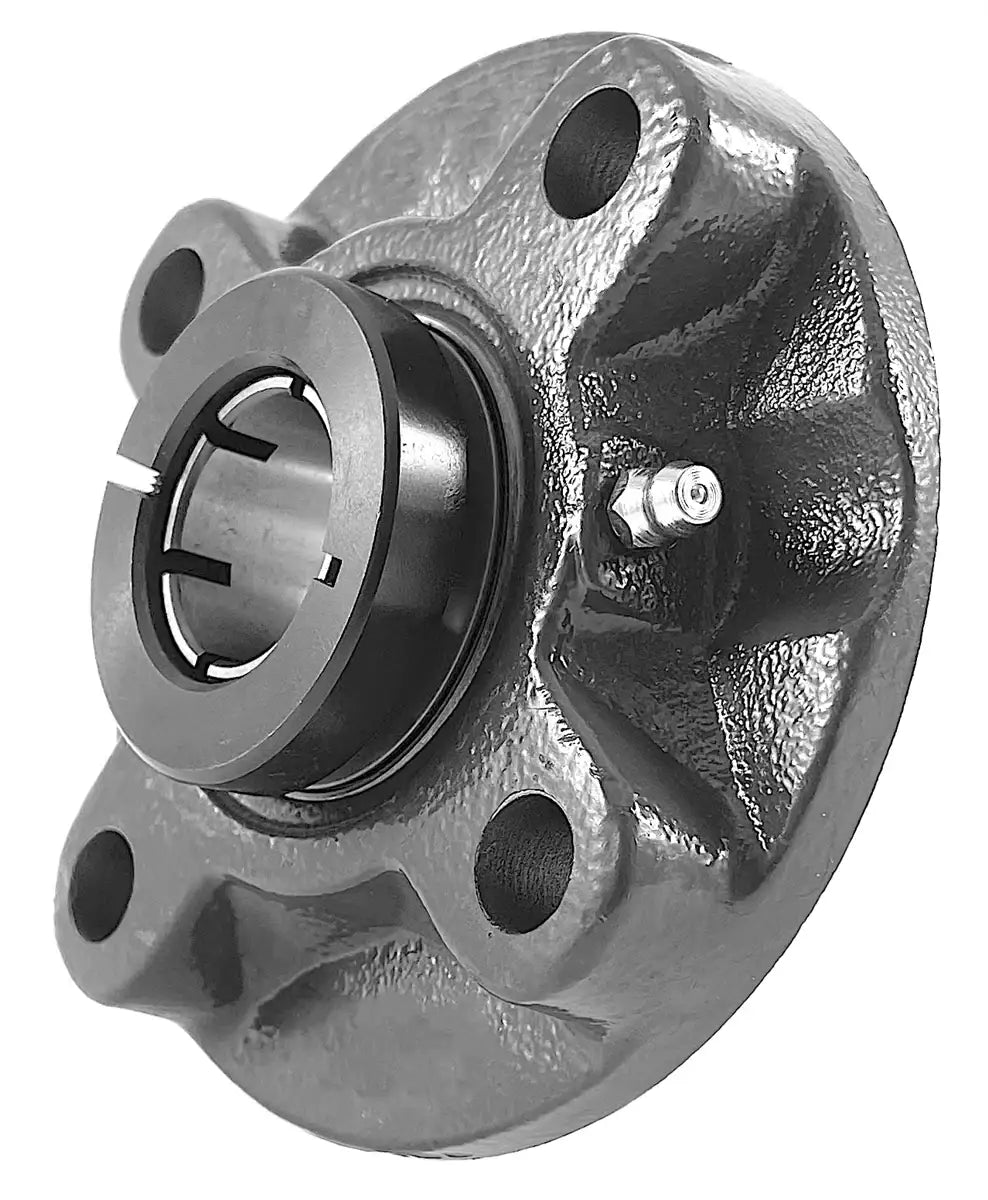

UEFC210 Bearing | 50mm 4-Bolt Flange Bearing

UEFC210 bearing is a 50mm bore four-bolt normal-duty flange bearing that utilizes a Tru-Loc device to secure to a 50mm shaft and has a metric based housing. UEFC210 flange cartridge bearings are designed for circumstances where the bearing is mounted to a surface that is perpendicular to the shaft axis. Our superior UEFC210 bearing with a 50mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UEFC210 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. UEFC210 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UEFC210 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEFC210 bearings, and we will be happy to assist you!

UEFC210 Bearing Dimensions

• Part #: UEFC 210
• Shaft Diameter (d): 50mm
• Dimension (A): 165.0mm
• Dimension (P): 138.0mm
• Dimension (E): 97.6mm
• Dimension (I): 10.0mm
• Dimension (S): 16.0mm
• Dimension (J): 12.0mm
• Dimension (K): 14.0mm
• Dimension (G): 28.0mm
• Dimension (F): 110.0mm
• Dimension (Z): 43.6mm
• Dimension (Bi): 52.6mm
• Dimension (N): 19.0mm
• Dimension (M): 32.6mm
• Bolt Used: M14
• Dynamic Load Rating (kN): 35.00
• Static Load Rating (kN): 23.71
• Bearing Insert: UE 210
• Housing Number: FC 210
• Weight (kg): 3.1
