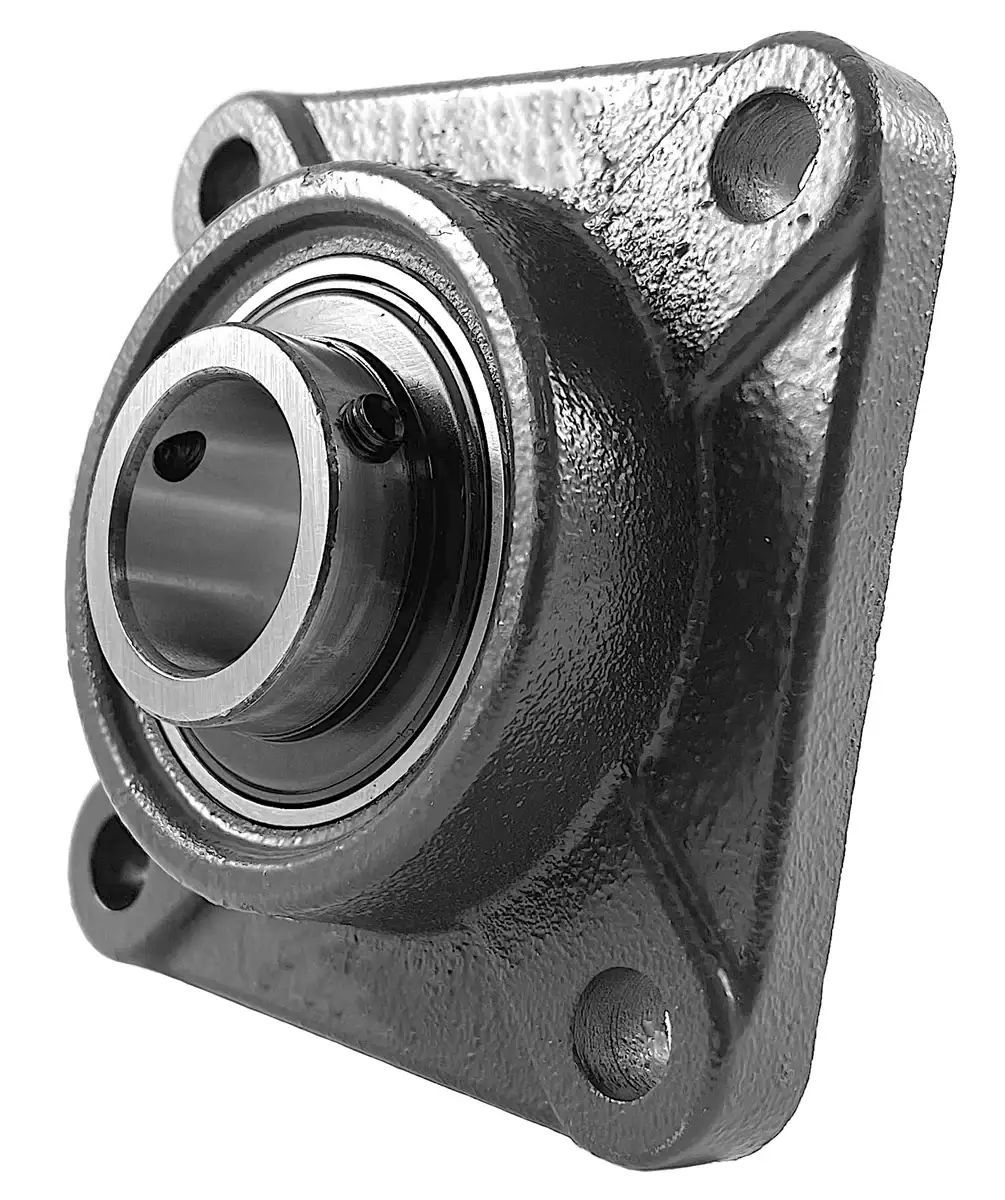

UCF211-35 Bearing | 2-3/16" 4-Bolt Flange Bearing

UCF211-35 bearing is a 2-3/16" bore four-bolt normal-duty flange bearing that utilizes set screws to secure to a 2-3/16" shaft. UCF211-35 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and poses great stability and rigidity due to the four mounting positions. Our superior UCF211-35 bearing with a 2-3/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCF211-35 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCF211-35 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCF211-35 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCF211-35 bearings, and we will be happy to assist you!

UCF211-35 Bearing Dimensions

• Part #: UCF 211-35
• Shaft Diameter (d): 2-3/16"
• Dimension (A): 6.38"
• Dimension (E): 5.13"
• Dimension (I): 0.98"
• Dimension (G): 0.79"
• Dimension (L): 1.69"
• Dimension (S): 0.69"
• Dimension (Z): 2.31"
• Dimension (Bi): 2.1890"
• Dimension (N): 0.8740"
• Dimension (M): 1.3150"
• Bolt Used: 5/8
• Dynamic Load Rating (LBS): 9,743
• Static Load Rating (LBS): 6,608
• Bearing Insert: UC 211-35
• Housing Number: F 211
• Weight (LBS): 10.1
