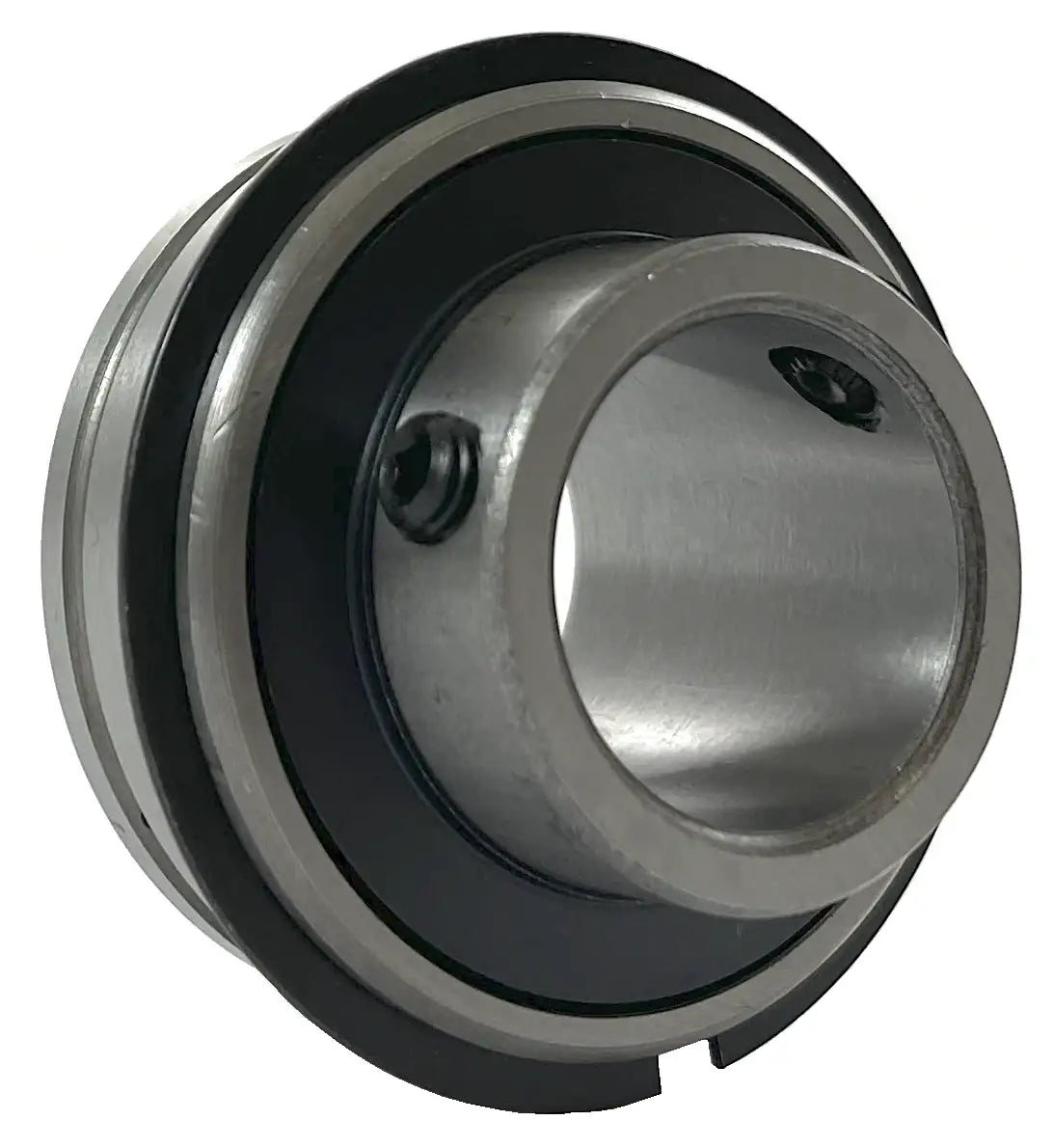

SER215 Bearing | 75mm Insert Bearing With Snap Ring
Note:
Custom Cut to Length Chain Also Available
SKU: 2278-SER-215-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
SER215 Bearing | 75mm Insert Bearing With Snap Ring Features
SER215 Bearing | 75mm Insert Bearing With Snap Ring Specifications
SER215 bearing is a normal-duty ball bearing insert with a snap ring made to C3 precision standards and utilizes set-screws to secure to a 75mm shaft. Our SER215 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our SER215 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our SER215 bearings, contact our customer service and, we will be happy to assist you!
SER215 Bearing Dimensions
- Part #: SER 215
- Shaft Diameter (d): 75mm
- Setscrew Used: M12 x 1.25
- Dimension (D): 130.0mm
- Dimension (Bi): 77.8mm
- Dimension (Be): 38.1mm
- Dimension (N): 33.3mm
- Dimension (M): 44.5mm
- Dimension (A): 3.1mm
- Dimension (AN): 4.1mm
- Dimension (Y): 139.7mm
- Dimension (G): 12.0mm
- Dimension (T): 9.1mm
- Dynamic Load Rating (kN): 66.61
- Static Load Rating (kN): 47.85
- Weight (kg): 2.4
- Part #: SER 215
- Shaft Diameter (d): 75mm
- Setscrew Used: M12 x 1.25
- Dimension (D): 130.0mm
- Dimension (Bi): 77.8mm
- Dimension (Be): 38.1mm
- Dimension (N): 33.3mm
- Dimension (M): 44.5mm
- Dimension (A): 3.1mm
- Dimension (AN): 4.1mm
- Dimension (Y): 139.7mm
- Dimension (G): 12.0mm
- Dimension (T): 9.1mm
- Dynamic Load Rating (kN): 66.61
- Static Load Rating (kN): 47.85
- Weight (kg): 2.4
