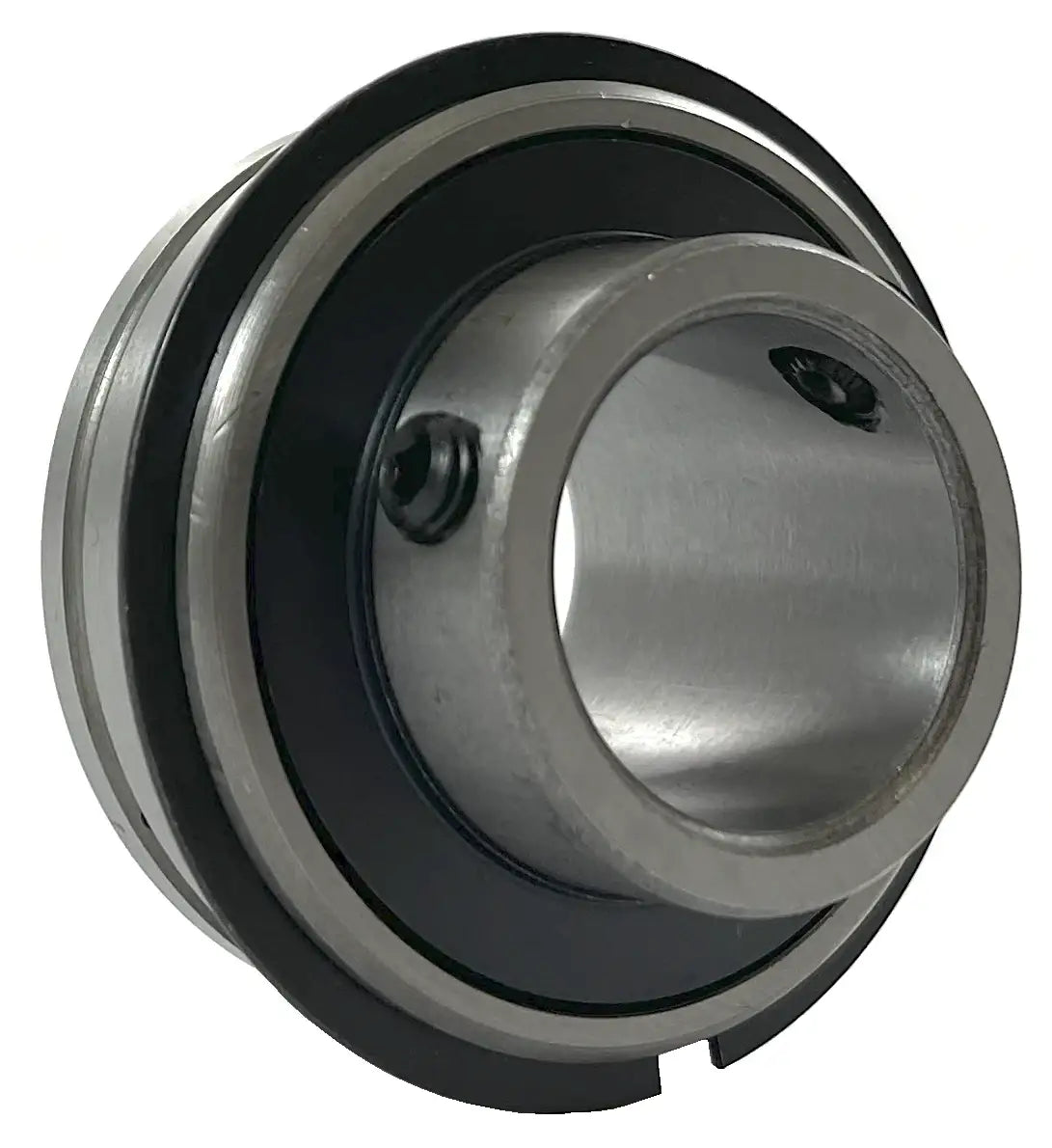

SER211-32 Insert Bearing | 2" Insert Bearing With Snap Ring

SER211-32 bearing is a normal-duty ball bearing insert with a snap ring made to C3 precision standards and utilizes set-screws to secure to a 2" shaft. Our SER211-32 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our SER211-32 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our SER211-32 bearings, contact our customer service and, we will be happy to assist you!

SER211-32 Bearing Dimensions

• Part #: SER 211-32
• Shaft Diameter (d): 2"
• Setscrew Used: 3/8-24"
• Dimension (D): 3.937"
• Dimension (Bi): 2.1890"
• Dimension (Be): 1.1890"
• Dimension (N): 0.8740"
• Dimension (M): 1.3150"
• Dimension (A): 0.0949"
• Dimension (AN): 0.1252"
• Dimension (Y): 4.1929"
• Dimension (G): 0.3937"
• Dimension (T): 0.2992"
• Dynamic Load Rating (LBS): 9,743
• Static Load Rating (LBS): 6,608
• Weight (LBS): 2.7
