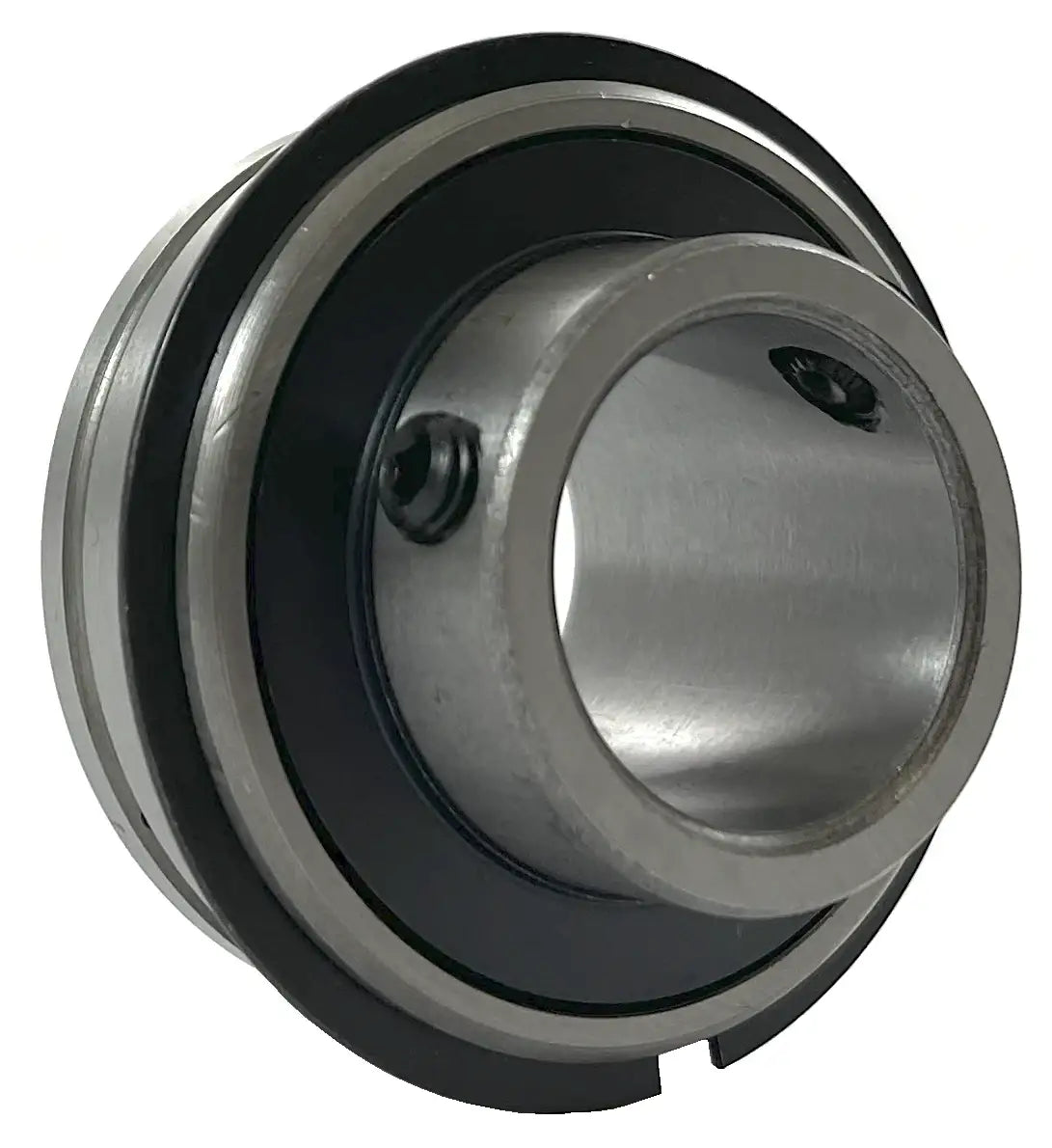

SER209 Insert Bearing | 45mm Insert Bearing With Snap Ring
Note:
Custom Cut to Length Chain Also Available
SKU: 2278-SER-209-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
SER209 Insert Bearing | 45mm Insert Bearing With Snap Ring Features
SER209 Insert Bearing | 45mm Insert Bearing With Snap Ring Specifications
SER209 bearing is a normal-duty ball bearing insert with a snap ring made to C3 precision standards and utilizes set-screws to secure to a 45mm shaft. Our SER209 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our SER209 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our SER209 bearings, contact our customer service and, we will be happy to assist you!
SER209 Bearing Dimensions
- Part #: SER 209
- Shaft Diameter (d): 45mm
- Setscrew Used: M8 x 1
- Dimension (D): 85.0mm
- Dimension (Bi): 49.2mm
- Dimension (Be): 27.8mm
- Dimension (N): 19.0mm
- Dimension (M): 30.2mm
- Dimension (A): 1.7mm
- Dimension (AN): 3.2mm
- Dimension (Y): 91.6mm
- Dimension (G): 8.0mm
- Dimension (T): 7.5mm
- Dynamic Load Rating (kN): 31.85
- Static Load Rating (kN): 20.80
- Weight (kg): 1.0
- Part #: SER 209
- Shaft Diameter (d): 45mm
- Setscrew Used: M8 x 1
- Dimension (D): 85.0mm
- Dimension (Bi): 49.2mm
- Dimension (Be): 27.8mm
- Dimension (N): 19.0mm
- Dimension (M): 30.2mm
- Dimension (A): 1.7mm
- Dimension (AN): 3.2mm
- Dimension (Y): 91.6mm
- Dimension (G): 8.0mm
- Dimension (T): 7.5mm
- Dynamic Load Rating (kN): 31.85
- Static Load Rating (kN): 20.80
- Weight (kg): 1.0
