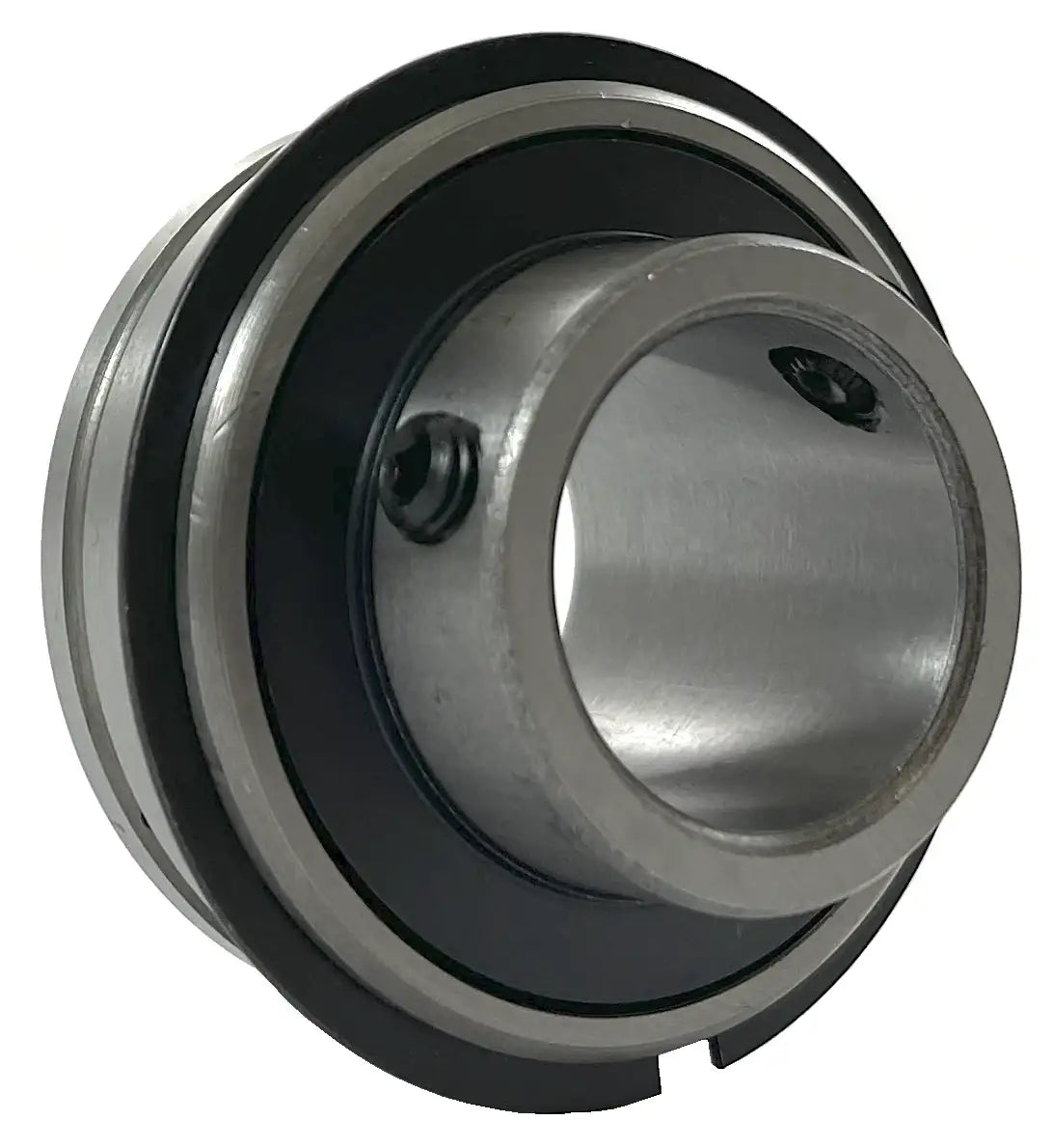

SER209-26 Insert Bearing | 1-5/8" Insert Bearing With Snap Ring
SKU: 2278-SER-209-26-BEARING
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
SER209-26 Insert Bearing | 1-5/8" Insert Bearing With Snap Ring Description/Features
SER209-26 Insert Bearing | 1-5/8" Insert Bearing With Snap Ring Specifications
SER209-26 bearing is a normal-duty ball bearing insert with a snap ring made to C3 precision standards and utilizes set-screws to secure to a 1-5/8" shaft. Our SER209-26 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our SER209-26 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our SER209-26 bearings, contact our customer service and, we will be happy to assist you!
SER209-26 Bearing Dimensions
- Part #: SER 209-26
- Shaft Diameter (d): 1-5/8"
- Setscrew Used: 5/16-24"
- Dimension (D): 3.3465"
- Dimension (Bi): 1.9370"
- Dimension (Be): 1.0945"
- Dimension (N): 0.7480"
- Dimension (M): 1.1890"
- Dimension (A): 0.0650"
- Dimension (AN): 0.1252"
- Dimension (Y): 3.6063"
- Dimension (G): 0.3150"
- Dimension (T): 0.2953"
- Dynamic Load Rating (LBS): 7,160
- Static Load Rating (LBS): 4,676
- Weight (LBS): 2.1
- Part #: SER 209-26
- Shaft Diameter (d): 1-5/8"
- Setscrew Used: 5/16-24"
- Dimension (D): 3.3465"
- Dimension (Bi): 1.9370"
- Dimension (Be): 1.0945"
- Dimension (N): 0.7480"
- Dimension (M): 1.1890"
- Dimension (A): 0.0650"
- Dimension (AN): 0.1252"
- Dimension (Y): 3.6063"
- Dimension (G): 0.3150"
- Dimension (T): 0.2953"
- Dynamic Load Rating (LBS): 7,160
- Static Load Rating (LBS): 4,676
- Weight (LBS): 2.1
