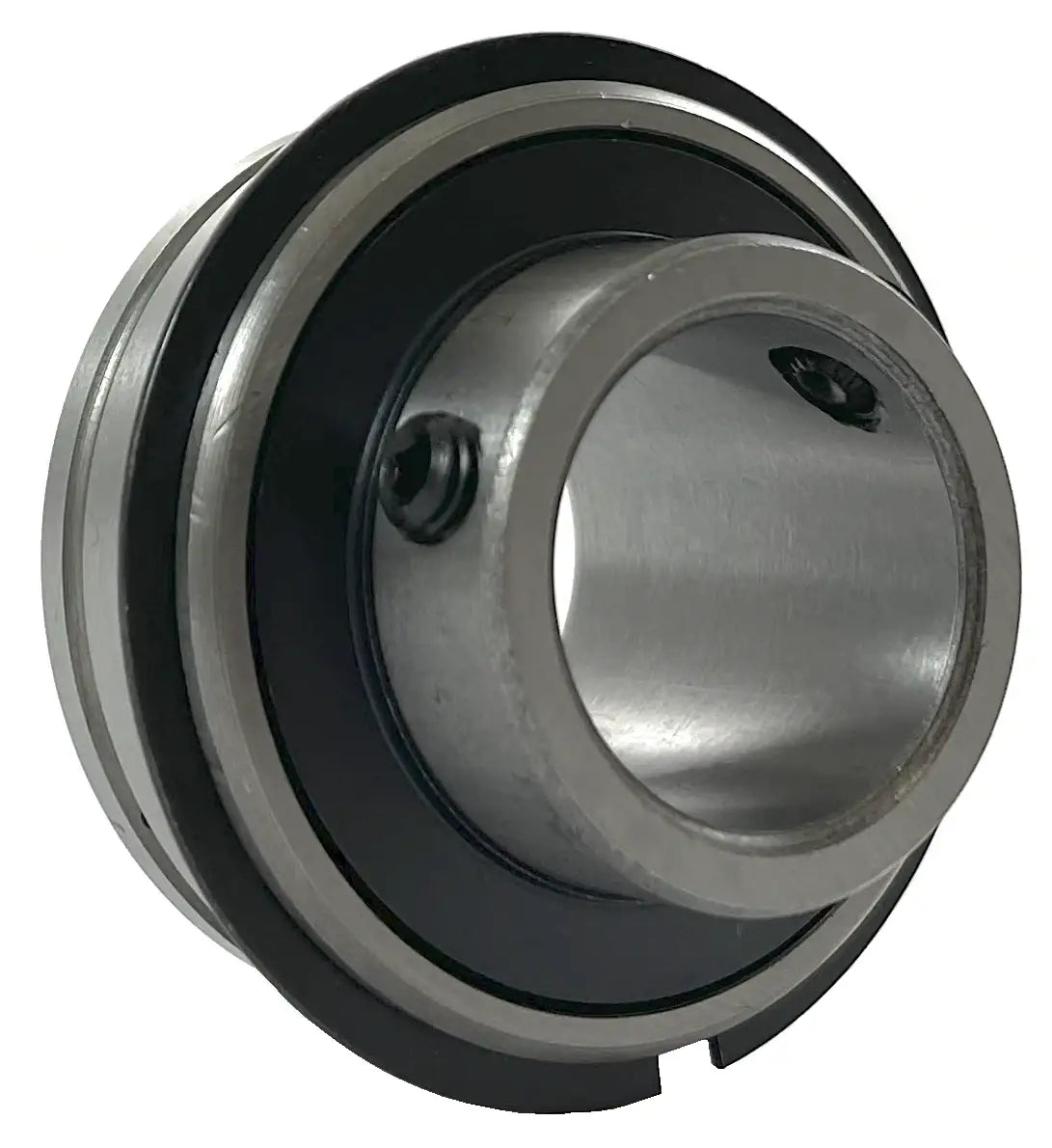

SER208 Insert Bearing | 40mm Insert Bearing With Snap Ring
Note:
Custom Cut to Length Chain Also Available
$43.99
SKU: 2278-SER-208-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
SER208 Insert Bearing | 40mm Insert Bearing With Snap Ring Features
SER208 Insert Bearing | 40mm Insert Bearing With Snap Ring Specifications
SER208 bearing is a normal-duty ball bearing insert with a snap ring made to C3 precision standards and utilizes set-screws to secure to a 40mm shaft. Our SER208 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our SER208 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our SER208 bearings, contact our customer service and, we will be happy to assist you!
SER208 Bearing Dimensions
- Part #: SER 208
- Shaft Diameter (d): 40mm
- Setscrew Used: M8 x 1
- Dimension (D): 80.0mm
- Dimension (Bi): 49.2mm
- Dimension (Be): 27.8mm
- Dimension (N): 19.0mm
- Dimension (M): 30.2mm
- Dimension (A): 1.7mm
- Dimension (AN): 3.2mm
- Dimension (Y): 86.6mm
- Dimension (G): 8.0mm
- Dimension (T): 7.5mm
- Dynamic Load Rating (kN): 29.51
- Static Load Rating (kN): 18.14
- Weight (kg): 0.9
- Part #: SER 208
- Shaft Diameter (d): 40mm
- Setscrew Used: M8 x 1
- Dimension (D): 80.0mm
- Dimension (Bi): 49.2mm
- Dimension (Be): 27.8mm
- Dimension (N): 19.0mm
- Dimension (M): 30.2mm
- Dimension (A): 1.7mm
- Dimension (AN): 3.2mm
- Dimension (Y): 86.6mm
- Dimension (G): 8.0mm
- Dimension (T): 7.5mm
- Dynamic Load Rating (kN): 29.51
- Static Load Rating (kN): 18.14
- Weight (kg): 0.9
