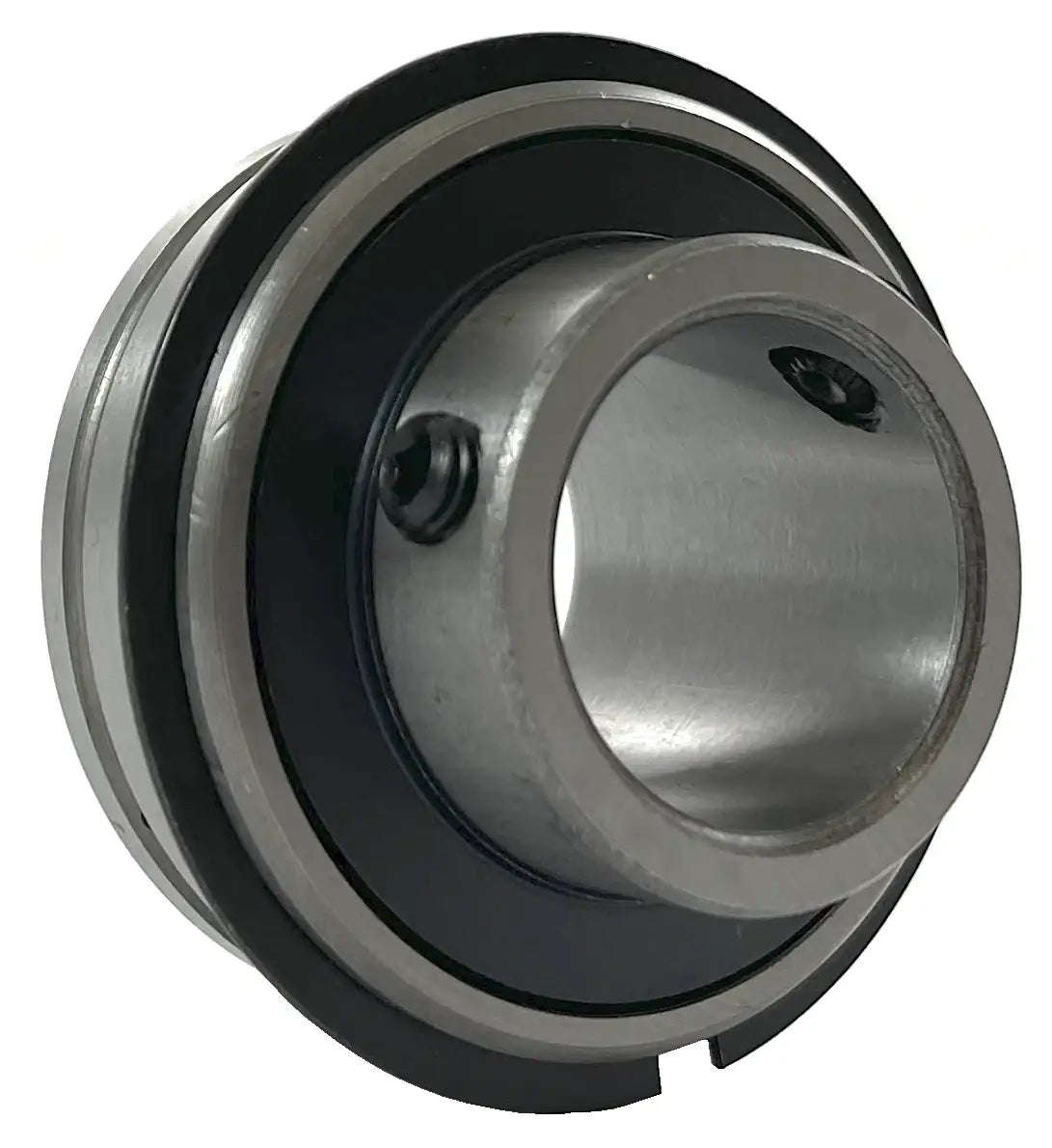

SER205 Insert Bearing | 25mm Insert Bearing With Snap Ring
Note:
Custom Cut to Length Chain Also Available
$25.99
SKU: 2278-SER-205-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
SER205 Insert Bearing | 25mm Insert Bearing With Snap Ring Features
SER205 Insert Bearing | 25mm Insert Bearing With Snap Ring Specifications
SER205 bearing is a normal-duty ball bearing insert with a snap ring made to C3 precision standards and utilizes set-screws to secure to a 25mm shaft. Our SER205 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our SER205 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our SER205 bearings, contact our customer service and, we will be happy to assist you!
SER205 Bearing Dimensions
- Part #: SER 205
- Shaft Diameter (d): 25mm
- Setscrew Used: M6 x 1
- Dimension (D): 52.0mm
- Dimension (Bi): 34.9mm
- Dimension (Be): 19.0mm
- Dimension (N): 13.1mm
- Dimension (M): 21.8mm
- Dimension (A): 1.1mm
- Dimension (AN): 2.4mm
- Dimension (Y): 57.9mm
- Dimension (G): 5.3mm
- Dimension (T): 5.5mm
- Dynamic Load Rating (kN): 14.04
- Static Load Rating (kN): 8.05
- Weight (kg): 0.3
- Part #: SER 205
- Shaft Diameter (d): 25mm
- Setscrew Used: M6 x 1
- Dimension (D): 52.0mm
- Dimension (Bi): 34.9mm
- Dimension (Be): 19.0mm
- Dimension (N): 13.1mm
- Dimension (M): 21.8mm
- Dimension (A): 1.1mm
- Dimension (AN): 2.4mm
- Dimension (Y): 57.9mm
- Dimension (G): 5.3mm
- Dimension (T): 5.5mm
- Dynamic Load Rating (kN): 14.04
- Static Load Rating (kN): 8.05
- Weight (kg): 0.3
