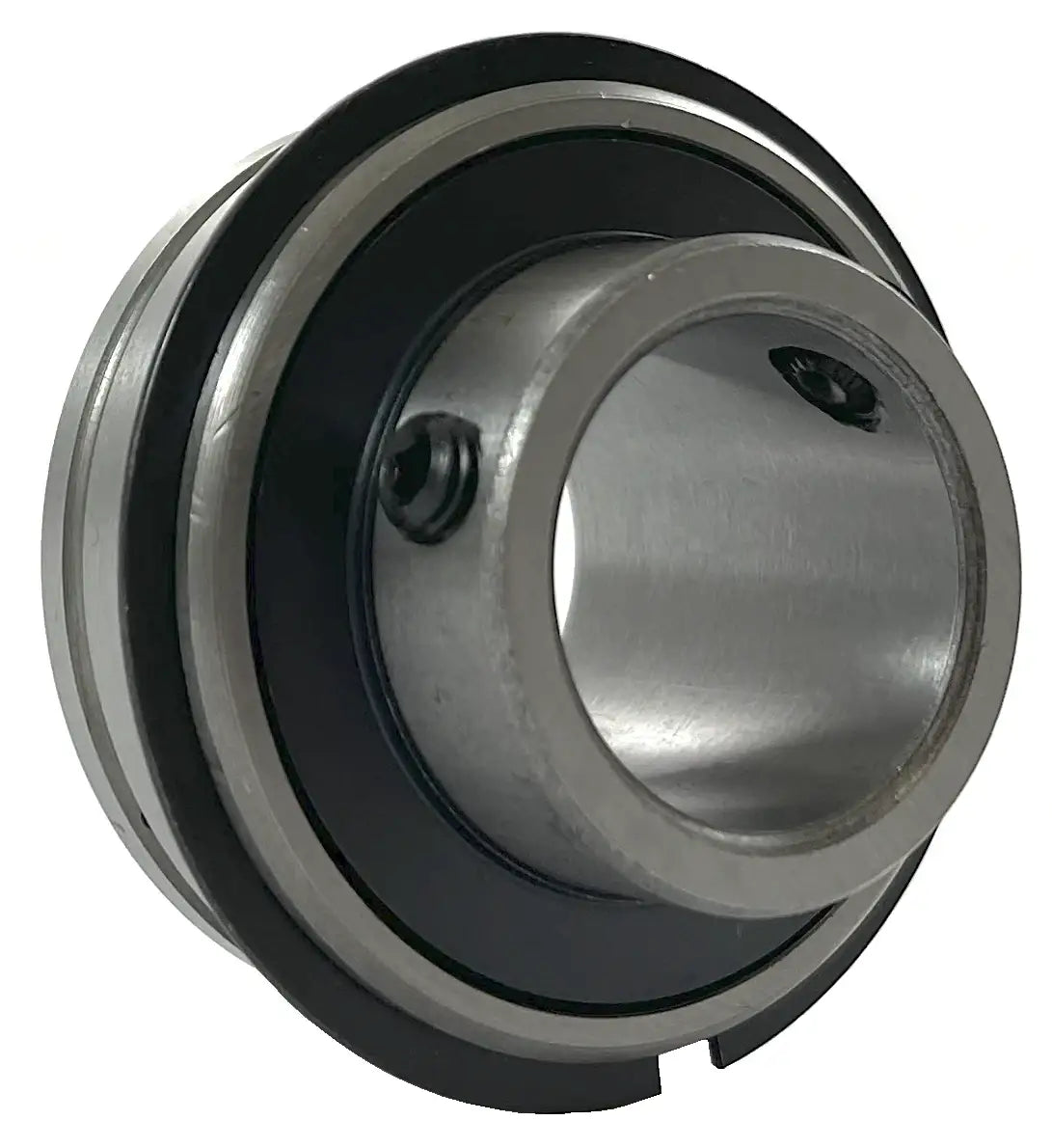

SER202-10 Insert Bearing | 5/8" Insert Bearing With Snap Ring

SER202-10 bearing is a normal-duty ball bearing insert with a snap ring made to C3 precision standards and utilizes set-screws to secure to a 5/8" shaft. Our SER202-10 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our SER202-10 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our SER202-10 bearings, contact our customer service and, we will be happy to assist you!

SER202-10 Bearing Dimensions

• Part #: SER 202-10
• Shaft Diameter (d): 5/8"
• Setscrew Used: 1/4-28"
• Dimension (D): 1.8504"
• Dimension (Bi): 1.2205"
• Dimension (Be): 0.6260"
• Dimension (N): 0.4055"
• Dimension (M): 0.8150"
• Dimension (A): 0.0421"
• Dimension (AN): 0.0937"
• Dimension (Y): 2.0748"
• Dimension (G): 0.1969"
• Dimension (T): 0.1594"
• Dynamic Load Rating (LBS): 2,147
• Static Load Rating (LBS): 1,075
• Weight (LBS): 0.6
