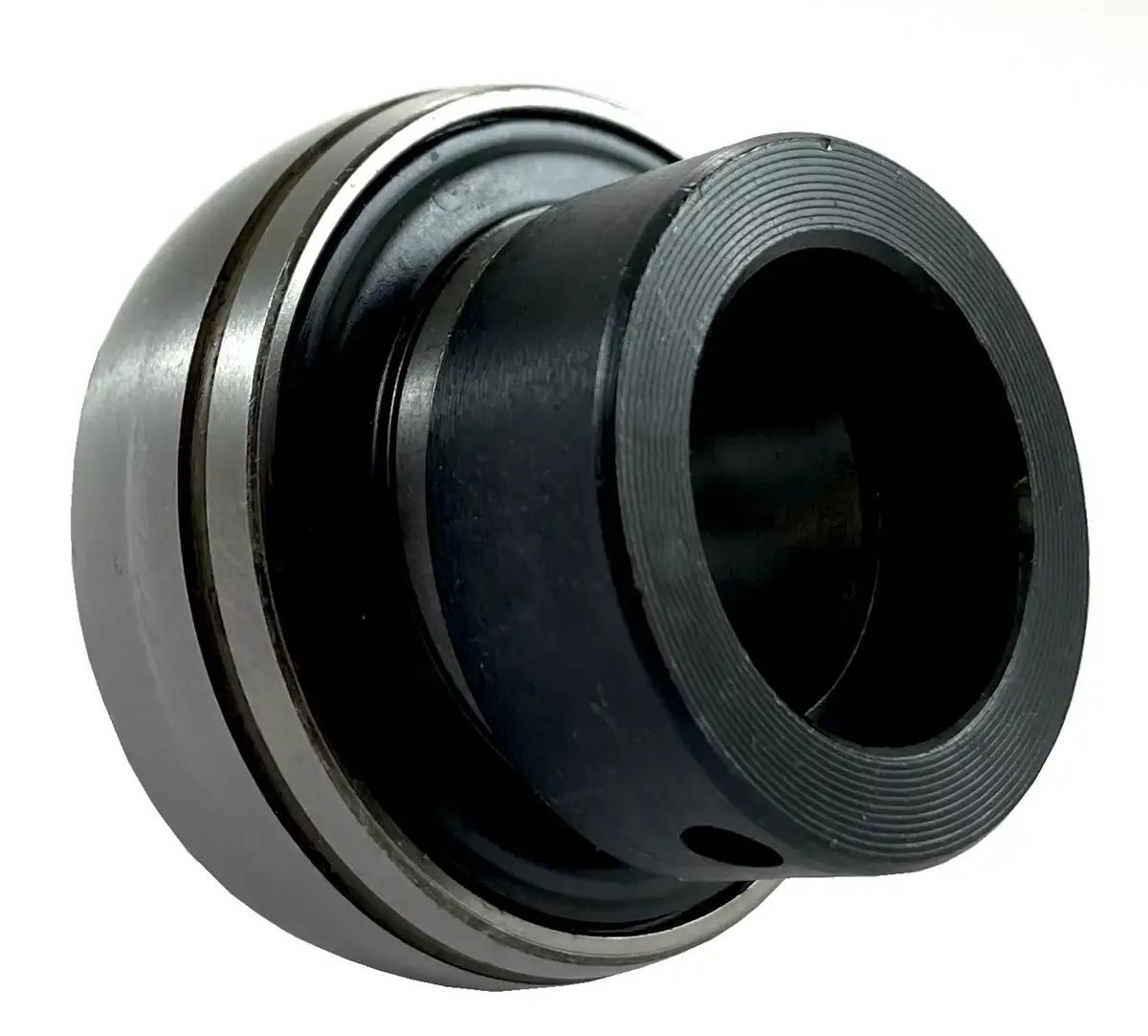

HCW203 Bearing | 17mm Eccentric Locking Bearing
Note:
Custom Cut to Length Chain Also Available
$39.99
SKU: 2278-HCW-203-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
HCW203 Bearing | 17mm Eccentric Locking Bearing Features
HCW203 Bearing | 17mm Eccentric Locking Bearing Specifications
HCW203 bearing is a normal-duty ball bearing insert made to C3 precision standards and utilizes an eccentric locking collar for securing a 17mm shaft. Our HCW203 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our HCW203 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our HCW203 bearings, contact our customer service and, we will be happy to assist you!
HCW203 Bearing Dimensions
- Part #: HCW 203
- Shaft Diameter (d): 17mm
- Setscrew Used: M6 x 1
- Dimension (D): 40.0mm
- Dimension (Bi): 37.3mm
- Dimension (Be): 14.0mm
- Dimension (N): 13.9mm
- Dimension (M): 13.9mm
- Dimension (T): 3.8mm
- Dimension (W): 28.6mm
- Dimension (K): 13.5mm
- Dimension (G): 5.0mm
- Dynamic Load Rating (kN): 9.55
- Static Load Rating (kN): 4.78
- Weight (kg): 0.1
- Part #: HCW 203
- Shaft Diameter (d): 17mm
- Setscrew Used: M6 x 1
- Dimension (D): 40.0mm
- Dimension (Bi): 37.3mm
- Dimension (Be): 14.0mm
- Dimension (N): 13.9mm
- Dimension (M): 13.9mm
- Dimension (T): 3.8mm
- Dimension (W): 28.6mm
- Dimension (K): 13.5mm
- Dimension (G): 5.0mm
- Dynamic Load Rating (kN): 9.55
- Static Load Rating (kN): 4.78
- Weight (kg): 0.1
