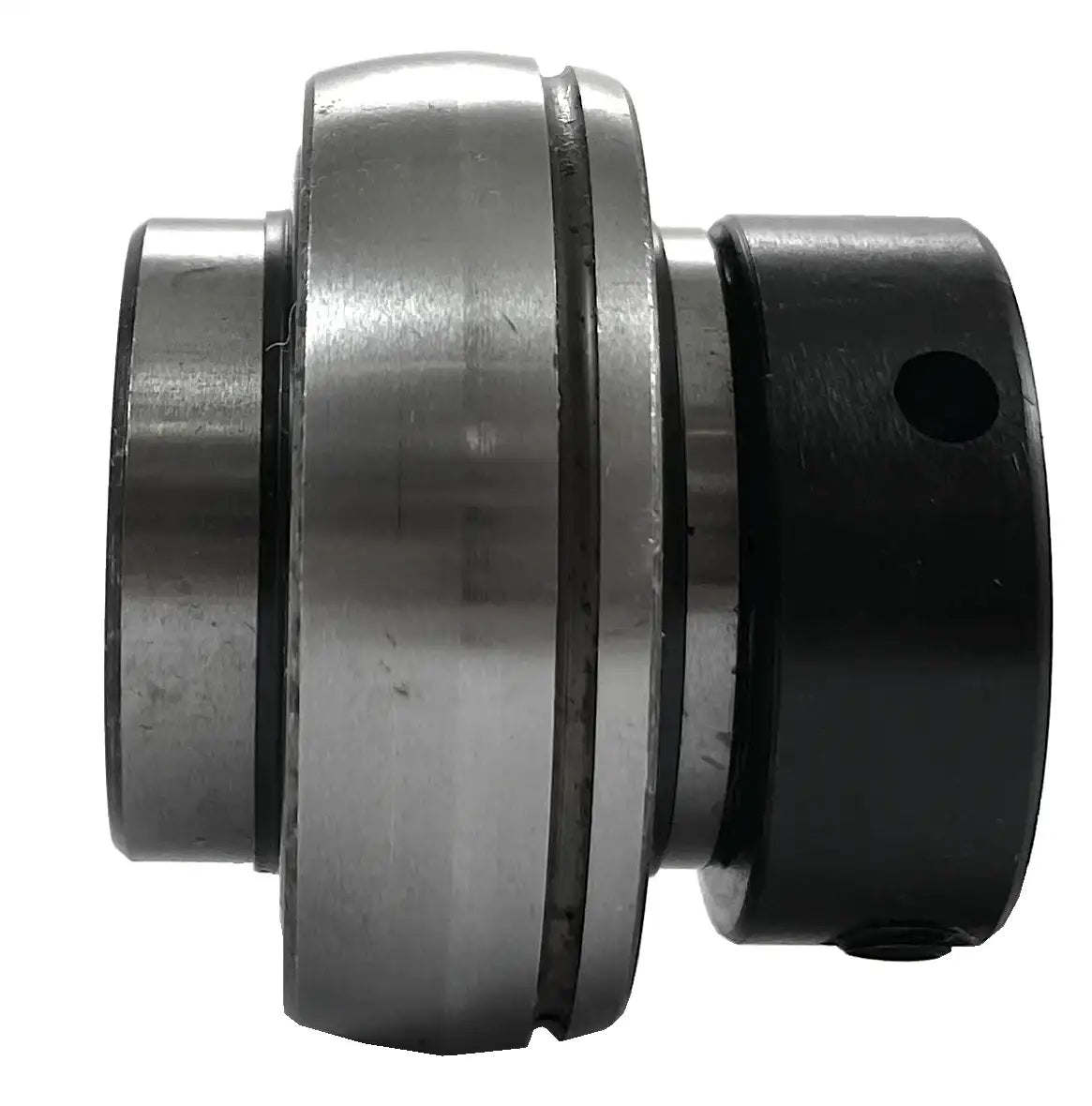

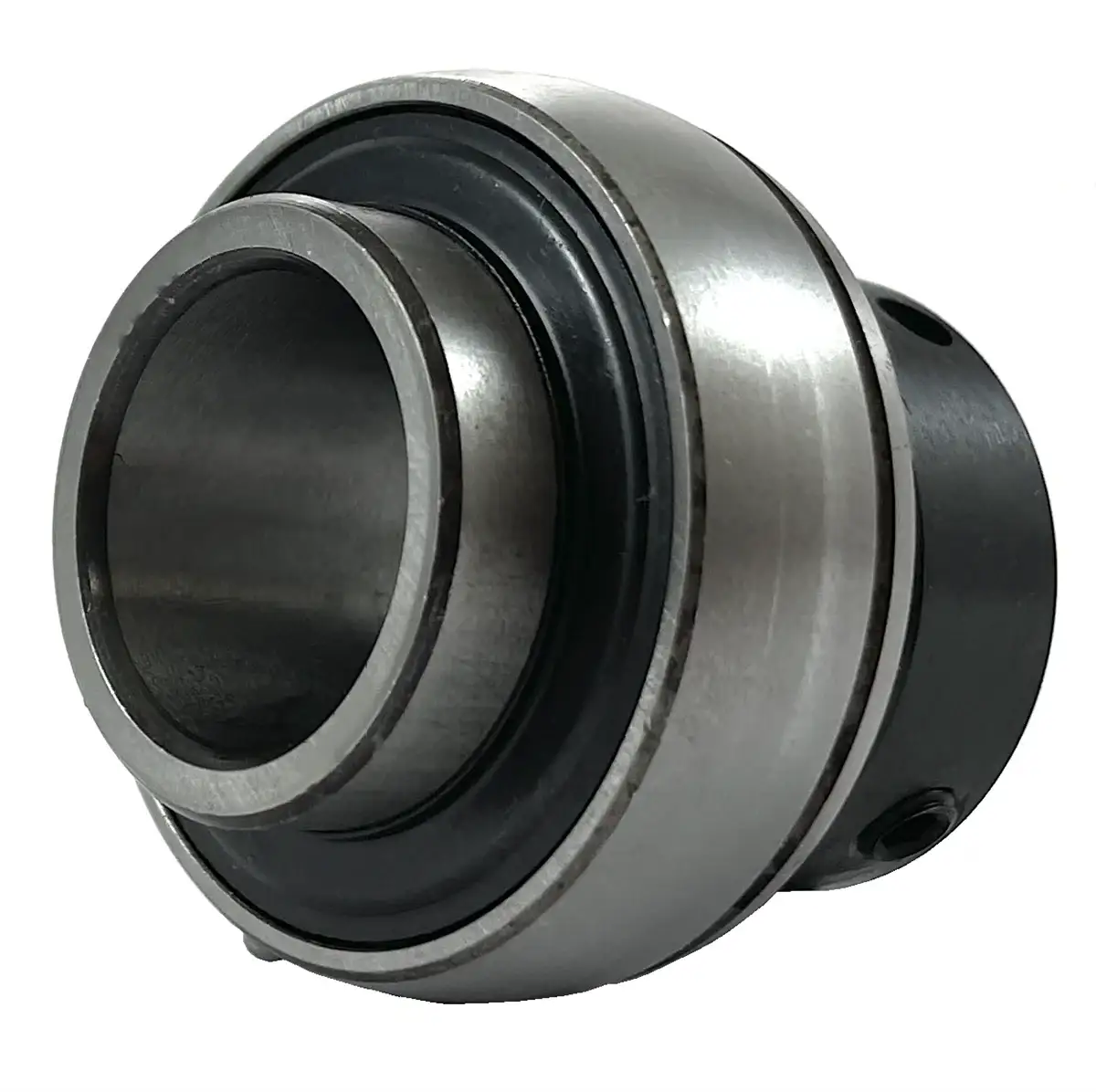

HCW201 bearing is a normal-duty ball bearing insert made to C3 precision standards and utilizes an eccentric locking collar for securing a 12mm shaft. Our HCW201 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our HCW201 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our HCW201 bearings, contact our customer service and, we will be happy to assist you!
HCW201 Bearing Dimensions
- Part #: HCW 201
- Shaft Diameter (d): 12mm
- Setscrew Used: M6 x 1
- Dimension (D): 40.0mm
- Dimension (Bi): 37.3mm
- Dimension (Be): 14.0mm
- Dimension (N): 13.9mm
- Dimension (M): 13.9mm
- Dimension (T): 3.8mm
- Dimension (W): 28.6mm
- Dimension (K): 13.5mm
- Dimension (G): 5.0mm
- Dynamic Load Rating (kN): 9.55
- Static Load Rating (kN): 4.78
- Weight (kg): 0.1
Feature
- Premium Quality Bearing
- Made to C3 Precision Tolerances
- High Performance
- Durable and Long Lasting
- Interchanges With Other Brands
- Part #: HCW 201
- Shaft Diameter (d): 12mm
- Setscrew Used: M6 x 1
- Dimension (D): 40.0mm
- Dimension (Bi): 37.3mm
- Dimension (Be): 14.0mm
- Dimension (N): 13.9mm
- Dimension (M): 13.9mm
- Dimension (T): 3.8mm
- Dimension (W): 28.6mm
- Dimension (K): 13.5mm
- Dimension (G): 5.0mm
- Dynamic Load Rating (kN): 9.55
- Static Load Rating (kN): 4.78
- Weight (kg): 0.1
