Power Transmission > Bearings > Mounted Bearings > Insert Bearings

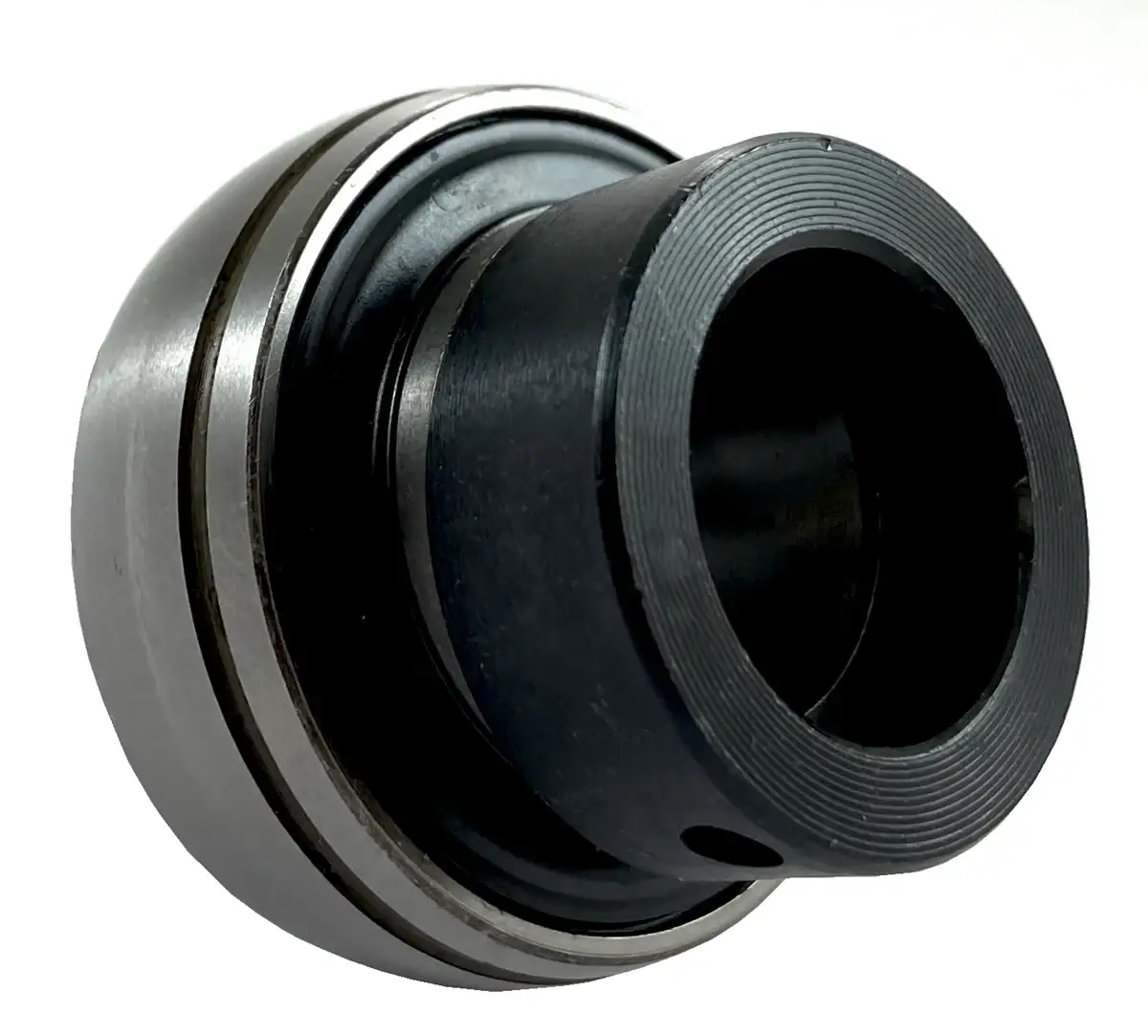

HC214-43 Bearing | 2-11/16" Eccentric Locking Bearing
Note:
Custom Cut to Length Chain Also Available
$211.99
SKU: 2278-HC-214-43-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
HC214-43 Bearing | 2-11/16" Eccentric Locking Bearing Features
HC214-43 Bearing | 2-11/16" Eccentric Locking Bearing Specifications
HC214-43 bearing is a normal-duty ball bearing insert made to C3 precision standards and utilizes an eccentric locking collar for securing a 2-11/16" shaft. Our HC214-43 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our HC214-43 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our HC214-43 bearings, contact our customer service and, we will be happy to assist you!
HC214-43 Bearing Dimensions
- Part #: HC 214-43
- Shaft Diameter (d): 2-11/16"
- Setscrew Used: 3/8-24
- Dimension (D): 4.9213"
- Dimension (Bi): 3.3740"
- Dimension (Be): 1.1811"
- Dimension (N): 1.3425"
- Dimension (M): 1.3425"
- Dimension (T): 0.3504"
- Dimension (W): 3.543"
- Dimension (K): 0.925"
- Dimension (G): 0.3346"
- Dynamic Load Rating (LBS): 13.981
- Static Load Rating (LBS): 9.869
- Weight (LBS): 5.1
- Part #: HC 214-43
- Shaft Diameter (d): 2-11/16"
- Setscrew Used: 3/8-24
- Dimension (D): 4.9213"
- Dimension (Bi): 3.3740"
- Dimension (Be): 1.1811"
- Dimension (N): 1.3425"
- Dimension (M): 1.3425"
- Dimension (T): 0.3504"
- Dimension (W): 3.543"
- Dimension (K): 0.925"
- Dimension (G): 0.3346"
- Dynamic Load Rating (LBS): 13.981
- Static Load Rating (LBS): 9.869
- Weight (LBS): 5.1
