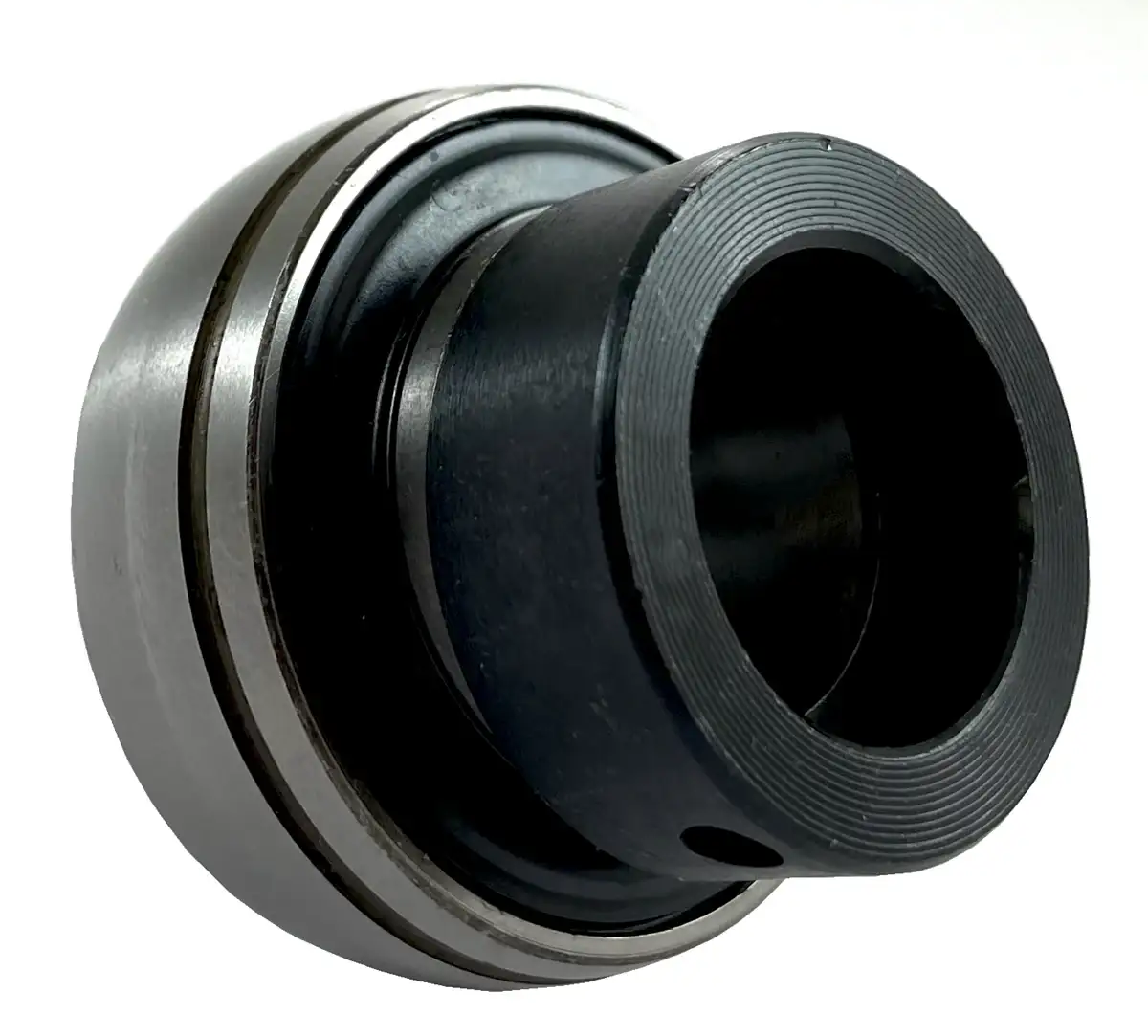

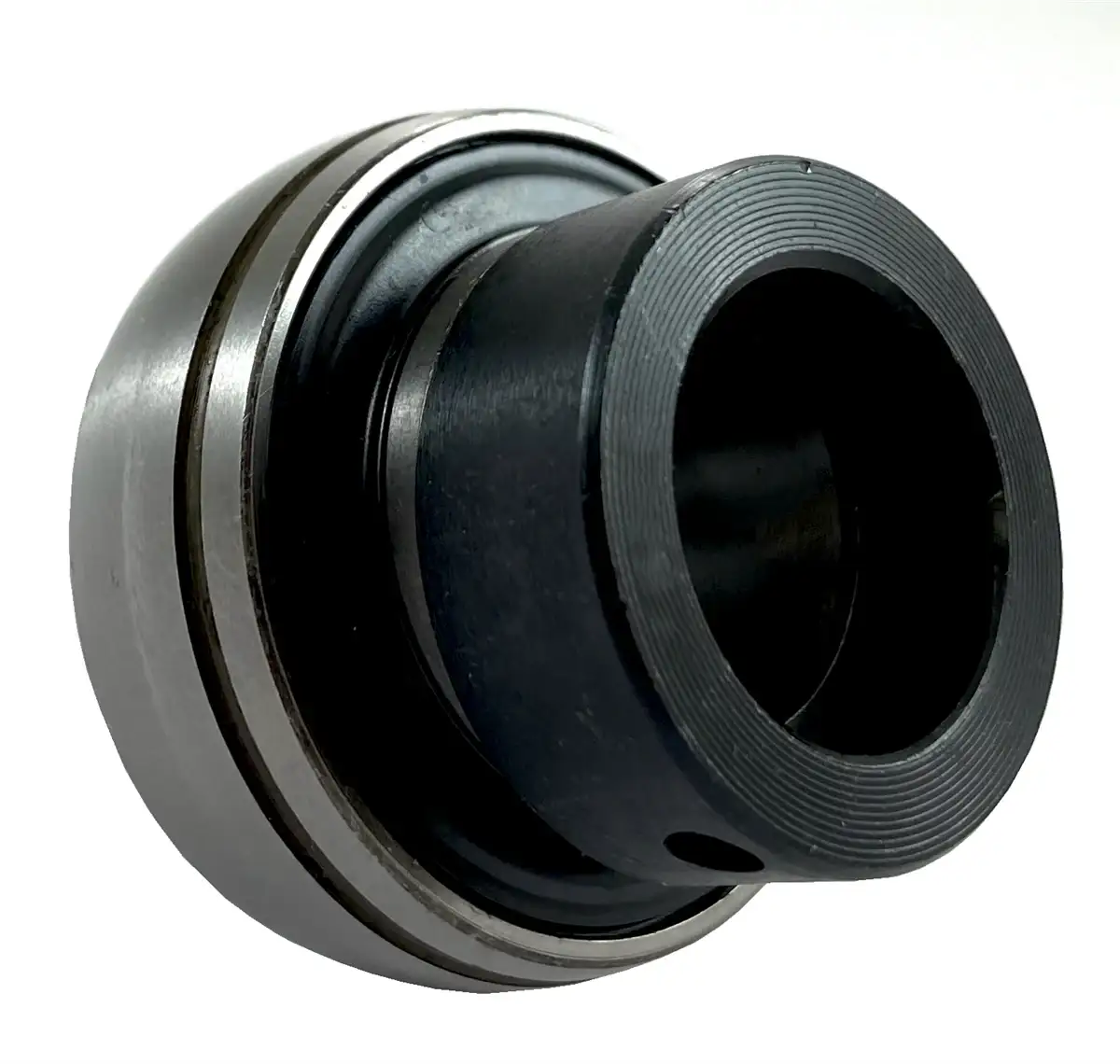

HC212 Bearing | 60mm Eccentric Locking Bearing
Note:
Custom Cut to Length Chain Also Available
$120.99
SKU: 2278-HC-212-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
HC212 Bearing | 60mm Eccentric Locking Bearing Features
HC212 Bearing | 60mm Eccentric Locking Bearing Specifications
HC212 bearing is a normal-duty ball bearing insert made to C3 precision standards and utilizes an eccentric locking collar for securing a 60mm shaft. Our HC212 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our HC212 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our HC212 bearings, contact our customer service and, we will be happy to assist you!
HC212 Bearing Dimensions
- Part #: HC 212
- Shaft Diameter (d): 60mm
- Setscrew Used: M10 x 1.25
- Dimension (D): 110.0mm
- Dimension (Bi): 77.8mm
- Dimension (Be): 24.0mm
- Dimension (N): 31.0mm
- Dimension (M): 30.9mm
- Dimension (T): 7.6mm
- Dimension (W): 84.2mm
- Dimension (K): 22.3mm
- Dimension (G): 8.0mm
- Dynamic Load Rating (kN): 47.69
- Static Load Rating (kN): 33.43
- Weight (kg): 1.9
- Part #: HC 212
- Shaft Diameter (d): 60mm
- Setscrew Used: M10 x 1.25
- Dimension (D): 110.0mm
- Dimension (Bi): 77.8mm
- Dimension (Be): 24.0mm
- Dimension (N): 31.0mm
- Dimension (M): 30.9mm
- Dimension (T): 7.6mm
- Dimension (W): 84.2mm
- Dimension (K): 22.3mm
- Dimension (G): 8.0mm
- Dynamic Load Rating (kN): 47.69
- Static Load Rating (kN): 33.43
- Weight (kg): 1.9
