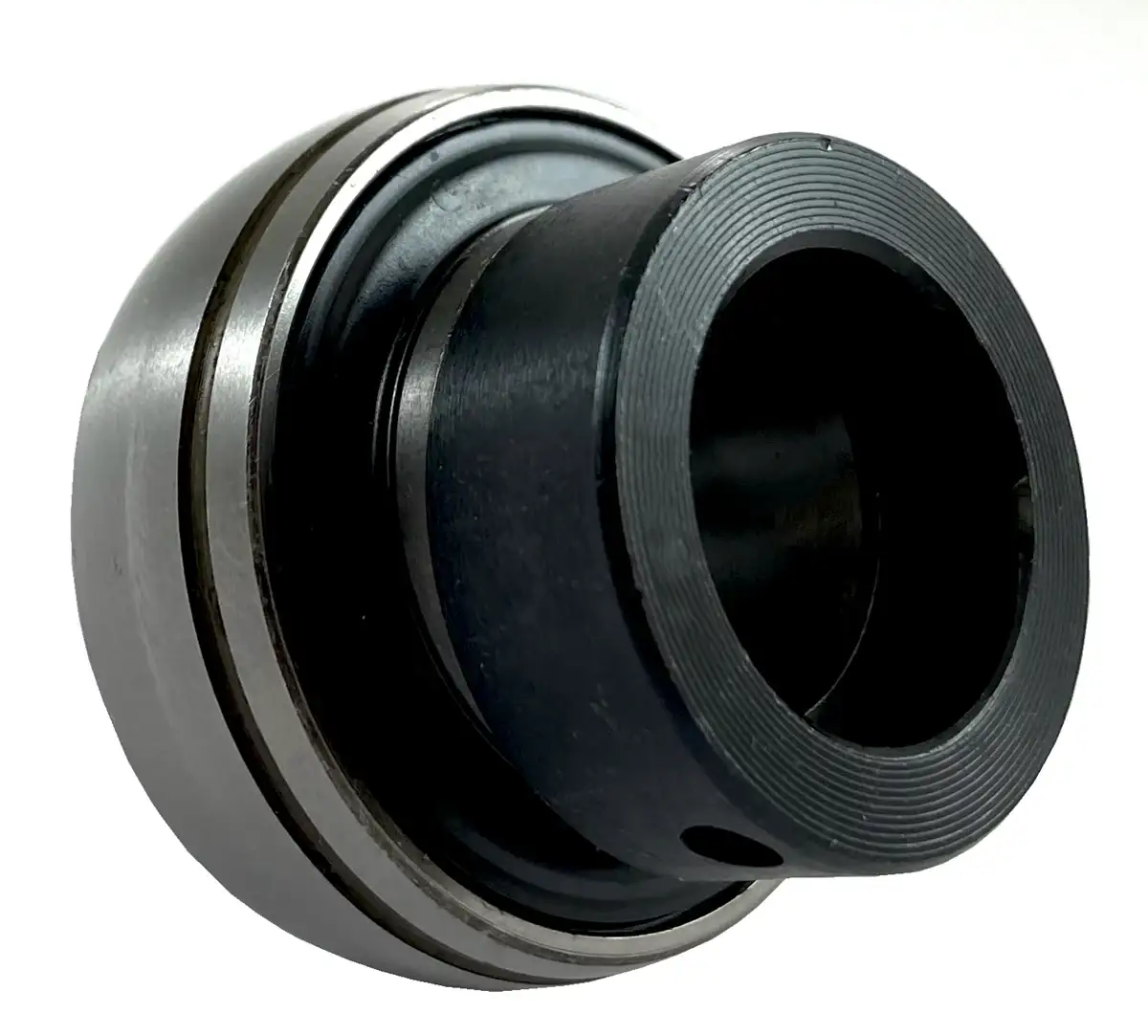

HC209 Bearing | 45mm Eccentric Locking Bearing
Note:
Custom Cut to Length Chain Also Available
$59.99
SKU: 2278-HC-209-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
HC209 Bearing | 45mm Eccentric Locking Bearing Features
HC209 Bearing | 45mm Eccentric Locking Bearing Specifications
HC209 bearing is a normal-duty ball bearing insert made to C3 precision standards and utilizes an eccentric locking collar for securing a 45mm shaft. Our HC209 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our HC209 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our HC209 bearings, contact our customer service and, we will be happy to assist you!
HC209 Bearing Dimensions
- Part #: HC 209
- Shaft Diameter (d): 45mm
- Setscrew Used: M8 x 1
- Dimension (D): 85.0mm
- Dimension (Bi): 56.3mm
- Dimension (Be): 22.0mm
- Dimension (N): 21.4mm
- Dimension (M): 21.4mm
- Dimension (T): 6.4mm
- Dimension (W): 63.5mm
- Dimension (K): 18.3mm
- Dimension (G): 6.5mm
- Dynamic Load Rating (kN): 31.85
- Static Load Rating (kN): 20.80
- Weight (kg): 0.8
- Part #: HC 209
- Shaft Diameter (d): 45mm
- Setscrew Used: M8 x 1
- Dimension (D): 85.0mm
- Dimension (Bi): 56.3mm
- Dimension (Be): 22.0mm
- Dimension (N): 21.4mm
- Dimension (M): 21.4mm
- Dimension (T): 6.4mm
- Dimension (W): 63.5mm
- Dimension (K): 18.3mm
- Dimension (G): 6.5mm
- Dynamic Load Rating (kN): 31.85
- Static Load Rating (kN): 20.80
- Weight (kg): 0.8
