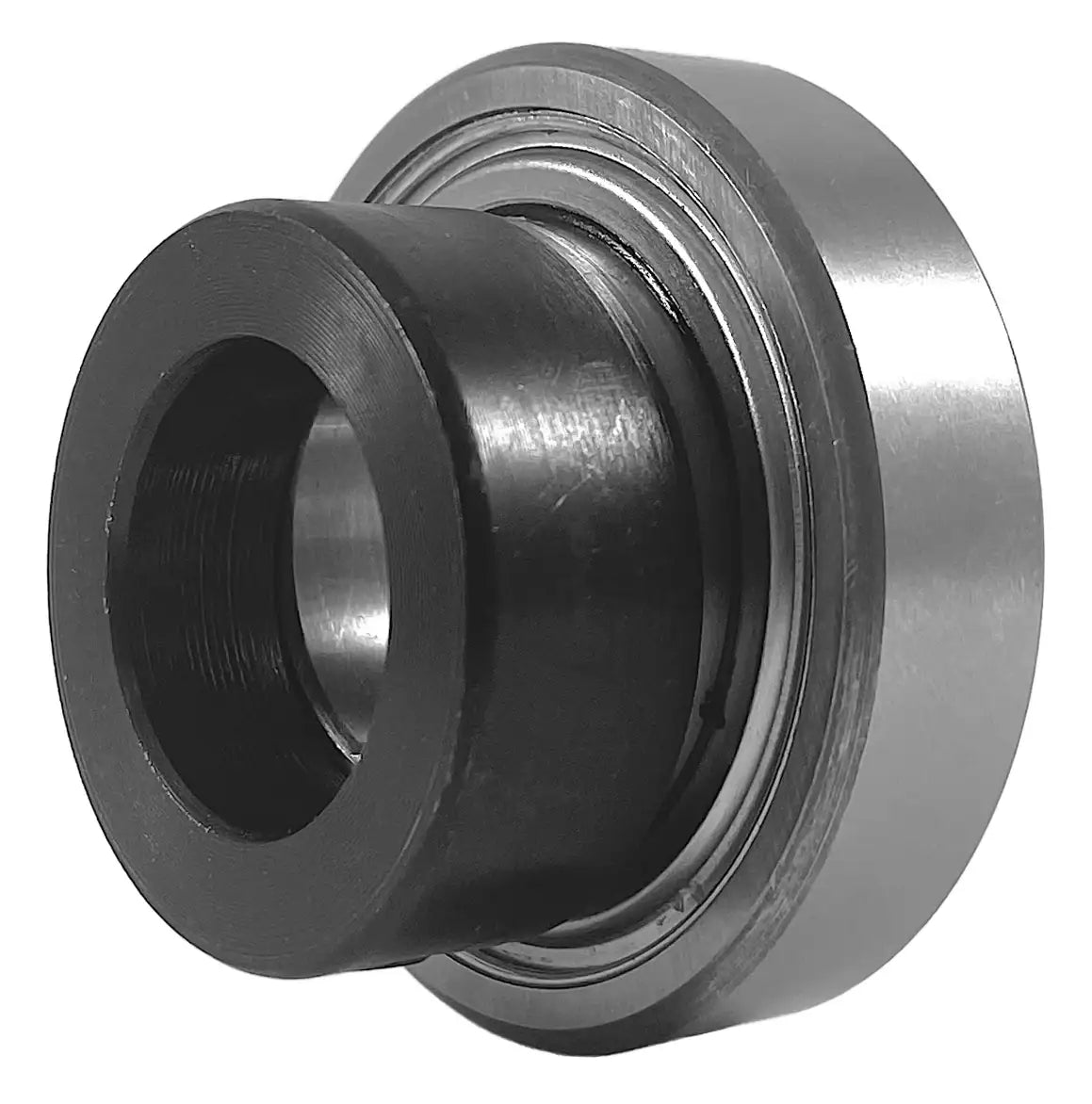

CSA212-39 Insert Bearing | 2-7/16" Insert Bearing
Note:
Custom Cut to Length Chain Also Available
SKU: 2278-CSA-212-39-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
CSA212-39 Insert Bearing | 2-7/16" Insert Bearing Features
CSA212-39 Insert Bearing | 2-7/16" Insert Bearing Specifications
CSA212-39 bearing is a light-duty ball bearing insert made to C3 precision standards and utilizes an eccentric locking collar to secure to a 2-7/16" shaft. Our CSA212-39 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our CSA212-39 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our CSA212-39 bearings, contact our customer service and, we will be happy to assist you!
CSA212-39 Bearing Dimensions
- Part #: CSA 212-39
- Shaft Diameter (d): 2-7/16"
- Setscrew Used: 3/8-24"
- Dimension (D): 4.3307"
- Dimension (Bi): 2.0906"
- Dimension (Be): 0.8661"
- Dimension (N): 0.4331"
- Dimension (M): 1.0315"
- Dimension (W): 3.315"
- Dimension (K): 0.878"
- Dimension (G): 0.3150"
- Dimension (T): 0.2953"
- Dynamic Load Rating (LBS): 10,720
- Static Load Rating (LBS): 7,516
- Weight (LBS): 4.1
- Part #: CSA 212-39
- Shaft Diameter (d): 2-7/16"
- Setscrew Used: 3/8-24"
- Dimension (D): 4.3307"
- Dimension (Bi): 2.0906"
- Dimension (Be): 0.8661"
- Dimension (N): 0.4331"
- Dimension (M): 1.0315"
- Dimension (W): 3.315"
- Dimension (K): 0.878"
- Dimension (G): 0.3150"
- Dimension (T): 0.2953"
- Dynamic Load Rating (LBS): 10,720
- Static Load Rating (LBS): 7,516
- Weight (LBS): 4.1
