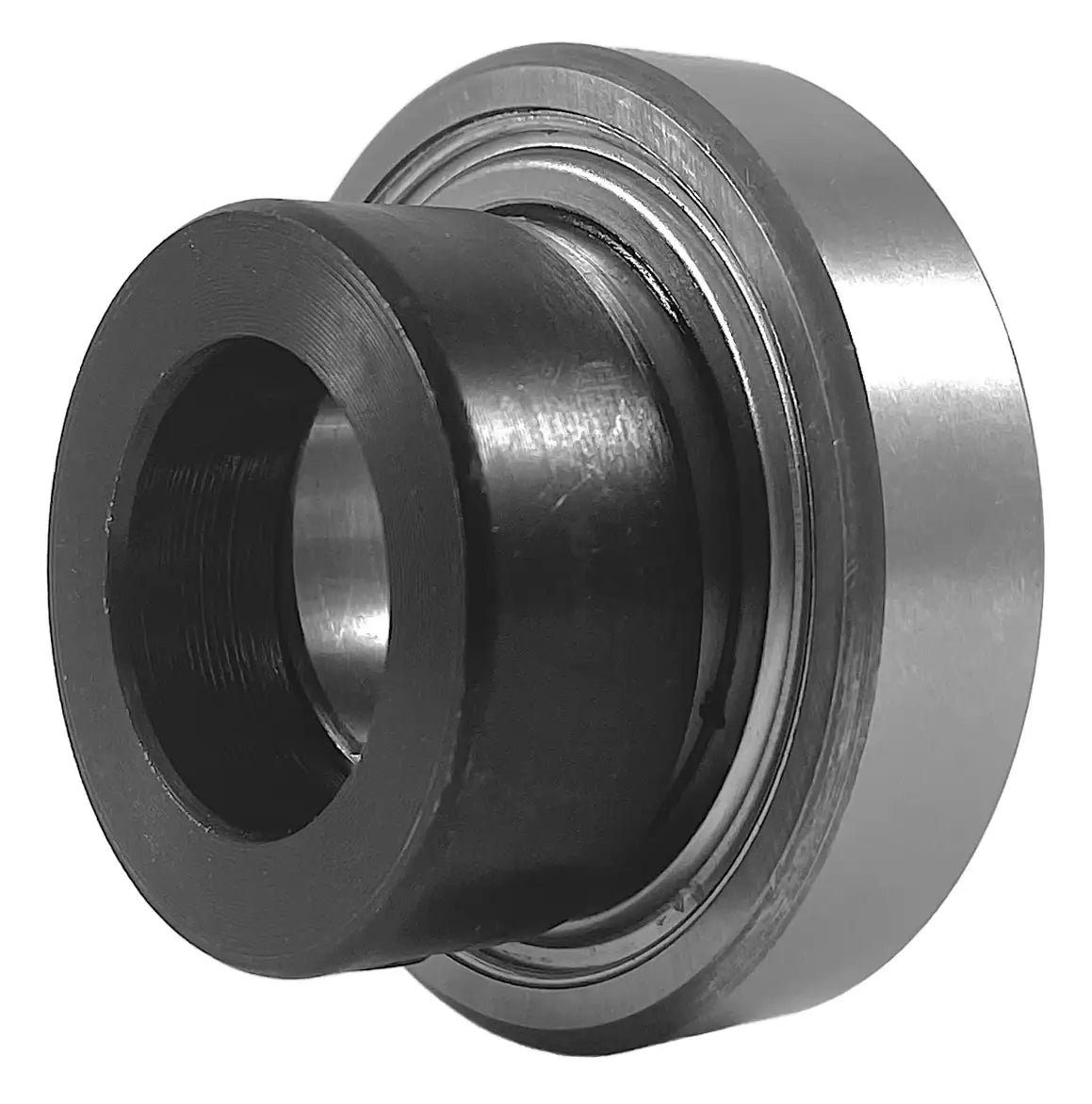

CSA209-26 Insert Bearing | 1-5/8" Insert Bearing
Note:
Custom Cut to Length Chain Also Available
SKU: 2278-CSA-209-26-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
CSA209-26 Insert Bearing | 1-5/8" Insert Bearing Features
CSA209-26 Insert Bearing | 1-5/8" Insert Bearing Specifications
CSA209-26 bearing is a light-duty ball bearing insert made to C3 precision standards and utilizes an eccentric locking collar to secure to a 1-5/8" shaft. Our CSA209-26 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our CSA209-26 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our CSA209-26 bearings, contact our customer service and, we will be happy to assist you!
CSA209-26 Bearing Dimensions
- Part #: CSA 209-26
- Shaft Diameter (d): 1-5/8"
- Setscrew Used: 5/16-24"
- Dimension (D): 3.3465"
- Dimension (Bi): 1.7205"
- Dimension (Be): 0.7480"
- Dimension (N): 0.3740"
- Dimension (M): 0.8150"
- Dimension (W): 2.500"
- Dimension (K): 0.721"
- Dimension (G): 0.2559"
- Dimension (T): 0.2402"
- Dynamic Load Rating (LBS): 7,160
- Static Load Rating (LBS): 4,676
- Weight (LBS): 1.8
- Part #: CSA 209-26
- Shaft Diameter (d): 1-5/8"
- Setscrew Used: 5/16-24"
- Dimension (D): 3.3465"
- Dimension (Bi): 1.7205"
- Dimension (Be): 0.7480"
- Dimension (N): 0.3740"
- Dimension (M): 0.8150"
- Dimension (W): 2.500"
- Dimension (K): 0.721"
- Dimension (G): 0.2559"
- Dimension (T): 0.2402"
- Dynamic Load Rating (LBS): 7,160
- Static Load Rating (LBS): 4,676
- Weight (LBS): 1.8
