Power Transmission > Bearings > Mounted Bearings > Insert Bearings
CSA208 Insert Bearing | 40mm Insert Bearing
Note:
Custom Cut to Length Chain Also Available
SKU: 2278-CSA-208-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
CSA208 Insert Bearing | 40mm Insert Bearing Features
CSA208 Insert Bearing | 40mm Insert Bearing Specifications

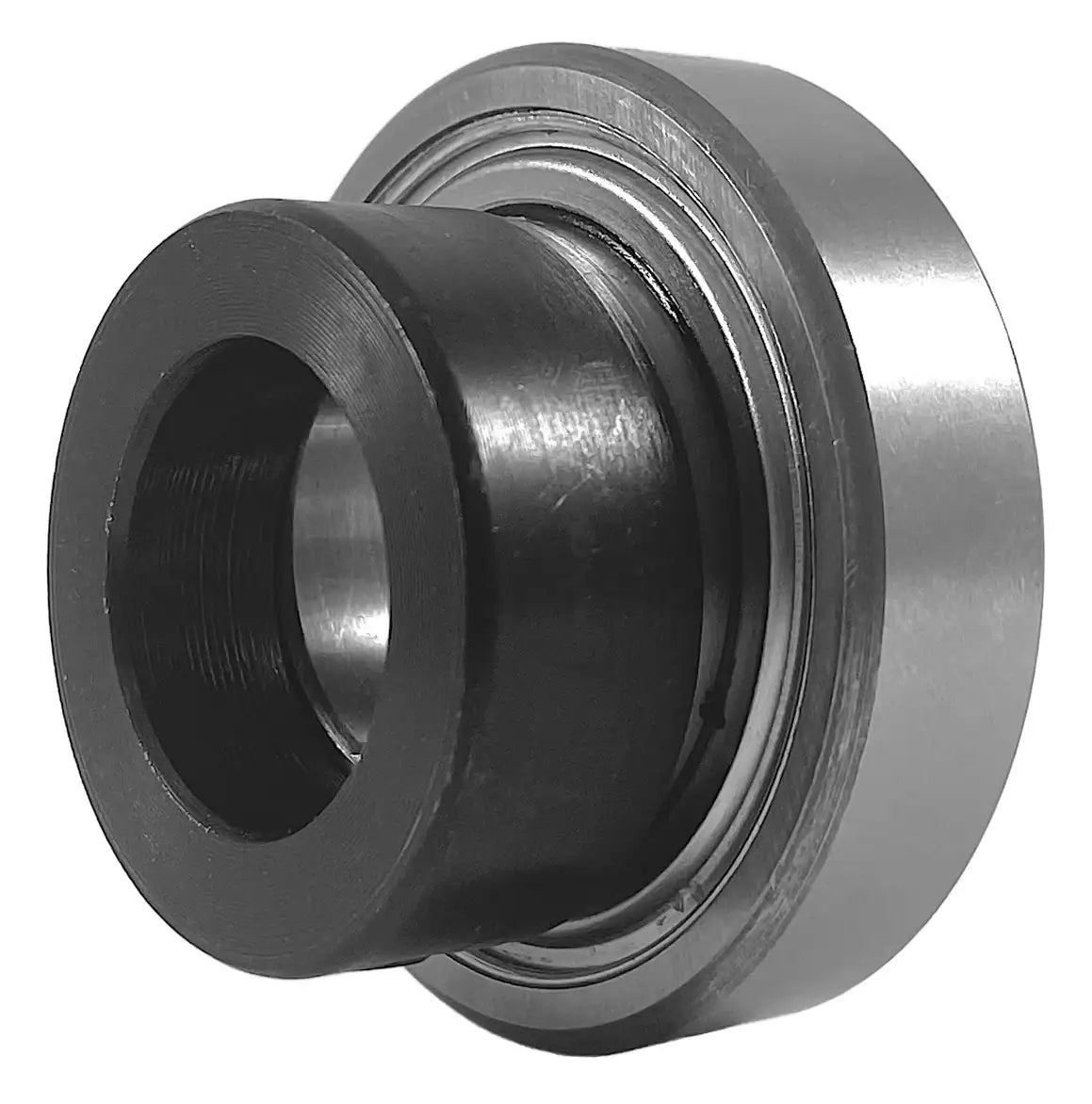

CSA208 bearing is a light-duty ball bearing insert made to C3 precision standards and utilizes an eccentric locking collar to secure to a 40mm shaft. Our CSA208 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our CSA208 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our CSA208 bearings, contact our customer service and, we will be happy to assist you!
CSA208 Bearing Dimensions
- Part #: CSA 208
- Shaft Diameter (d): 40mm
- Setscrew Used: M8 x 1
- Dimension (D): 80.0mm
- Dimension (Bi): 43.7mm
- Dimension (Be): 18.0mm
- Dimension (N): 9.0mm
- Dimension (M): 21.2mm
- Dimension (W): 60.3mm
- Dimension (K): 18.3mm
- Dimension (G): 6.5mm
- Dimension (T): 6.0mm
- Dynamic Load Rating (kN): 29.51
- Static Load Rating (kN): 18.14
- Weight (kg): 0.8
- Part #: CSA 208
- Shaft Diameter (d): 40mm
- Setscrew Used: M8 x 1
- Dimension (D): 80.0mm
- Dimension (Bi): 43.7mm
- Dimension (Be): 18.0mm
- Dimension (N): 9.0mm
- Dimension (M): 21.2mm
- Dimension (W): 60.3mm
- Dimension (K): 18.3mm
- Dimension (G): 6.5mm
- Dimension (T): 6.0mm
- Dynamic Load Rating (kN): 29.51
- Static Load Rating (kN): 18.14
- Weight (kg): 0.8
