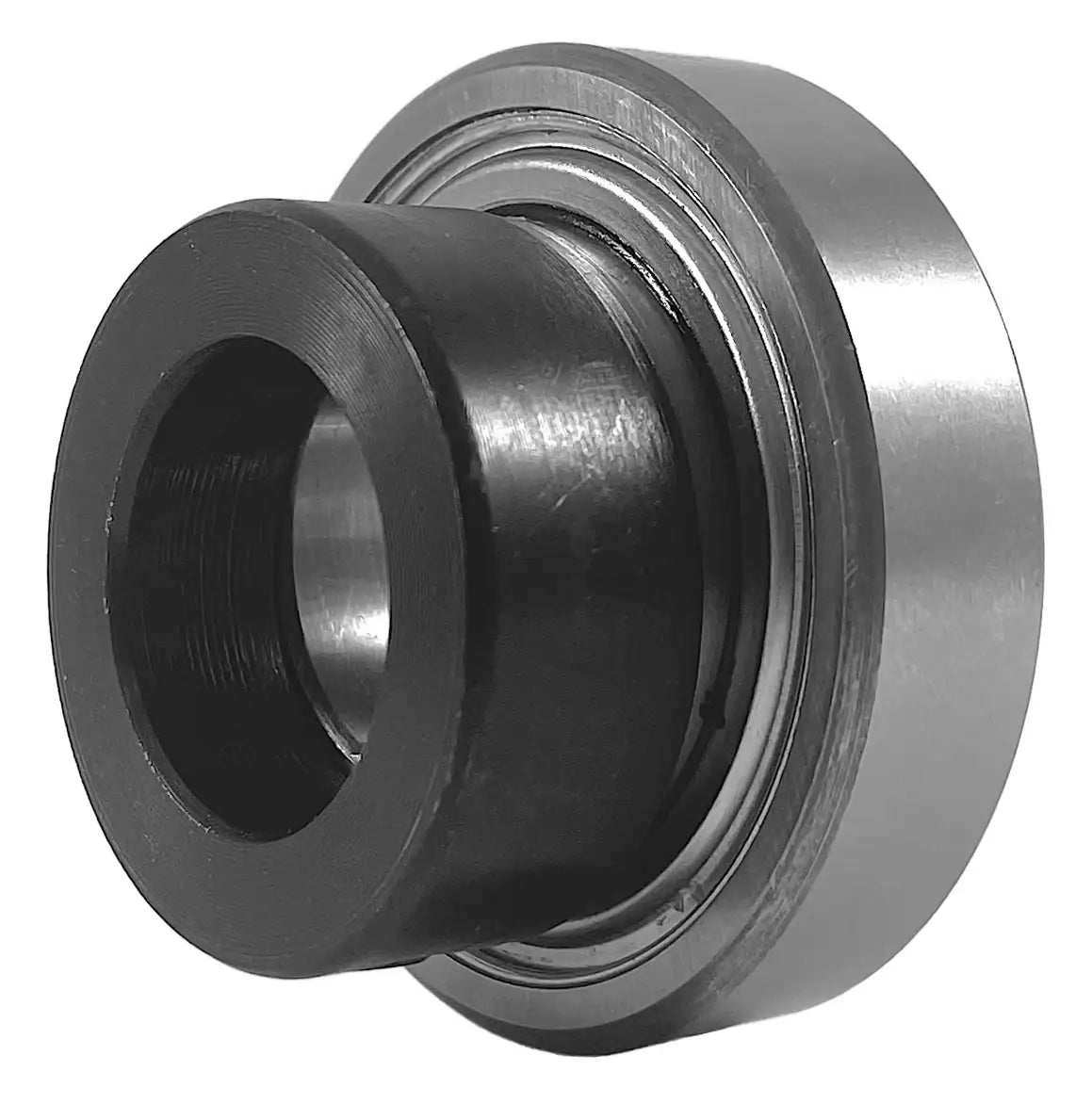

CSA201 Insert Bearing | 12mm Insert Bearing
SKU: 2278-CSA-201-BEARING
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
CSA201 Insert Bearing | 12mm Insert Bearing Description/Features
CSA201 Insert Bearing | 12mm Insert Bearing Specifications
CSA201 bearing is a light-duty ball bearing insert made to C3 precision standards and utilizes an eccentric locking collar to secure to a 12mm shaft. Our CSA201 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our CSA201 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our CSA201 bearings, contact our customer service and, we will be happy to assist you!
CSA201 Bearing Dimensions
- Part #: CSA 201
- Shaft Diameter (d): 12mm
- Setscrew Used: M6 x 1
- Dimension (D): 40.0mm
- Dimension (Bi): 28.6mm
- Dimension (Be): 12.0mm
- Dimension (N): 6.0mm
- Dimension (M): 13.1mm
- Dimension (W): 28.6mm
- Dimension (K): 13.5mm
- Dimension (G): 5.0mm
- Dimension (T): 3.5mm
- Dynamic Load Rating (kN): 9.55
- Static Load Rating (kN): 4.78
- Weight (kg): 0.2
- Part #: CSA 201
- Shaft Diameter (d): 12mm
- Setscrew Used: M6 x 1
- Dimension (D): 40.0mm
- Dimension (Bi): 28.6mm
- Dimension (Be): 12.0mm
- Dimension (N): 6.0mm
- Dimension (M): 13.1mm
- Dimension (W): 28.6mm
- Dimension (K): 13.5mm
- Dimension (G): 5.0mm
- Dimension (T): 3.5mm
- Dynamic Load Rating (kN): 9.55
- Static Load Rating (kN): 4.78
- Weight (kg): 0.2
