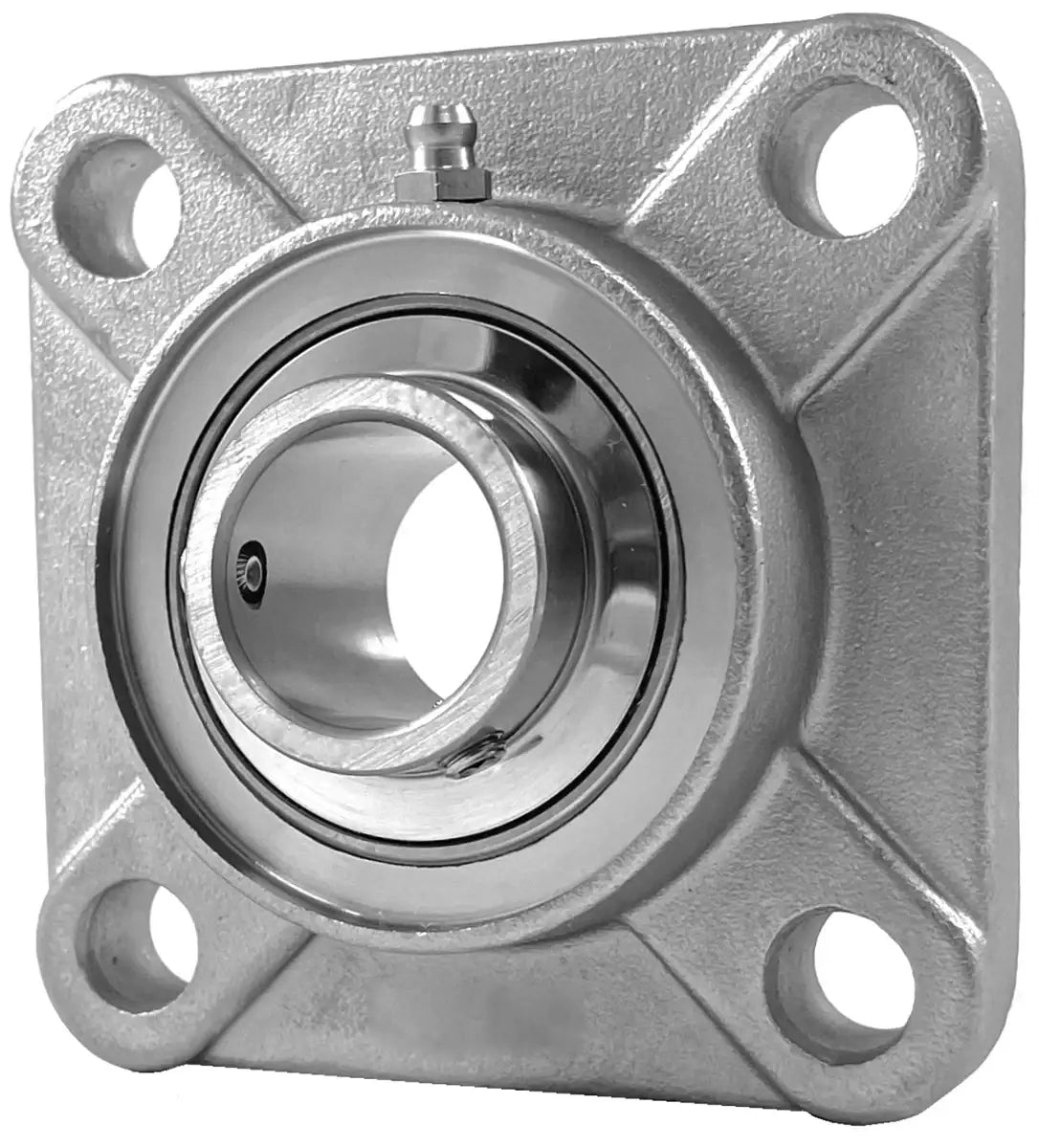

SNCSFM201-8 Stainless Steel Bearing | 1/2" 4-Bolt Bearing

This high-quality stainless steel SNCSFM201-8 4-bolt flange bearing with a 1/2" inside diameter is a normal duty flange bearing with an eccentric locking collar manufactured from premium grades of stainless steel to class C3 precision accuracy tolerances by Mariner. The eccentric locking collar makes it an easy task for securing the bearing onto the shaft Having a four-bolt flange mounted bearing means that there are four points for securing the bearing onto a surface, this creates optimal holding power between the bearing and the surface as well as stability. It's designed to run in food grade and highly corrosive or abrasive applications and to handle daily washdowns. The bearings superior design features put this bearing above others in terms of durability and performance. More specifically, this SNCSFM201-8 bearing utilizes a solid base design that eliminates crevices where contaminants like to hide and adds strength to the unit over bearings without a solid base. It also ships with a 25-35% fill of premium Mobil FM222 grease. It features an outer ring anti-rotation device that allows for alignment correction without internal binding and prevents bearings from spinning within the housing, drastically increasing the unit's overall life. Mariner stainless steel mounted bearings also use investment cast housings that are much smoother and superior to the industry standard sand-cast housing and make cleanings much more effective. Additionally, the bearing unit features a high-quality food-grade 100% silicone housing that is capable of handling higher operating temperatures than the standard nitrile seals; it also has an external flinger to prevent seal damage from washdown and keeps contaminants away from internal components, the bearing is also machined for use with end caps. For pricing and availability or additional information on stainless steel SNCSFM201-8 1/2" bearings contact our customer service team, and we will be happy to assist you!

SNCSFM201-8 Bearing Materials

• Housing - AISI 304 Stainless Steel
• Bearing Races - AISI 440C Stainless Steel
• Balls - AISI 440C Stainless Steel
• Flinger - AISI 302 Stainless Steel

SNCSFM201-8 Bearing Dimensions

• Bearing Part #: SNCSFM 201-8
• Shaft Diameter (d): 1/2
• Dimension (A): 3.38"
• Dimension (E): 2.500"
• Dimension (I): 0.59"
• Dimension (G): 0.47"
• Dimension (L): 1.00"
• Dimension (S): 0.47"
• Dimension (Z): 1.64"
• Dimension (Bi): 1.5472"
• Dimension (N): 0.5000"
• Dimension (M): 0.6732"
• Bolt Used: 3/8"
• Dynamic Load Rating: 2,331 LBS
• Static Load Rating: 1,142 LBS
• Bearing Insert: SNC 201-8
• Housing Size: SFM 204
• Weight: 1.8 LBS
