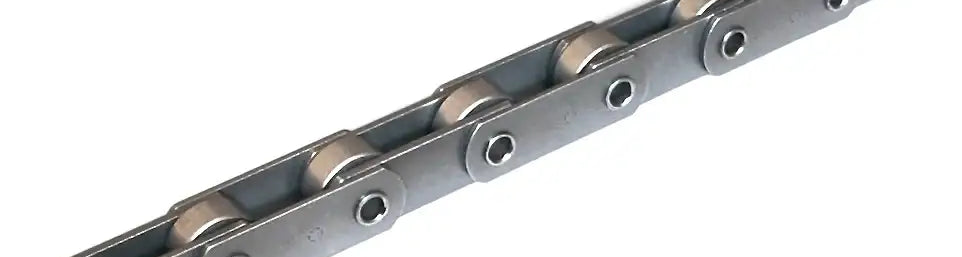

MC224A300 Hollow Pin Chain | MC224A300 Chain

Name: MC224A300 Hollow Pin Chain | MC224A300 Chain
Brand: USA ROLLER CHAIN
SKU: 2224-MC224A300-CHAIN
Availability: InStock

Note: This Chain Typically Takes 12-14 Weeks to Manufacture But Expediting Options Available

SKU: 2224-MC224A300-CHAIN

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Carbon Steel Chains

Features	General Duty Plus	Economy Plus
Solid Bushings	Split Bushings in most cases	Split Bushings
Solid Rollers
Through-Hardened Pins	Case-Hardened Pins	Heat-Treated Pins
Case-Hardened Rollers		Heat-Treated in Some Chains
Case-Hardened Bushings		Heat-Treated in Some Chains
Wide Contour Plates	Standard Contour Plates	Standard Contour Plates
Superior Pin to Plate Contact
High-Hold Riveting	Standard Dual-Stake Rivets	Standard Dual-Stake Rivets
Factory Pre-Loading		Not Standard on Economy Chains
Specific Heat-Treatment on Every Component		Some Components Might be Heat-Treated
Premium Alloy & Carbon Materials	High-Quality Carbon Materials	Standard-Quality Carbon Materials
Shot-Peened Components	Non Shot-Peened Components	Non Shot-Peened Components
High-Precision Components	Standard Precision Components	Low Precision Components
Conforms to ANSI B29.1 or ISO/DIN Standards

Request a Quote

Call to order

Don’t see what you need? In a rush?

Call us!

Buy it With:

TRIPAK Deep Blue Chain Conditioner $14.79

MC224A300 Hollow Pin Chain | MC224A300 Chain Description/Features

MC224A300 Hollow Pin Chain | MC224A300 Chain Specifications

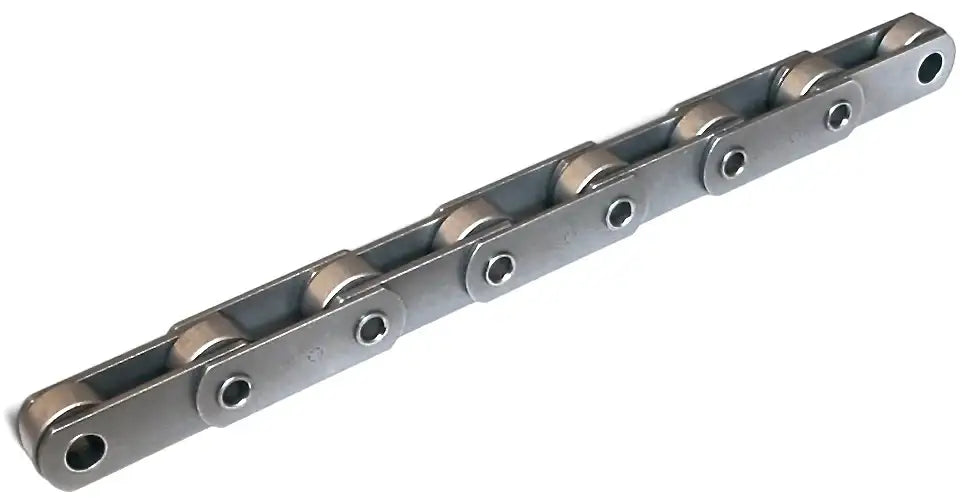

MC224A300 hollow pin chain is manufactured to ISO 1977 and DIN 8167 dimensional standards. The hollow pin design makes it possible to affix attachments through the hollow pin and even assemble cross sectional bars for parallel conveying systems. Our MC224A300 chain is made from high-quality steel alloys and we also supply a heat treated hardened pin type for heavy-duty applications. Hollow pin conveyor chains are found anywhere from lumber applications to pan conveyor applications, we also supply complete pan conveyor assemblies and MC224A300 sprockets. We also recommend using a chain lubricant to extend the working life and to get the optimal performance form your chain. For additional information or to get a quote please contact us and we will be happy to assist you.
