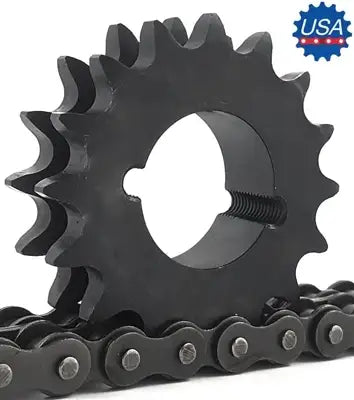

20BTB35 Sprocket (Taper Bushed)
SKU: 20BTB35-SPROCKET
Only 0 left in stockItem is out of stock
Item is unavailable
20BTB35 Sprocket (Taper Bushed) Features
20BTB35 Sprocket (Taper Bushed) Specifications
This 20BTB35 sprocket is a metric taper bushed style roller chain sprocket manufactured under ISO and British Standard 228. and is made to accept a 3020 taper bushing. Our 20BTB35 sprockets are made with reliability and performance in mind, so we use high-quality carbon steel (CS) and have the sprocket precision cut to ensure maximum performance and wear life. We also offer upgrades on our 20BTB35 sprockets such as black-oxide coatings and heat-treated hardened teeth, though hardened tooth sprockets are typically not utilized on tooth counts past 30. Besides the 35 tooth sprocket, we also stock a high-quality 20B roller chain, 3020 bushing, and a wide array of roller chain accessories. For more information or to get a quote on taper bushed 20BTB35 sprockets, please contact us and one of our sales team members will be happy to assist you.
20BTB35 Sprocket Dimensions
- Sprocket Size: 20BTB35
- Tooth Count: 35
- Pitch Diameter: 354.20mm
- Bushing Size: 3020
- Maximum Bushing Bore Size: 76.20mm
- Length Thru Bore (L): 50.80mm
- Hub Diameter (C): 133.35mm
- Sprocket Weight: 13.15 kG
- Bushing Weight: 2.95 kG
- Sprocket Size: 20BTB35
- Tooth Count: 35
- Pitch Diameter: 354.20mm
- Bushing Size: 3020
- Maximum Bushing Bore Size: 76.20mm
- Length Thru Bore (L): 50.80mm
- Hub Diameter (C): 133.35mm
- Sprocket Weight: 13.15 kG
- Bushing Weight: 2.95 kG
