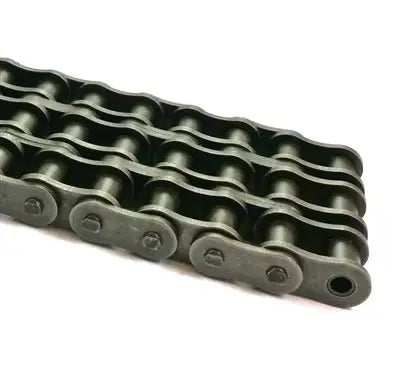

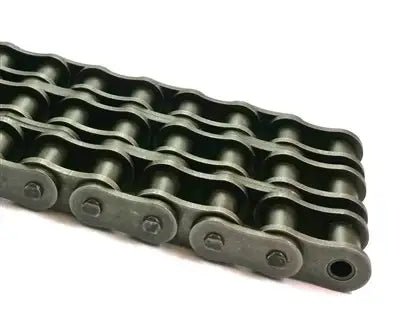

20A-3 Roller Chain - 10ft Box
Note:
Se Habla Espanol
SKU: 20A-3-CHAIN-10FT
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
20A-3 Roller Chain - 10ft Box Description/Features
20A-3 Roller Chain - 10ft Box Specifications
This 20A-3 triplex roller chain is manufactured dimensionally to ANSI B29.1 and ISO standards, so it directly interchanges with other ANSI, DIN, and ISO certified chains. Though dimensionally equivalent this chain exceeds in strength, performance, and durability. Additionally, this 20A-3 roller chain is manufactured using heat-treated precision components, features a solid roller design for increased performance, and is supplied with a high-quality lubricant applied to the chain from the factory. For additional information or if you need assistance, please contact us, and we will be happy to assist you.
20A-3 Roller Chain Dimensions
- ISO Chain #: 20A-3
- ANSI Equivalent #: 100-3
- Pitch (P): 31.750mm
- Roller Diameter (D): 19.05mm
- Width Between Inner Plates (W): 18.90mm
- Pin Diameter (E): 9.53mm
- Pin Length (L): 112.2mm
- Connecting Link Pin Length (A): 116.3mm
- Inner Plate Height (H): 30.00mm
- Plate Thickness (T): 4.00mm
- Transversal Pitch (V): 35.76mm
- Average Tensile Strength: 309.6 kN
- Weight Per Meter: 11.77 KG
- ISO Chain #: 20A-3
- ANSI Equicvelnt #: 100-3
- Pitch (P): 31.750mm
- Roller Diameter (D): 19.05mm
- Width Between Inner Plates (W): 18.90mm
- Pin Diameter (E): 9.53mm
- Pin Length (L): 112.2mm
- Connecting Link Pin Length (A): 116.3mm
- Inner Plate Height (H): 30.00mm
- Plate Thickness (T): 4.00mm
- Transversal Pitch (V): 35.76mm
- Average Tensile Strength: 309.6 kN
- Weight Per Meter: 11.77 KG
