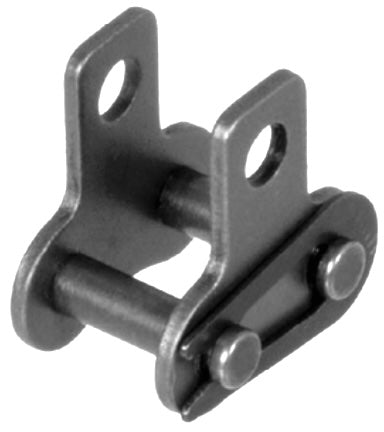

Metric 20B SK1 Attachment Connecting Link
Note:
Custom Cut to Length Chain Also Available
SKU: 20B-SK1-ATTACHMENT-LINK
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Metric 20B SK1 Attachment Connecting Link Features
Metric 20B SK1 Attachment Connecting Link Specifications
Our superior 20B SK1 attachment connecting link is designed explicitly for metric 31.75mm pitch 20B chain and conforms to ISO and DIN dimensional standards for direct interchangeability. Each precision component of this 20B SK1 attachment is made from top-quality carbon steel that has been heat-treated for extended working life and durability. We supply this attachment as a standard connecting link (master link) or assembled onto the 20B roller chain in specific increments. Design-wise, the 20B SK1 attachment has a straight tab on both sides with one hole each for mounting. For additional information or to get a quote on our 20B SK1 attachments, contact our customer service team, and we will gladly assist you.
20B SK1 Attachment Dimensions
- Part #: 20B SK1
- Configuration: Straight One Hole on Both Sides
- Pitch (P): 31.75mm
- Inner Width (B1): 19.56mm
- Roller Link Width (B2): 29.00mm
- Roller Diameter (D1): 19.05mm
- Plate Height (G): 26.4mm
- Attachment Width (M): 35.0mm
- Attachment Hole I.D. (DL): 9.00mm
- Dimension (F): 30.5mm
- Dimension (H): 45.7mm
- Plate Thickness (S): 3.50mm
- Part #: 20B SK1
- Configuration: Straight One Hole on Both Sides
- Pitch (P): 31.75mm
- Inner Width (B1): 19.56mm
- Roller Link Width (B2): 29.00mm
- Roller Diameter (D1): 19.05mm
- Plate Height (G): 26.4mm
- Attachment Width (M): 35.0mm
- Attachment Hole I.D. (DL): 9.00mm
- Dimension (F): 30.5mm
- Dimension (H): 45.7mm
- Plate Thickness (S): 3.50mm
