1934 Chain

Specialty Chain > Engineering Class Chains > More Engineer Class Chains > Cast Alloy Drag Chain

1934 Chain

Note: Custom Cut to Length Chain Also Available
SKU: 1934-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714186510703" , "metafield_value":""}]
1934 Chain Features
1934 Chain Specifications

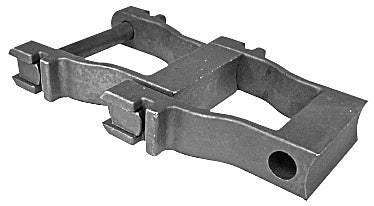

1934 Chain is considered a cast alloy drag chain and features an ultimate strength of 73,850 LBS. This 1934 cast alloy drag chain is extremely high-strength, heavy duty, and anti abrasive due to the common applications it is placed in. Besides the chain we also have a full line of 1934 sprockets, motors, gear boxes, bearings, and more. For more information or to get pricing and availability please contact us and we will be happy to assist you.

Dimensions:
1934 Chain
  • Chain Size: 1934
  • Style: 2
  • Pitch (A): 6.00"
  • Weight: 15.2 LBS/ FT
  • Weight Per Pin: 2.0 LBS
  • Average Ultimate Strength: 73,850 LBS
  • Recommended Working Load: 9,300 LBS
  • Barrel Length (B): 5.31"
  • Sidebar Width (C): 1.56"
  • Pin Diameter (D): 0.75"
  • Maximum Sprocket Width (E): 4.13"
  • Maximum Overall Average Width (F): 7.50"
  • Pin Head to Center Line (G): 3.69"
  • Pin End to Center Line (H): 3.81"

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Chain Size: 1934
  • Style: 2
  • Pitch (A): 6.00"
  • Weight: 15.2 LBS/ FT
  • Weight Per Pin: 2.0 LBS
  • Average Ultimate Strength: 73,850 LBS
  • Recommended Working Load: 9,300 LBS
  • Barrel Length (B): 5.31"
  • Sidebar Width (C): 1.56"
  • Pin Diameter (D): 0.75"
  • Maximum Sprocket Width (E): 4.13"
  • Maximum Overall Average Width (F): 7.50"
  • Pin Head to Center Line (G): 3.69"
  • Pin End to Center Line (H): 3.81"
