18X64 Half Shackle | Round Link Half Shackle - Type 0
Note:
Custom Cut to Length Chain Also Available
SKU: 18X64-HALF-SHACKLE
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
18X64 Half Shackle | Round Link Half Shackle - Type 0 Features
18X64 Half Shackle | Round Link Half Shackle - Type 0 Specifications
Our type-0 18X64 half shackle is made from high-quality steel to precision tolerances to ensure optimal performance, wear life, and strength. This specific half shackle is particularly made for a 18X64 round link chain and features two bolt holes for hardware. It is important to note that when installing a 18X64 half shackle, dimension C below should not be reduced by more than 0.020". For additional information or to get a quote on our 18X64 half shackles, contact our customer support team, and we will gladly assist you!

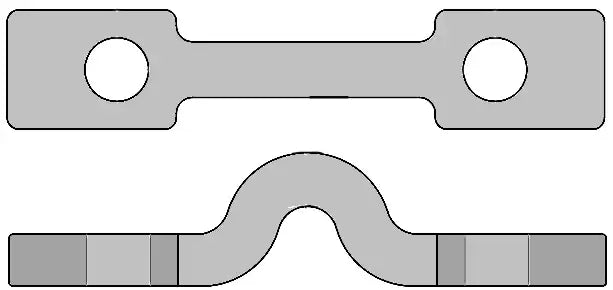

18X64 Half Shackle Type 0 Dimensions
- Chain Size: 18X64
- Type: 0
- Bolts: 2
- Dimension (D): 1.41"
- Dimension (C): 4.44"
- Dimension (B): 6.88"
- Dimension (A-Bolt): 0.63"
- Dimension (G): 1.00"
- Dimension (E): 0.72"
- Dimension (F): 0.72"
- Weight: 1.98 LBS
- Chain Size: 18X64
- Type: 0
- Bolts: 2
- Dimension (D): 1.41"
- Dimension (C): 4.44"
- Dimension (B): 6.88"
- Dimension (A-Bolt): 0.63"
- Dimension (G): 1.00"
- Dimension (E): 0.72"
- Dimension (F): 0.72"
- Weight: 1.98 LBS
