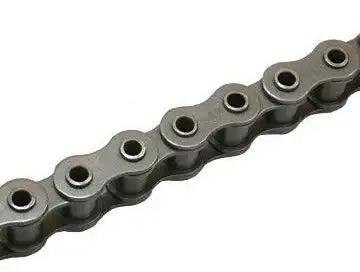

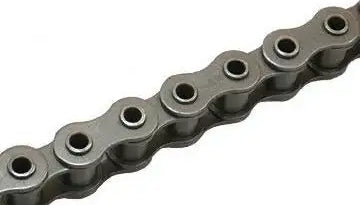

Metric 16B Hollow Pin Roller Chain - 10ft Box

16B hollow pin roller chain is a 25.40mm pitch metric chain manufactured per ISO and British Standards. The unique design of the hollow pin allows for articles to be affixed to the chain through the hollow pin. 16BHP chain is commonly used in bakeries, packaging, conveyors, elevators, and more. Conforming to ISO standards means that this chain directly interchanges with other brands while also having the ability to operate on standard 16B sprockets; it is essential to note that the inside diameter of our 16B hollow pin is 8.33mm. What sets our 16B hollow pin roller chain apart from others is the use of high-precision components made from superior grades of alloy and carbon steel that have been heat treated and shot peened, with the addition of a factor pre-load done to the chain. The combination of all creates an 16B hollow pin chain that is more capable and has an extended lifespan compared to others. For additional information or a quote on our premium 16B hollow pin chain, contact our customer service team; we will be happy to assist you!

16B Hollow Pin Chain Dimensions

• Part #: 16BHP
• Pitch (P): 25.40mm
• Inside Width (R): 17.02mm
• Roller Diameter (D): 15.88mm
• Overall Width (W): 36.10mm
• Plate Height (H): 20.50mm
• Hollow Pin I.D. (U): 8.33mm
• Hollow Pin O.D. (L): 11.61mm
• Minimum Breaking Load: 3,340 KGS
• Weight: 2.28 kG/ m
