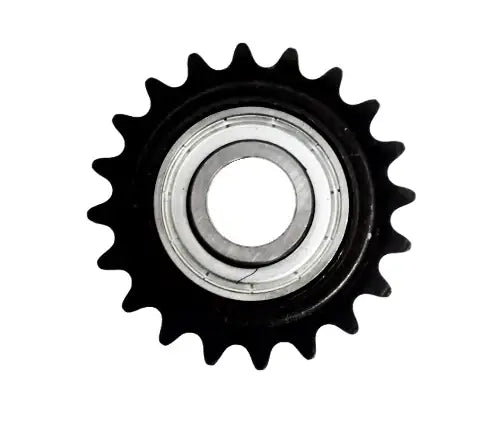

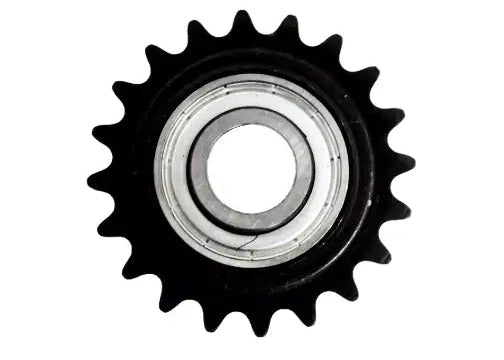

16BB12 Idler Sprocket With 20mm Bore
Note:
Custom Cut to Length Chain Also Available
SKU: 16BB12-IDLER-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
16BB12 Idler Sprocket With 20mm Bore Features
16BB12 Idler Sprocket With 20mm Bore Specifications
16BB12 Idler Sprocket With 20mm Bore is manufactured for 16B roller chain and utilizes a premium-grade ball bearing as the idler component. Idler sprockets are utilized in most conveying systems and tensioning systems. We also offer other configurations of this 16BB12 idler sprocket such as different bore sizes, and tooth counts. For more information or to get a quote please contact us and we will be happy to assist you.
16BB12 Idler Sprocket Dimensions
- Sprocket Size: 16BB12
- Tooth Count: 12
- Chain Size: 16B-1
- Pitch: 25.4mm
- Dimension (OD): 98.1mm
- Dimension (N): 109.0mm
- Dimension (T): 16.2mm
- Dimension (ID): 20mm
- Dimension (BD): 47mm
- Dimension (H): 17.7mm
- Dimension (L): 14mm
- Sprocket Weight: 0.65 kG
- Sprocket Size: 16BB12
- Tooth Count: 12
- Chain Size: 16B-1
- Pitch: 25.4mm
- Dimension (OD): 98.1mm
- Dimension (N): 109.0mm
- Dimension (T): 16.2mm
- Dimension (ID): 20mm
- Dimension (BD): 47mm
- Dimension (H): 17.7mm
- Dimension (L): 14mm
- Sprocket Weight: 0.65 kG
