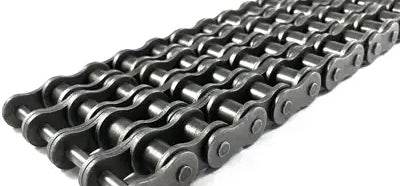

Quad-Strand Metric 16B-4 Roller Chain - 10ft Box
Login to Request a Quote

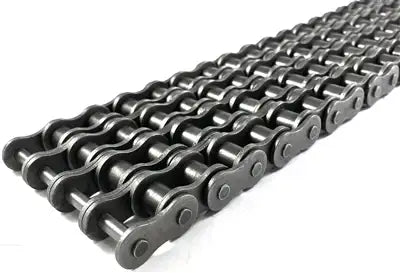

16B-4 roller chain is a metric quad-strand chain with a 25.40mm pitch made per ISO and British Standards. Our superior 16B-4 chain is capable of operating within some of the most demanding applications around the world. Specifically, the chain is assembled using precision carbon and alloy steel components that have undergone heat treatment and shot-peening processes. Post assembly, the 16B-4 roller chain is pre-loaded to a specific amount to reduce initial and long-term elongation. We supply 16B-4 roller chains in lengths of 10ft, including one connecting link per box. Additionally, we offer 16B-4 chain sprockets and chain tools. For more information or to get a quote on our tier one 16B-4 roller chain, contact our customer support team, and we will be happy to assist you!
16B-4 Chain Dimensions
- Part #: 16B-4
- Pitch (P): 25.40mm
- Roller Width (R): 17.02mm
- Roller Diameter (D): 15.88mm
- Overall Width (W): 132.90mm
- Connecting Link Overall Width (X): 138.30mm
- Plate Height (H): 21.00mm
- Plate Thickness (T): 3.99mm
- Pin Diameter (L): 8.28mm
- Minimum Breaking Load: 30,000 KGS
- Weight: 10.39 kG/ m
- Part #: 16B-4
- Pitch (P): 25.40mm
- Roller Width (R): 17.02mm
- Roller Diameter (D): 15.88mm
- Overall Width (W): 132.90mm
- Connecting Link Overall Width (X): 138.30mm
- Plate Height (H): 21.00mm
- Plate Thickness (T): 3.99mm
- Pin Diameter (L): 8.28mm
- Minimum Breaking Load: 30,000 KGS
- Weight: 10.39 kG/ m
