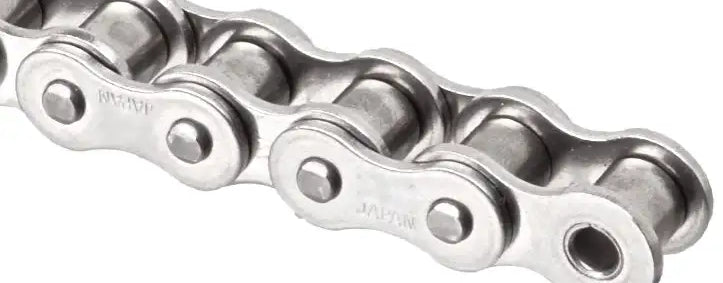

Metric 16B Stainless Steel Roller Chain - 10ft Box
Login to Request a Quote
Our superior 16B stainless steel roller chain combines precision top-grade 304SS components, industry-leading manufacturing techniques, and excellent corrosion resistance. This 16B stainless steel roller chain also conforms dimensional to ISO and British Standards (BS) for direct interchangeability with other brands. Each 10ft box of our 16BSS chain is supplied with a connecting link (master link) for installing with different sections or looping the chain. Additionally, we provide sprockets and chain tools to accompany your 16B stainless steel roller chain. With a pitch of 25.4mm, the 16B stainless chain is highly versatile and operates within a broad range of applications. For additional information or a quote on our high-quality 16B stainless steel roller chain, contact our customer support team, and we will gladly assist you!
16B Stainless Roller Chain Dimensions
- Part #: 16B
- Pitch (P): 25.40mm
- Roller Width (R): 17.02mm
- Roller Diameter (D): 15.88mm
- Overall Width (W): 36.10mm
- Connecting Link Overall Width (X): 41.50mm
- Plate Height (H): 21.00mm
- Plate Thickness (T): 3.99mm
- Pin Diameter (L): 8.28mm
- Weight: 2.7 kG/ m
- Part #: 16B
- Pitch (P): 25.40mm
- Roller Width (R): 17.02mm
- Roller Diameter (D): 15.88mm
- Overall Width (W): 36.10mm
- Connecting Link Overall Width (X): 41.50mm
- Plate Height (H): 21.00mm
- Plate Thickness (T): 3.99mm
- Pin Diameter (L): 8.28mm
- Weight: 2.7 kG/ m
