Metric A2 Attachments

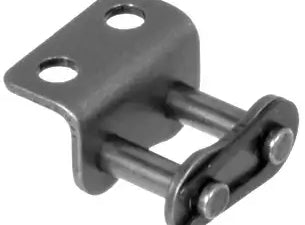

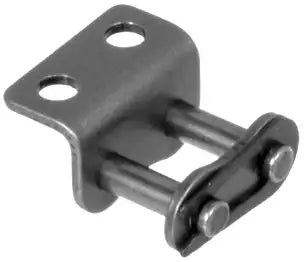

Metric 16B A2 Attachment Connecting Link
Note:
Custom Cut to Length Chain Also Available
$5.99
SKU: 16B-A2-ATTACHMENT-10800321
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Metric 16B A2 Attachment Connecting Link Features
Metric 16B A2 Attachment Connecting Link Specifications
Our superior 16B A2 attachment connecting link is designed explicitly for metric 25.4mm pitch 16B chain and conforms to ISO and DIN dimensional standards for direct interchangeability. Each precision component of this 16B A2 attachment is made from top-quality carbon steel that has been heat-treated for extended working life and durability. We supply this attachment as a standard connecting link (master link) or assembled onto the 16B roller chain in specific increments. Design-wise, the 16B A2 attachment has a bent tab on one side with two holes for mounting. For additional information or to get a quote on our 16B A2 attachments, contact our customer service team, and we will gladly assist you.
16B A2 Attachment Dimensions
- Part #: 16B A2
- Configuration: Bent Two Holes on One Side
- Pitch (P): 25.4mm
- Inner Width (B1): 17.02mm
- Roller Link Width (B2): 25.40mm
- Roller Diameter (D1): 15.88mm
- Plate Height (K): 21.0mm
- Attachment Width (M): 46.4mm
- Attachment Hole I.D. (DL): 6.6mm
- Dimension (G): 25.4mm
- Dimension (I): 25.4mm
- Dimension (F): 36.3mm
- Dimension (H): 15.9mm
- Plate Thickness (S): 3.1mm
- Part #: 16B A2
- Configuration: Bent Two Holes on One Side
- Pitch (P): 25.4mm
- Inner Width (B1): 17.02mm
- Roller Link Width (B2): 25.40mm
- Roller Diameter (D1): 15.88mm
- Plate Height (K): 21.0mm
- Attachment Width (M): 46.4mm
- Attachment Hole I.D. (DL): 6.6mm
- Dimension (G): 25.4mm
- Dimension (I): 25.4mm
- Dimension (F): 36.3mm
- Dimension (H): 15.9mm
- Plate Thickness (S): 3.1mm
