160R11H Sprocket (Taper Bushed)

160R11H Sprocket (Taper Bushed)

Note: Custom Cut to Length Chain Also Available
$262.99
$262.99
In Stock
On Sale Sold out
Product Code: 160R11H-SPROCKET
In Stock
Shipping calculated at checkout.

Login to Request a Quote

Other Customers Viewed
160 Roller Chain 10ft Box
160 Roller Chain 10ft Box
Login
General Duty Plus #160 Roller Chain - 10ft Box
General Duty Plus #160 Roller Chain - 10ft Box
$506.99
Login
Premium #160 Roller Chain - 10ft Box | Premier Series Chain
Premium #160 Roller Chain - 10ft Box | Premier Series Chain
$859.99
Login
View full details
Description
Specification

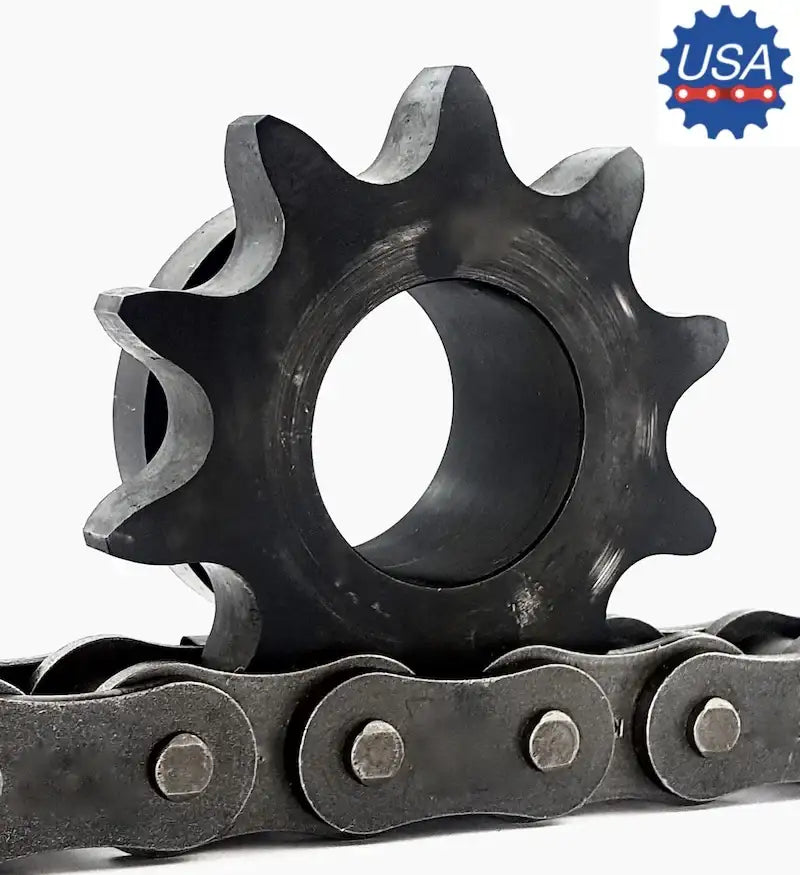

This 160R11H sprocket is a durable, high quality, and precision sprocket with 11 hardened teeth that is manufactured to accept a R1 bushing. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #160 roller chain and sprocket which prevents premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. 160R11H sprockets are bored to accept a R1 type taper bushing, which we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information or large inquiry request please contact us and we will be happy to assist you.

160R11H Sprocket Dimensions
  • Sprocket Size: 160R11H
  • Tooth Count: 11
  • Bushing Type: R1
  • Outside Diameter: 8.010"
  • Pitch Diameter: 7.099"
  • Sprocket Type: 4
  • Maximum Bore: 3-3/4"
  • Dimension (OL): 3-13/32"
  • Dimension (L): 2-7/8"
  • Dimension (C): 1/4"
  • Dimension (H): 5-3/8"
  • Dimension (P): 1-31/32"
  • Dimension (T): 1.156"
  • Bushing Weight: 7.5 LBS
  • Sprocket Weight: 10.8 LBS


Phone: (407) 347-3519
Email: sales@usarollerchain.com

Click Here To See Our Other Products!

Feature

  • Premium Quality Sprocket
  • Fully Meets All ANSI Standards
  • High Performance
  • Extremely Durable
  • Fully Black Oxide Coated
Featured image
  • Sprocket Size: 160R11H
  • Tooth Count: 11
  • Bushing Type: R1
  • Outside Diameter: 8.010"
  • Pitch Diameter: 7.099"
  • Sprocket Type: 4
  • Maximum Bore: 3-3/4"
  • Dimension (OL): 3-13/32"
  • Dimension (L): 2-7/8"
  • Dimension (C): 1/4"
  • Dimension (H): 5-3/8"
  • Dimension (P): 1-31/32"
  • Dimension (T): 1.156"
  • Bushing Weight: 7.5 LBS
  • Sprocket Weight: 10.8 LBS
