Premium 160KSR Roller Chain - 10ft Box

Roller Chain > More Roller Chains > Super Roller Chain > #160 Super High Strength Roller Chains

Premium 160KSR Roller Chain - 10ft Box

Note: Custom Cut to Length Chain Also Available
SKU: 160KSR-ROLLER-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714168979823" , "metafield_value":""}]
Premium 160KSR Roller Chain - 10ft Box Features
Premium 160KSR Roller Chain - 10ft Box Specifications

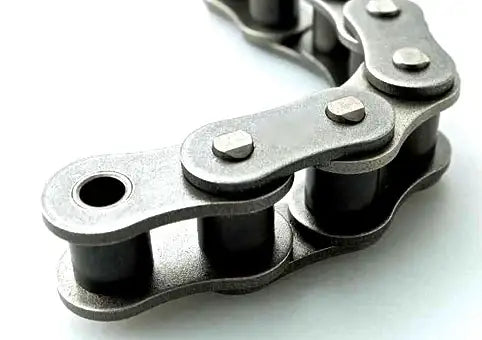

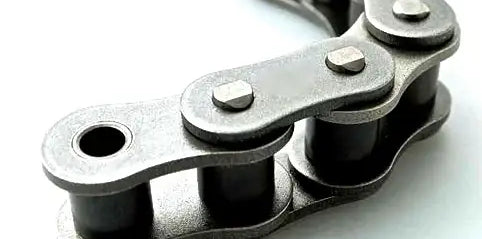

#160KSR roller chain is apart of the Super High Strength KSR series premium roller chains. This roller chain is manufactured using high-quality precision components to increase the working life, fatigue, and strength of the roller chain while still remaining within the dimensions of standard ANSI roller chain. KSR roller chains feature enlarged plates, improved machined parts accuracy and assembly, solid bushings and solid rollers. These features further increase the working life, strength, and efficiency over the K series chains throughout the entire low to high speed application spectrum. Additionally compared to standard roller chains, KSR series chains are higher in maximum horsepower rating by around 30% in a medium to low speed application. #160KSR chain also has a much better performance than other chains in applications where there are high shock loads, frequent starting and stopping, and in relatively high-speed applications such as; power shovels, trenchers, trucks, cranes, mixers, conveyors, elevators, stackers, and more. If you're needing a large quantity of #160KSR roller chain or need any additional information please contact us and we will be happy to assist you!

Dimensions:
Premium 160KSR Roller Chain - 10ft Box
  • Chain #: 160KSR
  • Pitch (P): 2.000"
  • Roller Diameter (D): 1.125"
  • Width Between Plates (W): 1.250"
  • Link Plate Height (H): 1.898"
  • Side Plate Thickness (T): 0.252"
  • Pin Diameter (E): 0.563"
  • Pin Length (L): 2.504"
  • Average Tensile Strength: 70,400 LBS
  • Maximum Recommended Working Load: 15,840 LBS
  • Weight Per Foot: 7.04 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com

See What All We Offer "Here"!
  • Chain #: 160KSR
  • Pitch (P): 2.000"
  • Roller Diameter (D): 1.125"
  • Width Between Plates (W): 1.250"
  • Link Plate Height (H): 1.898"
  • Side Plate Thickness (T): 0.252"
  • Pin Diameter (E): 0.563"
  • Pin Length (L): 2.504"
  • Average Tensile Strength: 70,400 LBS
  • Maximum Recommended Working Load: 15,840 LBS
  • Weight Per Foot: 7.04 LBS
